ADPL12005

RECOMMENDED FOR NEW DESIGNS

20V, 5A/6A Fully Integrated Synchronous Buck Converters

Analog Devices ADPL12005 Product Info

10 February 2026 7

Features

Multiple Functions for Small Size
- Operating V_IN Range of 3V to 20V
- 20μA Quiescent Current in Skip Mode
- Synchronous DC-DC Converter with Integrated Field-Effect Transistors (FETs)
- 400kHz and 1.5MHz Fixed-Frequency Options
- Internal Soft-Start
  - 2.5ms for 400kHz
  - 3.5ms for 1.5MHz
- Programmable Output Voltage
  - 0.8V to 12V for 400kHz
  - 0.8V to 10V for 1.5MHz

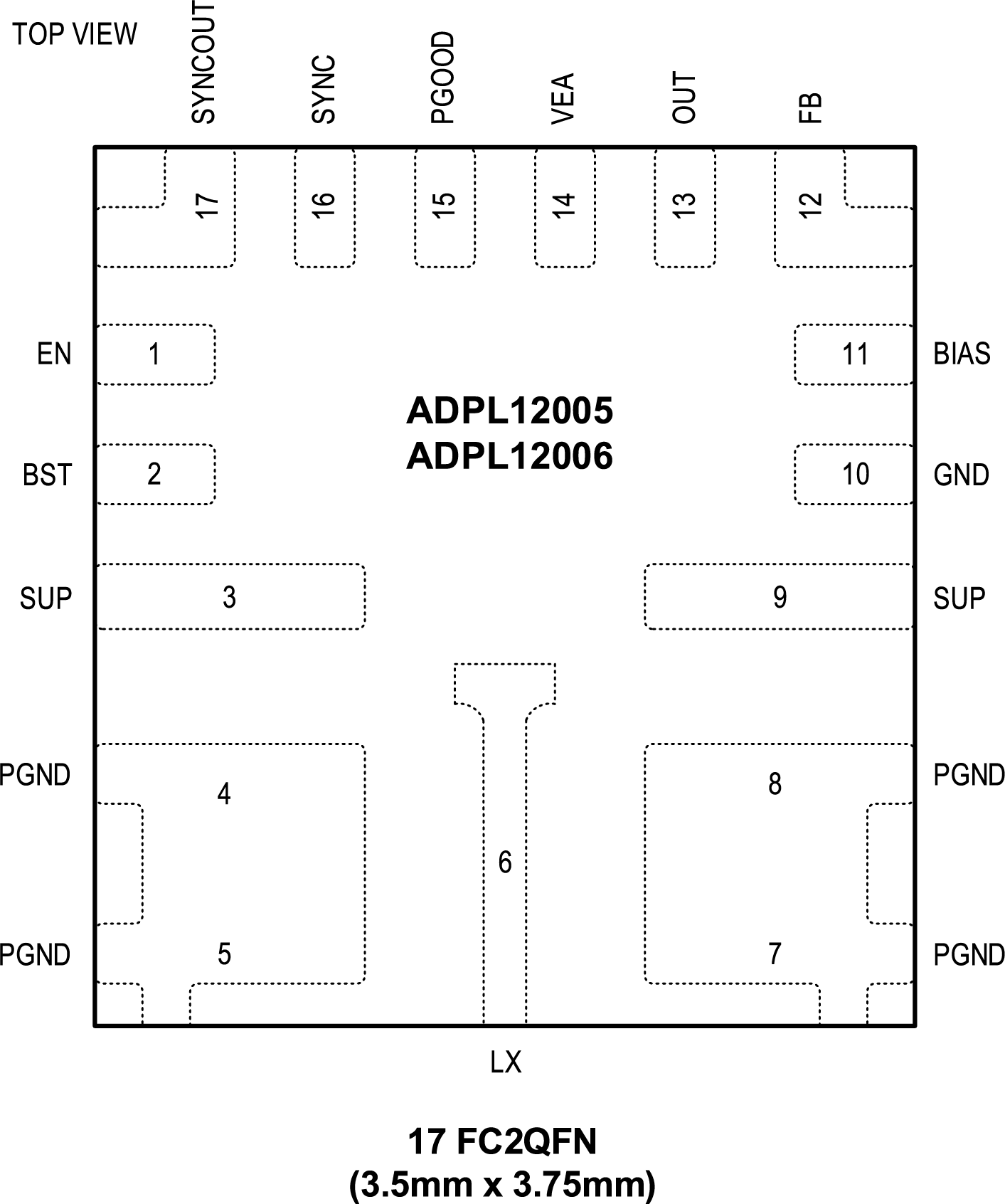

- 3.5mm x 3.75mm, 17-Pin FC2QFN
- Symmetrical Package Offers Superior Electromagnetic Interference (EMI) Performance

Dual Phase Capability
- Can be used in Dual-Phase Configuration for High-Power Design
- Dynamic Current Sharing through Shared VEA Pin
- Low-I_Q Operation Capability in Dual Phase
Precise Output Voltage Monitoring with PGOOD
Forced–Pulse-WidthModulation (PWM) and Skip-Mode Operation
Low Dropout Operation
Overtemperature and Short-Circuit Protection
-40°C to +150°C Operating Junction Temperature Range

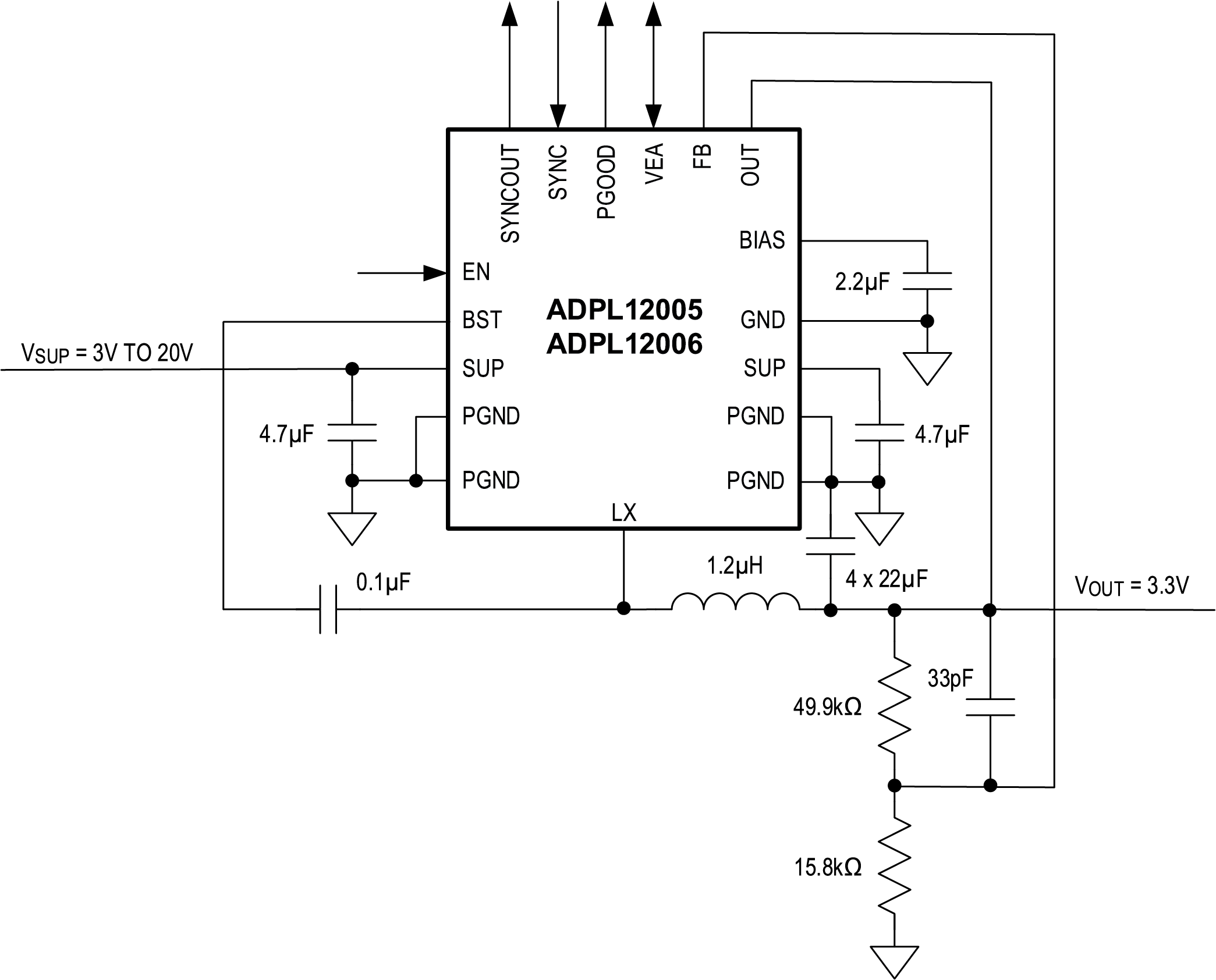

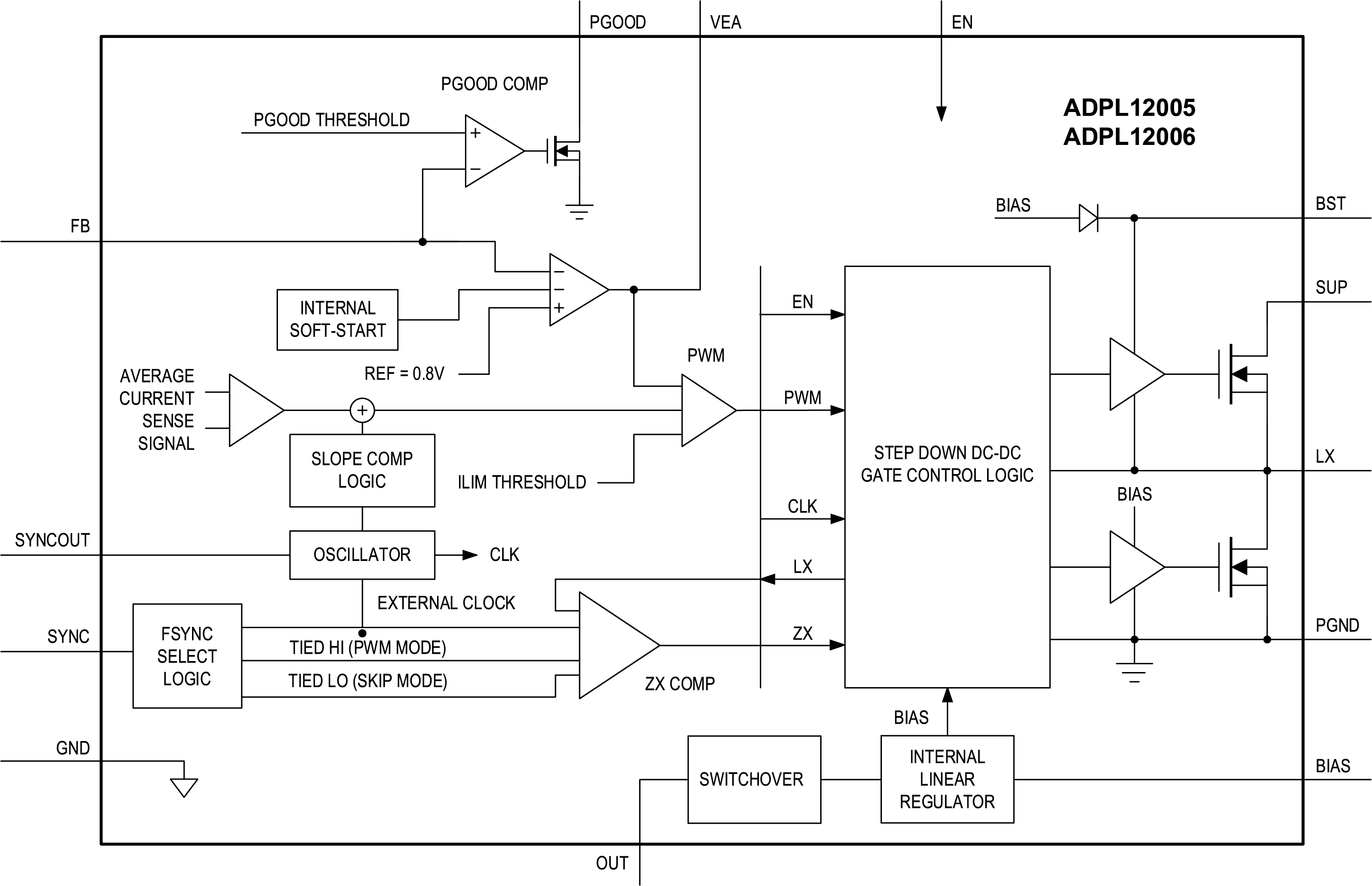

Part details & applications

The ADPL12005/ADPL12006 ICs are small, synchronous buck converters with integrated high-side and low-side switches. The ICs are designed to deliver up to 6A with wide input voltages ranging from 3V to 20V. Voltage quality can be monitored by observing the PGOOD signal. The ICs can operate in dropout by running at a very high duty cycle, making it ideal for factory automation applications.

The ADPL12005/ADPL12006 ICs offer programmable output voltage. The frequency is internally fixed at 400kHz and 1.5MHz, allowing for small external components and reduced output ripple. The ICs automatically enter skip mode at light loads with ultra-low quiescent current of 20μA at no load. This family of products (including the ADPL12008/ADPL12010) offers a pin-to-pin compatible offering from 5A to 10A in a single-phase configuration, and up to 20A in a dual-phase configuration. These devices are also optimized for dual-phase operation with very high current-sharing accuracy.

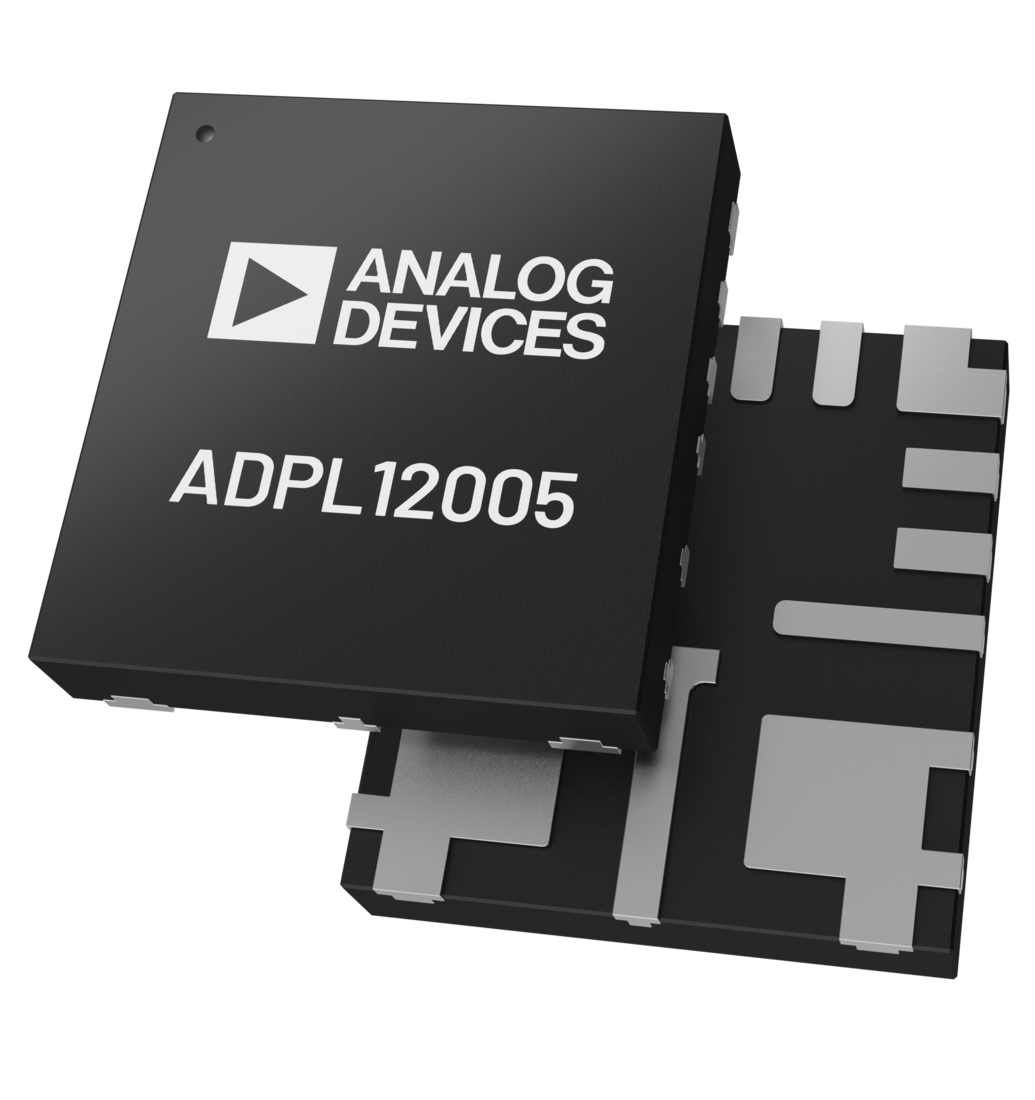

The ADPL12005/ADPL12006 ICs are available in a small 3.5mm x 3.75mm, 17-pin flip-chip quad flat no-lead (FC2QFN) package, utilizing very few external components.

APPLICATIONS

Factory Automation
Point-of-Load
Distributed DC Power Systems
Communication Infrastructure
Test and Measurement
