Analog Devices AD7851 Product Info

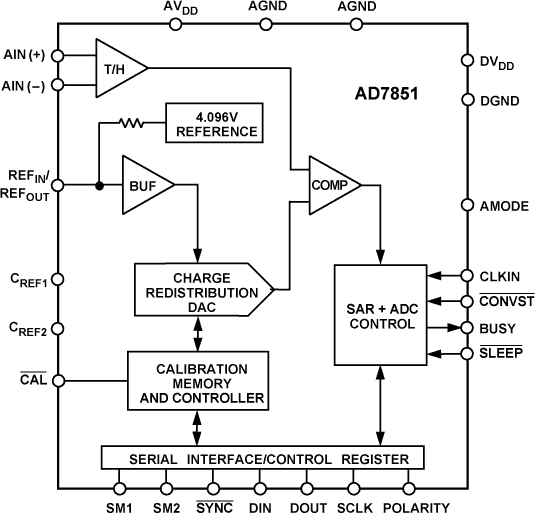

The AD7851 is a high speed, 14-bit ADC which operate from a single 5V power supply. The ADC powers-up with a set of default conditions at which time it can be operated as a read-only ADC. The ADC contains self-calibration and system calibration options to ensure accurate operation over time and temperature and has a number of power down options for low power applications.

The AD7851 is capable of 272kHz throughput rate. The input track-and-hold acquires a signal in 0.33 µs and features a pseudo-differential sampling scheme. The AD7851 has the added advantage of two input voltage ranges ( 0 to V_REF, and -V_REF/2 to +V_REF/2 centered about V_REF/2). Input signal range is to V_DD and the part is capable of converting full-power signals to 140 kHz.

CMOS construction ensures low power dissipation (60 mW typ) with power-down mode (5 µW typ). The part is available in 24- pin, 0.3 inch-wide dual-in-line package (DIP), 24 lead small outline (SOIC) and 24 lead small shrink outline (SSOP) packages.

PRODUCT HIGHLIGHTS

1. Single 5 V supply.
2. Operates with reference voltages from 4 V to V_DD.
3. Analog input ranges from 0 V to V_DD.
4. System and self-calibration including power-down mode.
5. Versatile serial I/O port.

APPLICATIONS

• Digital Signal Processing
• Speech Recognition and Synthesis
• Spectrum Analysis
• DSP Servo Control
• Instrumentation and Control Systems
• High Speed Modems
• Automotive
