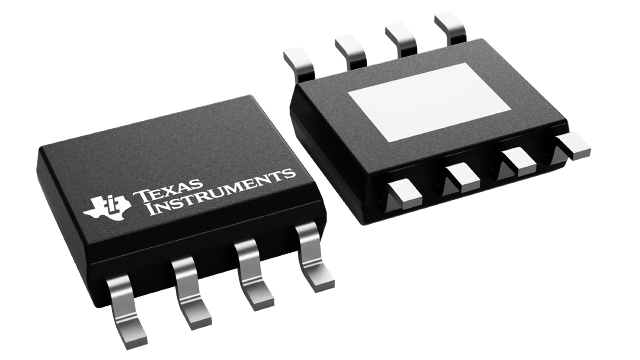

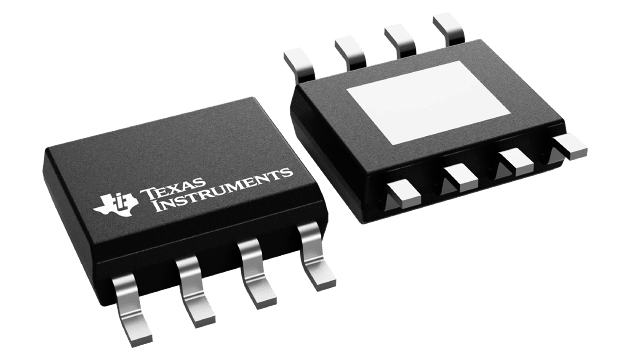

UCC27212A-Q1

ACTIVE

Automotive, 4-A , 120-V half bridge gate driver with 5-V UVLO

Texas Instruments UCC27212A-Q1 Product Info

1 April 2026 0

Parameters

Bootstrap supply voltage (max) (V)

120

Power switch

MOSFET

Input supply voltage (min) (V)

7

Input supply voltage (max) (V)

17

Peak output current (A)

4.5

Operating temperature range (°C)

-40 to 150

Undervoltage lockout (typ) (V)

5

Rating

Automotive

Propagation delay time (µs)

0.02

Rise time (ns)

7.2

Fall time (ns)

5.5

Iq (mA)

0.001

Input threshold

TTL

Channel input logic

TTL

Switch node voltage (V)

-20

Features

Integrated bootstrap diode, Negative Voltage Handling on Input

TI functional safety category

Functional Safety-Capable

Driver configuration

Dual inputs

Package

HSOIC (DDA)-8-29.4 mm² 4.9 x 6

Features

  • AEC-Q100 qualified for automotive applications: device temperature grade 1
  • –40°C to +150°C junction temperature range
  • 5V turn-off Under Voltage Lockout (UVLO)
  • Drives two N-channel MOSFETs in high-side and low-side configuration with independent inputs
  • Maximum boot voltage 120V DC
  • 3.7A source, 4.5A sink output currents
  • Input pins can tolerate –10V to +20V and are independent of supply voltage range
  • TTL compatible Inputs
  • 7V to 17V VDD operating range, (20V ABS maximum)
  • 7.2ns rise and 5.5ns fall time with 1000pF load
  • Fast propagation delay times (20ns typical)
  • 4ns typical delay matching
  • Available in the SOIC8 (PowerPAD) package
  • AEC-Q100 qualified for automotive applications: device temperature grade 1
  • –40°C to +150°C junction temperature range
  • 5V turn-off Under Voltage Lockout (UVLO)
  • Drives two N-channel MOSFETs in high-side and low-side configuration with independent inputs
  • Maximum boot voltage 120V DC
  • 3.7A source, 4.5A sink output currents
  • Input pins can tolerate –10V to +20V and are independent of supply voltage range
  • TTL compatible Inputs
  • 7V to 17V VDD operating range, (20V ABS maximum)
  • 7.2ns rise and 5.5ns fall time with 1000pF load
  • Fast propagation delay times (20ns typical)
  • 4ns typical delay matching
  • Available in the SOIC8 (PowerPAD) package

Description

The UCC27212A-Q1 device driver is based on the popular UCC27211 MOSFET drivers. In addition, UCC27212A-Q1 offers extended operating range all the way down to 5V which helps lower power losses.

The peak output pullup and pulldown current is 3.7A source and 4.5A sink. This allows for the ability to drive large power MOSFETs with minimized switching losses during the e Miller Plateau of the MOSFET.

The input structure can directly handle –10V, which increases robustness and also allows direct interface to gate-drive transformers without using rectification diodes. The inputs are also independent of supply voltage and have a 20V maximum rating.

The switching node of the UCC27212A-Q1 (HS pin) can handle –(24V – VDD) maximum, which allows the high-side channel to be protected from inherent negative voltages caused by parasitic inductance and stray capacitance. The UCC27212A-Q1 has increased hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity. The low-side and high-side gate drivers are independently controlled and matched to ns between the turn on and turn off of each other. An on-chip 120V rated bootstrap diode eliminates the external discrete diodes. Undervoltage lockout is provided for both the high-side and the low-side drivers which provides symmetric turn on and turn off behavior and forces the outputs low drive voltage is below the specified threshold.

The UCC27212A-Q1 device driver is based on the popular UCC27211 MOSFET drivers. In addition, UCC27212A-Q1 offers extended operating range all the way down to 5V which helps lower power losses.

The peak output pullup and pulldown current is 3.7A source and 4.5A sink. This allows for the ability to drive large power MOSFETs with minimized switching losses during the e Miller Plateau of the MOSFET.

The input structure can directly handle –10V, which increases robustness and also allows direct interface to gate-drive transformers without using rectification diodes. The inputs are also independent of supply voltage and have a 20V maximum rating.

The switching node of the UCC27212A-Q1 (HS pin) can handle –(24V – VDD) maximum, which allows the high-side channel to be protected from inherent negative voltages caused by parasitic inductance and stray capacitance. The UCC27212A-Q1 has increased hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity. The low-side and high-side gate drivers are independently controlled and matched to ns between the turn on and turn off of each other. An on-chip 120V rated bootstrap diode eliminates the external discrete diodes. Undervoltage lockout is provided for both the high-side and the low-side drivers which provides symmetric turn on and turn off behavior and forces the outputs low drive voltage is below the specified threshold.
