ACTIVE
Audio input type |
Digital Input |
Architecture |
Class-D, Smart Amp |
Speaker channels (max) |
Stereo |
Control interface |
Software |
Output power (W) |
40 |
Power stage supply (max) (V) |
26.4 |
Power stage supply (min) (V) |
4.5 |
RDS(on) (Ω) |
0.09 |
THD + N at 1 kHz (%) |
0.2 |
Load (min) (Ω) |
3 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
26.4 |
Rating |
Catalog |
Operating temperature range (°C) |
-25 to 85 |

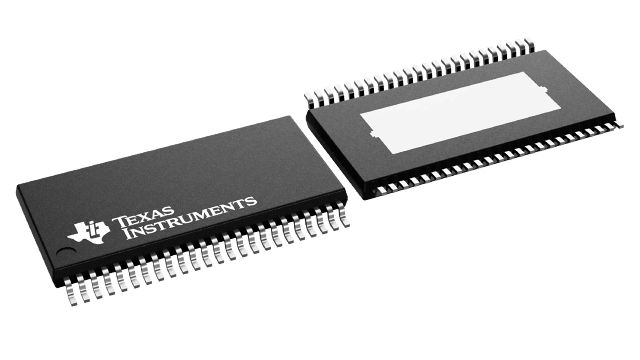

HTSSOP (DCA)-48-101.25 mm² 12.5 x 8.1

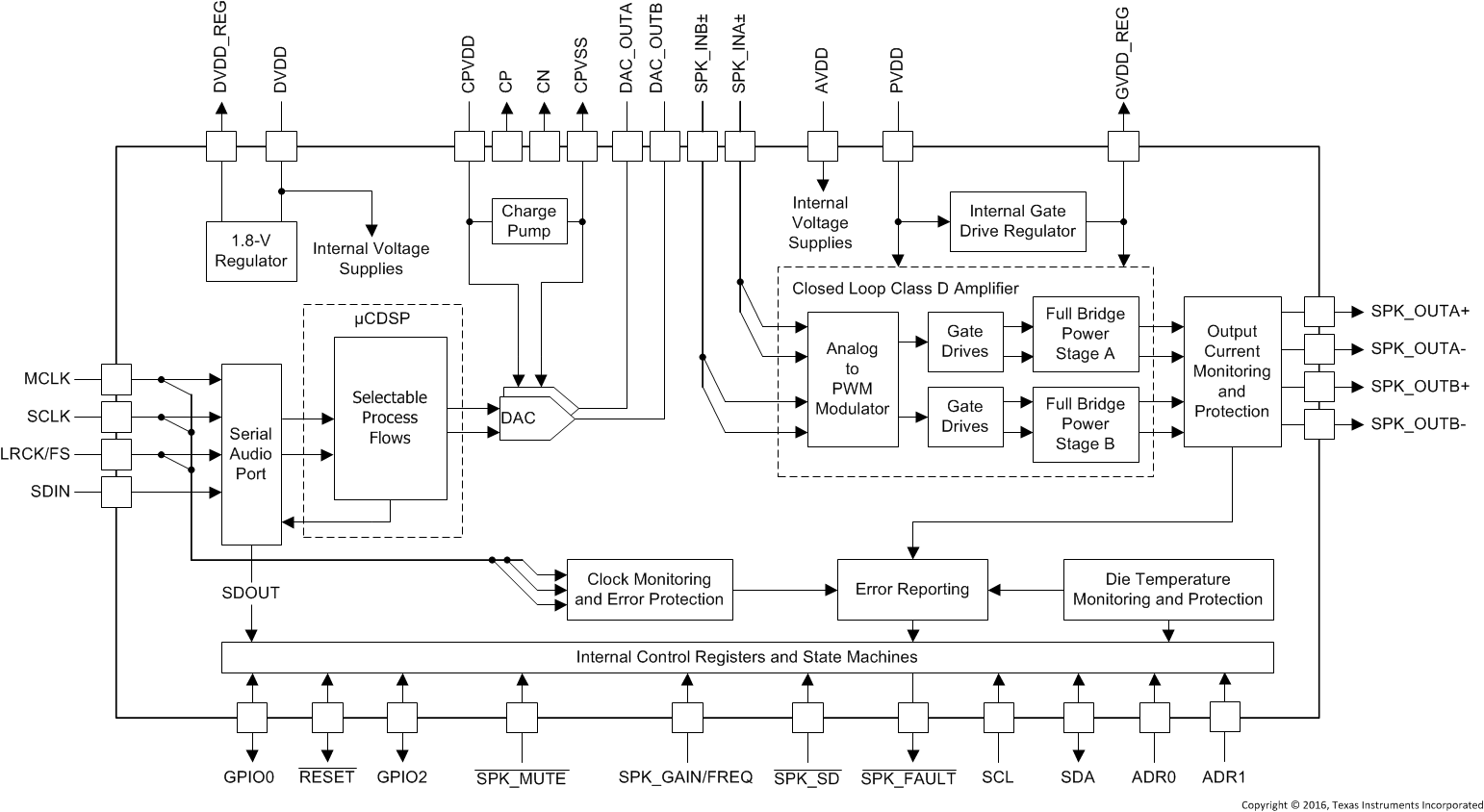

The TAS5782M device is a high-performance, stereo closed-loop Class-D amplifier with integrated audio processor with up to 96-kHz architecture. To convert from digital to analog, the device uses a high performance DAC with Burr Brown™ audio technology. It requires only two power supplies: one DVDD for low-voltage circuitry and one PVDD for high-voltage circuitry. It is controlled by a software control port using standard I2C communication.
An optimal mix of thermal performance and device cost is provided in the 90 mΩ rDS(on) of the output MOSFETs. Additionally, a thermally enhanced 48-Pin TSSOP provides excellent operation in the elevated ambient temperatures found in modern consumer electronic devices.
