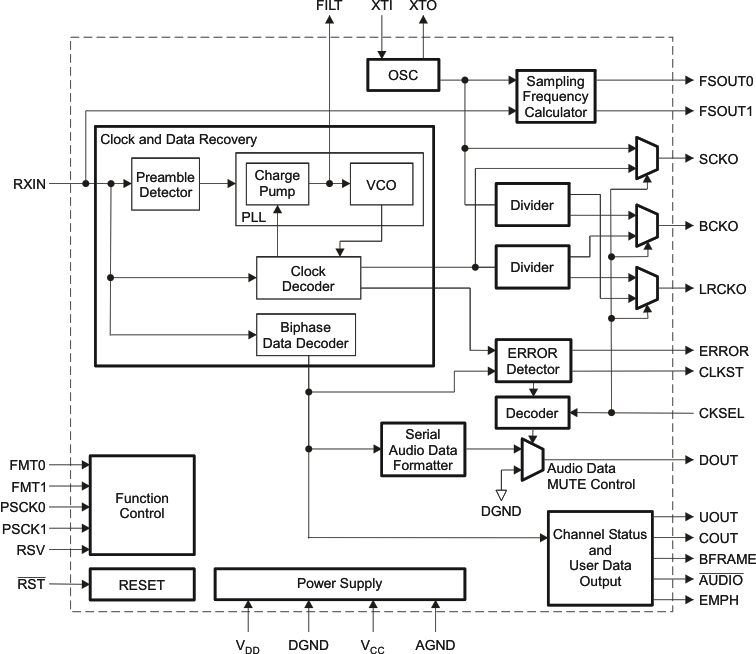

- One-Chip Digital Audio Interface Receiver (DIR)
Including Low-Jitter Clock-Recovery System - Compliant With Digital Audio Interface Standards:
IEC60958 (former IEC958), JEITA CPR-1205
(former EIAJ CP-1201, CP-340), AES3, EBU
tech3250 - Clock Recovery and Data Decode From Biphase
Input Signal, Generally Called S/PDIF, EIAJ CP-
1201, IEC60958, AES/EBU - Biphase Input Signal Sampling Frequency (fS)
Range: 28 kHz to 108 kHz - Low-Jitter Recovered System Clock: 50 ps
- Jitter Tolerance Compliant With IEC60958-3
- Selectable Recovered System Clock: 128 fS,
256 fS, 384 fS, 512 fS - Serial Audio Data Output Formats: 24-Bit I2S;
MSB-First, 24-Bit Left-Justified; MSB-First 16-, 24-
Bit Right-Justified - User Data, Channel-Status Data Outputs
Synchronized With Decoded Serial Audio Data - No External Clock Required for Decode
- Includes Actual Sampling Frequency Calculator
(Needs External 24.576-MHz Clock) - Function Control: Parallel (Hardware)
- Functions Similar and Pin Assignments Equivalent
to Those of DIR1703 - Single Power Supply: 3.3 V (2.7 V to 3.6 V)
- Wide Operating Temperature Range: –40°C to
85°C - 5 V-Tolerant Digital Inputs
- Package: 28-pin TSSOP, Pin Pitch: 0,65 mm
- One-Chip Digital Audio Interface Receiver (DIR)
Including Low-Jitter Clock-Recovery System - Compliant With Digital Audio Interface Standards:
IEC60958 (former IEC958), JEITA CPR-1205
(former EIAJ CP-1201, CP-340), AES3, EBU
tech3250 - Clock Recovery and Data Decode From Biphase
Input Signal, Generally Called S/PDIF, EIAJ CP-
1201, IEC60958, AES/EBU - Biphase Input Signal Sampling Frequency (fS)
Range: 28 kHz to 108 kHz - Low-Jitter Recovered System Clock: 50 ps
- Jitter Tolerance Compliant With IEC60958-3
- Selectable Recovered System Clock: 128 fS,
256 fS, 384 fS, 512 fS - Serial Audio Data Output Formats: 24-Bit I2S;
MSB-First, 24-Bit Left-Justified; MSB-First 16-, 24-
Bit Right-Justified - User Data, Channel-Status Data Outputs
Synchronized With Decoded Serial Audio Data - No External Clock Required for Decode
- Includes Actual Sampling Frequency Calculator
(Needs External 24.576-MHz Clock) - Function Control: Parallel (Hardware)
- Functions Similar and Pin Assignments Equivalent
to Those of DIR1703 - Single Power Supply: 3.3 V (2.7 V to 3.6 V)
- Wide Operating Temperature Range: –40°C to
85°C - 5 V-Tolerant Digital Inputs
- Package: 28-pin TSSOP, Pin Pitch: 0,65 mm
