Texas Instruments BQ24630 Product Info

Parameters

Rating	Catalog
Number of series cells	1, 2, 3, 4, 5, 6, 7
Cell chemistry	Lithium Phosphate/LiFePO4
Charge current (max) (A)	10
Features	BAT temp thermistor monitoring (hot/cold profile), IINDPM (Input current limit)
Vin (min) (V)	5
Vin (max) (V)	28
Absolute max Vin (max) (V)	33
Control topology	Switch-Mode Buck
Battery charge voltage (min) (V)	1.8
Battery charge voltage (max) (V)	26
Control interface	Standalone (RC-Settable)
Operating temperature range (°C)	-40 to 85

Package

VQFN (RGE)-24-16 mm² 4 x 4

Features

300-kHz NMOS-NMOS Synchronous Buck
Converter
Stand-Alone Charger Specifically for Lithium
Phosphate
5-V–28-V VCC Input Operating Range,
Supports 1–7 Battery Cells
High-Accuracy Voltage and Current Regulation
- ±0.5% Charge Voltage Accuracy
- ±3% Charge Current Accuracy
- ±3% Adapter Current Accuracy
Integration
- Automatic System Power Selection From
  Adapter or Battery
- Internal Loop Compensation
- Internal Soft Start
- Dynamic Power Management (DPM)
Safety Protection
- Input Overvoltage Protection
- Battery Thermistor Sense Suspend Charge at
  Hot/Cold and Automatically I_CHARGE/8 at
  Hot/Cold or Warm/Cool
- Battery Detection
- Reverse Protection Input FET
- Programmable Safety Timer
- Charge Overcurrent Protection
- Battery Short Protection
- Battery Overvoltage Protection
- Thermal Shutdown
Status Outputs
- Adapter Present
- Charger Operation Status
Charge Enable Pin
6-V Gate Drive for Synchronous Buck Converter
30-ns Driver Dead Time and 99.95% Max.
Effective Duty Cycle
24-Pin 4-mm × 4-mm QFN Package
Energy Star Low Quiescent Current I_q
- < 15-µA Off-State Battery Discharge Current
- < 1.5-mA Off-State Input Quiescent Current
APPLICATIONS
- Power Tool and Portable Equipment
- Personal Digital Assistants
- Handheld Terminals
- Industrial and Medical Equipment
- Netbook, Mobile Internet Device, and Ultra-Mobile
  PC

All other trademarks are the property of their respective owners

300-kHz NMOS-NMOS Synchronous Buck
Converter
Stand-Alone Charger Specifically for Lithium
Phosphate
5-V–28-V VCC Input Operating Range,
Supports 1–7 Battery Cells
High-Accuracy Voltage and Current Regulation
- ±0.5% Charge Voltage Accuracy
- ±3% Charge Current Accuracy
- ±3% Adapter Current Accuracy
Integration
- Automatic System Power Selection From
  Adapter or Battery
- Internal Loop Compensation
- Internal Soft Start
- Dynamic Power Management (DPM)
Safety Protection
- Input Overvoltage Protection
- Battery Thermistor Sense Suspend Charge at
  Hot/Cold and Automatically I_CHARGE/8 at
  Hot/Cold or Warm/Cool
- Battery Detection
- Reverse Protection Input FET
- Programmable Safety Timer
- Charge Overcurrent Protection
- Battery Short Protection
- Battery Overvoltage Protection
- Thermal Shutdown
Status Outputs
- Adapter Present
- Charger Operation Status
Charge Enable Pin
6-V Gate Drive for Synchronous Buck Converter
30-ns Driver Dead Time and 99.95% Max.
Effective Duty Cycle
24-Pin 4-mm × 4-mm QFN Package
Energy Star Low Quiescent Current I_q
- < 15-µA Off-State Battery Discharge Current
- < 1.5-mA Off-State Input Quiescent Current
APPLICATIONS
- Power Tool and Portable Equipment
- Personal Digital Assistants
- Handheld Terminals
- Industrial and Medical Equipment
- Netbook, Mobile Internet Device, and Ultra-Mobile
  PC

All other trademarks are the property of their respective owners

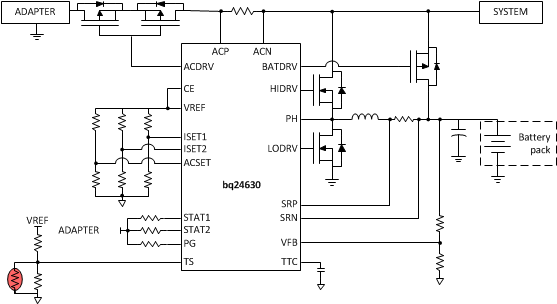

Description

The bq24630 is a highly integrated lithium phosphate switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring.

The bq24630 charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The bq24630 automatically restarts the charge cycle if the battery voltage falls below an internal threshold and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.

The bq24630 is a highly integrated lithium phosphate switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring.

The bq24630 charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The bq24630 automatically restarts the charge cycle if the battery voltage falls below an internal threshold and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
