ACTIVE
Type |
Redriver |
USB speed (Mbps) |
480 |
Number of channels |
1 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
4.4 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
3.6 |
Configuration |
USB 2.0 Single-channel |
Features |
USB 2.0 Redriver with 4 Meter Cable Redriving Strength with CDP RGY Package |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Supply current (max) (µA) |
30000 |
ESD HBM (typ) (kV) |
2 |
Bandwidth (MHz) |
240 |
VQFN (RGY)-14-12.25 mm² 3.5 x 3.5

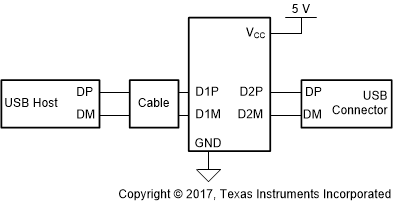

The TUSB215 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel which helps passing USB electrical compliance tests.
TUSB215 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB215 while HS signals are compensated.
Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector, this allows use in many different applications.
In addition, TUSB215 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols. TUSB215 further acts as Charging Downstream Port (CDP) controller and handles the necessary handshakes with the downstream device.
