0
ACTIVE
Type |
Active mux, Redriver |
Function |
Type-C |
USB speed (Mbps) |
5000, 10000 |
Number of channels |
6 |
Supply voltage (max) (V) |
3.6 |
Supply voltage (min) (V) |
3 |
Ron (typ) (mΩ) |
5000 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
3.6 |
Configuration |
Cross Point C & D |
Features |
Receiver equalizer, USB 3.0 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Supply current (max) (µA) |
200000 |
ESD HBM (typ) (kV) |
5 |
Bandwidth (MHz) |
1600 |

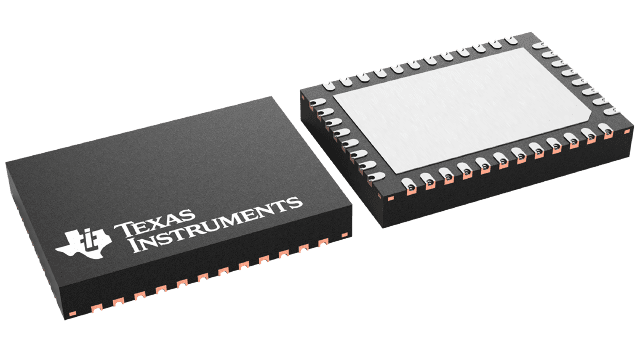

VQFN (RGF)-40-35 mm² 7 x 5
The TUSB1021-Q1 is a linear redriver with 1:2 DeMUX or 2:1 MUX function for USB Type-C applications. The TUSB1021-Q1 is intended to reside between a Host and a USB-C receptacle or between a USB device and a USB-C receptacle. The TUSB1021-Q1 supports USB 3.2 data rates up to 10Gbps and supports USB 3.2 low power states (Disconnect, U1, U2, and U3)
The TUSB1021-Q1 provides sixteen levels of receive linear equalization to compensate for inter symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3V supply and comes in an automotive grade 2 temperature range.
