ACTIVE
Protocols |
Composite, RGB, VGA |
Configuration |
2:1 SPDT |
Number of channels |
7 |
Bandwidth (MHz) |
1300 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
3 |
Ron (typ) (mΩ) |
3000 |
Input/output voltage (min) (V) |
0 |
Input/output voltage (max) (V) |
5.5 |
Supply current (typ) (µA) |
200 |
ESD HBM (typ) (kV) |
7 |
Operating temperature range (°C) |
-40 to 85 |
Crosstalk (dB) |
-47 |
ESD CDM (kV) |
2 |
Input/output continuous current (max) (mA) |
128 |
COFF (typ) (pF) |
3 |
CON (typ) (pF) |
8 |
Off isolation (typ) (dB) |
-38 |
OFF-state leakage current (max) (µA) |
1 |
Propagation delay time (µs) |
0.00025 |
Ron (max) (mΩ) |
6000 |
Ron channel match (max) (Ω) |
1 |
RON flatness (typ) (Ω) |
0.2 |
Turnoff time (disable) (max) (ns) |
13 |
Turnon time (enable) (max) (ns) |
13 |
VIH (min) (V) |
2 |
VIL (max) (V) |
0.8 |
Rating |
Catalog |

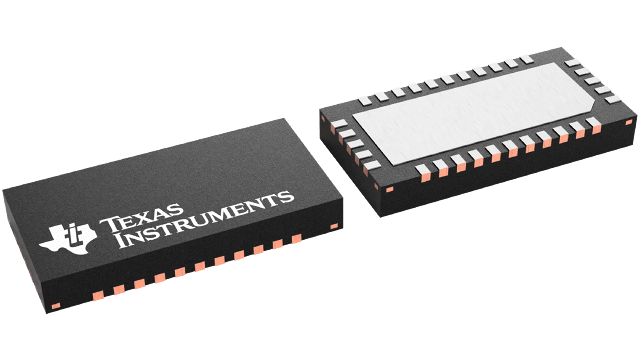

WQFN (RTG)-32-18 mm² 6 x 3
(Typ)
The TS3V712EL is a high bandwidth, 7-channel video demultiplexer for switching between a single VGA source and one of two end points. The device is designed for ensuring video signal integrity and minimizing video signal attenuation by providing high bandwidth of 1.3 GHz.
The TS3V712EL has integrated level shifting buffers for the HSYNC and VSYNC signals which provide voltage level translation between 3.3 V and 5 V logic. The SCL and SDA lines use NMOS switches which clamp the output voltage to 1 V below VDD.
The video signals are protected against ESD with integrated diodes to VDD and GND that support levels up to ±2-kV Contact Discharge (IEC61000-4-2) and 7-kV Human Body Model (JESD22-A114E).
