0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
38 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Rail-to-rail |
In to V+ |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
40 |
Vos (offset voltage at 25°C) (max) (mV) |
3.5 |
Iq per channel (typ) (mA) |
1.55 |
Vn at 1 kHz (typ) (nV√Hz) |
12 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
2.4 |
Input bias current (max) (pA) |
175 |
CMRR (typ) (dB) |
98 |
Iout (typ) (A) |
0.03 |
Architecture |
FET |
Input common mode headroom (to negative supply) (typ) (V) |
3.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0 |
Output swing headroom (to negative supply) (typ) (V) |
0.8 |
Output swing headroom (to positive supply) (typ) (V) |
-0.9 |

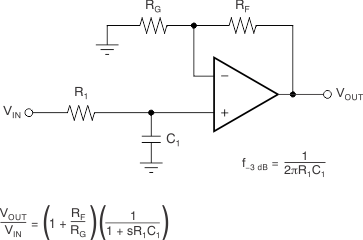

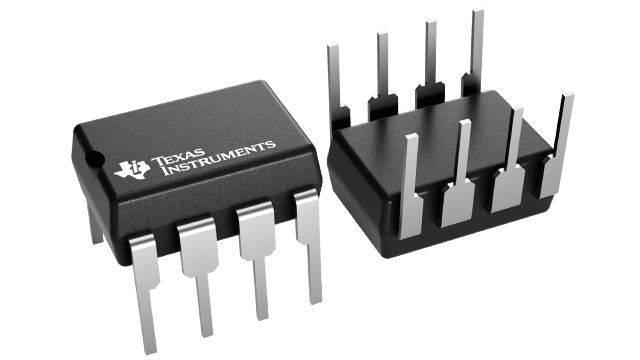

PDIP (P)-8-92.5083 mm² 9.81 x 9.43
The TLE207x and TLE207xA family is a family of high voltage amplifiers which offer great DC precision and AC performance. This includes low noise floor and high slew rate, making TLE207x and TLE207xA family a flexible, high-performance amplifier. TLE207x and TLE207xA devices are great option for the following applications:
TLE207x and TLE207xA is available in standard packages PDIP and SOIC. The TLE207xM and TLE207xAM devices use the original design with JFET-input transistors and On-chip Zener trimming of offset voltage. The TLE207xM, TLE207xAM are available in CDIP, LCCC, and CFP For more information on packaging, see
