ACTIVE
Product type |
Analog output |
Common-mode voltage (max) (V) |
26 |
Common-mode voltage (min) (V) |
-0.3 |
Input offset (±) (max) (µV) |
150 |
Input offset drift (±) (typ) (µV/°C) |
0.1 |
Features |
Bidirectional, Low-side Capable |
Rating |
Catalog |
Voltage gain (V/V) |
50, 100, 200 |
CMRR (min) (dB) |
100 |
Bandwidth (kHz) |
14, 30, 80 |
Supply voltage (max) (V) |
26 |
Supply voltage (min) (V) |
2.7 |
Iq (max) (mA) |
0.115 |
Number of channels |
1 |
Comparators (#) |
0 |
Gain error (%) |
0.9, 1.4 |
Gain error drift (±) (max) (ppm/°C) |
10 |
Slew rate (V/µs) |
0.4 |
Operating temperature range (°C) |
-40 to 125 |
SOT-SC70 (DCK)-6-4.2 mm² 2 x 2.1
The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.

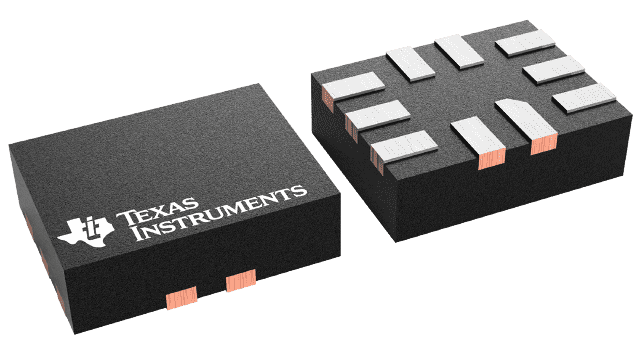

These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 µA of supply current. All versions are specified from –40°C to 125°C, and offered in both SC70-6 and thin UQFN-10 packages.
