Texas Instruments TSER9615 Product Info

Parameters

Applications	Camera SerDes
Color depth (bpp)	24
Function	Serializer
Input compatibility	MIPI CSI-2
Output compatibility	V3Link
Features	Bidirectional, CRC, Coax or STP, Flexible GPIOs, I2C Config, Pattern Generation, Temperature sensing
Signal conditioning	DC Balance
EMI reduction	LVDS
Diagnostics	BIST
Rating	Catalog
Operating temperature range (°C)	-20 to 85

Package

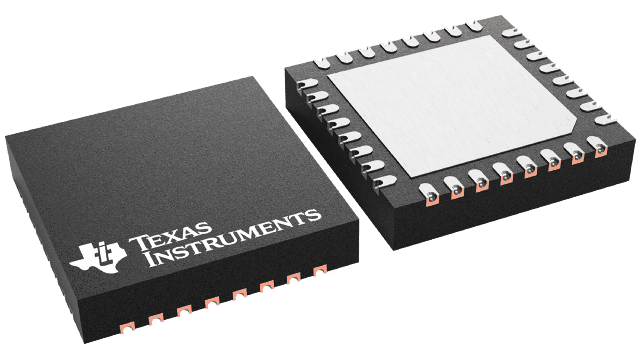

VQFN (RHB)-32-25 mm² 5 x 5

Features

7.55 Gbps (6 Gbps video payload) serializer supports high-speed sensors including 8 MP+ imagers
Supports 3 data rates: 7.55 Gbps, 3.775 Gbps and 1.8875 Gbps.
Power-over-Coax (PoC) compatible transceiver
Single MIPI D-PHY port with 4 lanes
- Compliant to MIPI D-PHY v2.1
- 1 Clock lane and 1, 2 or 4 configurable data lanes
- Up to 1.5 Gbps/lane
- Supports polarity pin inversion (p/n)
- Up to 16 virtual channels
Single port MIPI CSI-2 receiver
- Compliant to MIPI CSI-2 v2.1
- Supports multiple data types and multi-exposure
Advanced data protection and diagnostics including CRC data protection, sensor data integrity check, I 2C write protection, voltage and temperature measurement, programmable alarm and line fault detection
Flexible programmable output clock generator
Supports single-ended coaxial cable and shielded-twisted-pair (STP) cable
Ultra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECU
Single 1.8 V power supply
Compatible with all V 3Link Vision / Enhanced Vision deserializers
Pin-to-pin compatible with the TSER953 serializer

7.55 Gbps (6 Gbps video payload) serializer supports high-speed sensors including 8 MP+ imagers
Supports 3 data rates: 7.55 Gbps, 3.775 Gbps and 1.8875 Gbps.
Power-over-Coax (PoC) compatible transceiver
Single MIPI D-PHY port with 4 lanes
- Compliant to MIPI D-PHY v2.1
- 1 Clock lane and 1, 2 or 4 configurable data lanes
- Up to 1.5 Gbps/lane
- Supports polarity pin inversion (p/n)
- Up to 16 virtual channels
Single port MIPI CSI-2 receiver
- Compliant to MIPI CSI-2 v2.1
- Supports multiple data types and multi-exposure
Advanced data protection and diagnostics including CRC data protection, sensor data integrity check, I 2C write protection, voltage and temperature measurement, programmable alarm and line fault detection
Flexible programmable output clock generator
Supports single-ended coaxial cable and shielded-twisted-pair (STP) cable
Ultra-low latency bidirectional I2C and GPIO control channel enables ISP control from ECU
Single 1.8 V power supply
Compatible with all V 3Link Vision / Enhanced Vision deserializers
Pin-to-pin compatible with the TSER953 serializer

Description

The TSER9615 serializer is part of TIs V 3Link Enhanced Vision family and is designed to support ultra-high-speed data sensors including 8MP+ Imagers, satellite RADAR, LIDAR, and time-of-flight (ToF) sensors. The serializer delivers an 7.55 Gbps forward channel and an ultra-low latency, 47.1875 Mbps bidirectional control channel and supports power over a single coax (PoC) or STP cable. When the TSER9615 is used in Enhanced Vision mode, it provides the possibility to select between three data rates: 7.55 Gbps, 3.775 Gbps and 1.8875 Gbps. The TSER9615 features advanced data protection and diagnostic features. Together with a companion deserializer, the TSER9615 delivers precise multi-camera sensor clock and sensor synchronization.

The TSER9615 is qualified with a wide temperature range of –20°C to 85°C. The serializer comes in a small 5 mm × 5 mm VQFN package for space-constrained sensor applications.
