Texas Instruments TPL0102-100 Product Info

Parameters

Number of steps	256
Number of channels	2
End-to-end resistance (typ) (Ω)	100000
Resistance taper	Linear
End-to-end resistance tolerance (max) (%)	20
Interface type	I2C
Memory	Non-Volatile
Bandwidth (MHz)	0.25
Temp coeff (typ) (ppm/°C)	130
Wiper resistance (typ) (Ω)	25
Operating temperature range (°C)	-40 to 85
Rating	Catalog

Package

TSSOP (PW)-14-32 mm² 5 x 6.4

Features

Two Potentiometers with 256-Position Resolution
Non-volatile Memory Stores Wiper Settings
100 kΩ End-to-End Resistance (TPL0102-100)
Fast Power-up Response Time to Wiper Setting:
<100 µs
±0.5 LSB INL, ±0.25 LSB DNL (Voltage-Divider
Mode)
4 ppm/°C Ratiometric Temperature Coefficient
I²C-compatible Serial Interface
2.7 V to 5.5 V Single-Supply Operation
±2.25 V to ±2.75 V Dual-Supply Operation
Operating Temperature Range from –40°C to
85°C
Shutdown Mode
ESD Performance Tested Per JESD 22
- 2000-V Human Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- Adjustable Gain Amplifiers and Offset Trimming
- Adjustable Power Supplies
- Precision Calibration of Set Point Thresholds
- Sensor Trimming and Calibration
- Mechanical Potentiometer Replacement

All other trademarks are the property of their respective owners

Two Potentiometers with 256-Position Resolution
Non-volatile Memory Stores Wiper Settings
100 kΩ End-to-End Resistance (TPL0102-100)
Fast Power-up Response Time to Wiper Setting:
<100 µs
±0.5 LSB INL, ±0.25 LSB DNL (Voltage-Divider
Mode)
4 ppm/°C Ratiometric Temperature Coefficient
I²C-compatible Serial Interface
2.7 V to 5.5 V Single-Supply Operation
±2.25 V to ±2.75 V Dual-Supply Operation
Operating Temperature Range from –40°C to
85°C
Shutdown Mode
ESD Performance Tested Per JESD 22
- 2000-V Human Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- Adjustable Gain Amplifiers and Offset Trimming
- Adjustable Power Supplies
- Precision Calibration of Set Point Thresholds
- Sensor Trimming and Calibration
- Mechanical Potentiometer Replacement

All other trademarks are the property of their respective owners

Description

The TPL0102 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100 kΩ.

The TPL0102 has non-volatile memory (EEPROM) which can be used to store the wiper position. This is beneficial because the wiper position is stored even during power-off and is automatically reinstated after power-on. The internal registers of the TPL0102 can be accessed using the I²C interface.

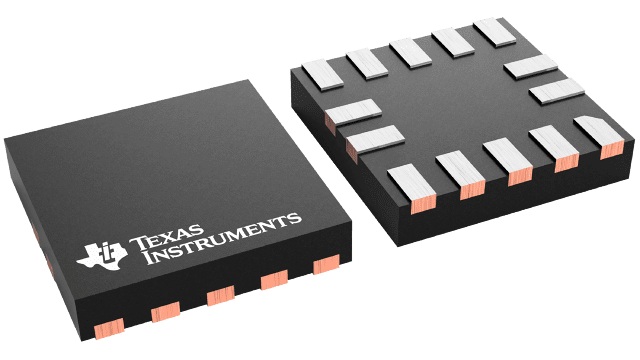

The TPL0102 is available in a 14-pin MicroQFN and 14-pin TSSOP package with a specified temperature range of –40°C to 85°C.

The TPL0102 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100 kΩ.

The TPL0102 has non-volatile memory (EEPROM) which can be used to store the wiper position. This is beneficial because the wiper position is stored even during power-off and is automatically reinstated after power-on. The internal registers of the TPL0102 can be accessed using the I²C interface.

The TPL0102 is available in a 14-pin MicroQFN and 14-pin TSSOP package with a specified temperature range of –40°C to 85°C.
