0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
10 |
Vos (offset voltage at 25°C) (max) (mV) |
1 |
Iq per channel (typ) (mA) |
1.6 |
Vn at 1 kHz (typ) (nV√Hz) |
7 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.3 |
Features |
EMI Hardened, Small Size |
Input bias current (max) (pA) |
15 |
CMRR (typ) (dB) |
120 |
Iout (typ) (A) |
0.075 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
-2 |
Output swing headroom (to negative supply) (typ) (V) |
0.01 |
Output swing headroom (to positive supply) (typ) (V) |
-0.01 |
SOIC (D)-8-29.4 mm² 4.9 x 6

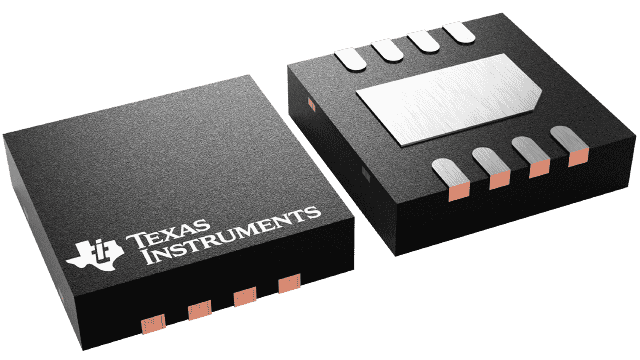

The OPA172, OPA2172 and OPA4172 (OPAx172) are a family of 36-V, single-supply, low-noise operational amplifiers capable of operating on supplies ranging from +4.5 V (±2.25 V) to +36 V
(±18 V). This latest addition of high-voltage CMOS operational amplifiers, in conjunction with the OPAx171 and OPAx170, provide a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications. The OPAx172 are available in micropackages, and offer low offset, drift, and quiescent current. These devices also offer wide bandwidth, fast slew rate, and high output current drive capability. The single, dual, and quad versions all have identical specifications for maximum design flexibility.
Unlike most op amps, which are specified at only one supply voltage, the OPAx172 family is specified from +4.5 V to +36 V. Input signals beyond the supply rails do not cause phase reversal. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. Note that these devices can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail.
The OPAx172 series of op amps are specified from –40°C to +125°C.
