Texas Instruments TPSM8A28 Product Info

Parameters

Rating	Catalog
Topology	Buck
Iout (max) (A)	12
Vin (max) (V)	16
Vin (min) (V)	2.7
Vout (max) (V)	5.5
Vout (min) (V)	0.5
Features	Enable, Light-load efficiency, Overcurrent protection, Power good, Remote Sense
Operating temperature range (°C)	-40 to 125
Type	Module
Duty cycle (max) (%)	87
Control mode	D-CAP3
Switching frequency (min) (kHz)	600
Switching frequency (max) (kHz)	1000

Package

B3QFN (RDG)-25-48.75 mm² 7.5 x 6.5

Features

TPSM8A28: 3-V to 16-V input range up to 12 A
TPSM8A29: 4-V to 16-V input range up to 15 A
2.7-V to 16-V input range with external bias ranging from 4.75 V to 5.3 V
Output voltage range: 0.6 V to 5.5 V
Integrated MOSFET, inductor, and basic passives
D-CAP3™ control mode with fast load-step response
Supports all ceramic output capacitors
0.6-V reference voltage has ±1% tolerance from –40°C to +125°C junction temperature
Selectable FCCM or auto-skip Eco-mode™ for high light-load efficiency
Programmable current limit with R_TRIP
Pin-selectable switching frequency: 600 kHz, 800 kHz, 1 MHz
Differential remote sense for high output accuracy
Programmable soft-start time
External reference input for tracking
Prebiased start-up capability
Open-drain power-good output
Hiccup for OC and UV faults, latch-off for OV faults
6.5-mm × 7.5-mm × 4.0-mm, RDG package
Fully RoHS compliant without exemption

TPSM8A28: 3-V to 16-V input range up to 12 A
TPSM8A29: 4-V to 16-V input range up to 15 A
2.7-V to 16-V input range with external bias ranging from 4.75 V to 5.3 V
Output voltage range: 0.6 V to 5.5 V
Integrated MOSFET, inductor, and basic passives
D-CAP3™ control mode with fast load-step response
Supports all ceramic output capacitors
0.6-V reference voltage has ±1% tolerance from –40°C to +125°C junction temperature
Selectable FCCM or auto-skip Eco-mode™ for high light-load efficiency
Programmable current limit with R_TRIP
Pin-selectable switching frequency: 600 kHz, 800 kHz, 1 MHz
Differential remote sense for high output accuracy
Programmable soft-start time
External reference input for tracking
Prebiased start-up capability
Open-drain power-good output
Hiccup for OC and UV faults, latch-off for OV faults
6.5-mm × 7.5-mm × 4.0-mm, RDG package
Fully RoHS compliant without exemption

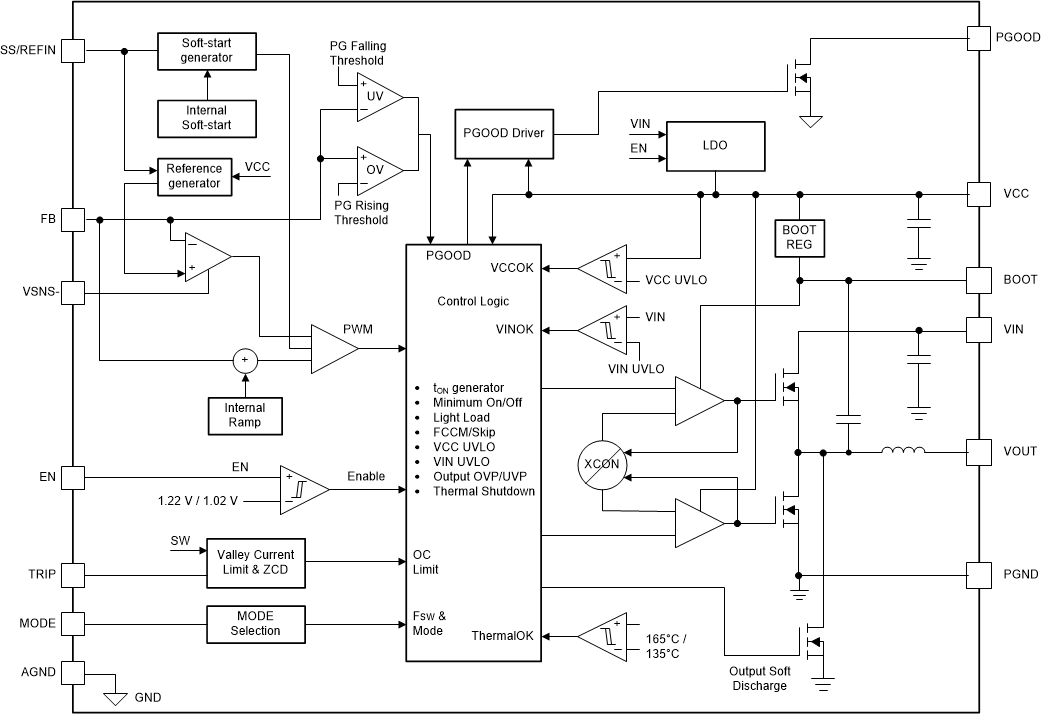

Description

The TPSM8A28 and TPSM8A29 buck power modules are small and highly efficient. This module family contains integrates inductor and basic passives, and does not require external compensation, minimizing solution size.

Features include differential remote sense, high-performance integrated MOSFETs, and an accurate 0.6-V reference, D-CAP3™ control mode,selectable Skip-mode and programmable soft-start.

TPSM8A28 and TPSM8A29 are lead-free, and fully RoHS compliant without exemption.

The TPSM8A28 and TPSM8A29 buck power modules are small and highly efficient. This module family contains integrates inductor and basic passives, and does not require external compensation, minimizing solution size.

Features include differential remote sense, high-performance integrated MOSFETs, and an accurate 0.6-V reference, D-CAP3™ control mode,selectable Skip-mode and programmable soft-start.

TPSM8A28 and TPSM8A29 are lead-free, and fully RoHS compliant without exemption.

ELECTRONIC COMPONENTS
All In One Distributor

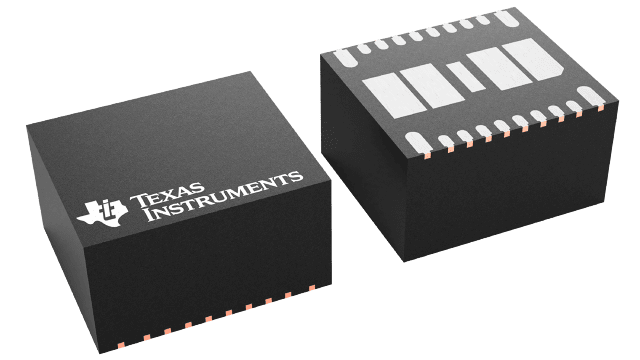

TPSM8A28
