ACTIVE
Number of channels |
2 |
Topology |
Boost Controller, Buck Controller, Buck-Boost Controller, Cuk Controller, Flyback Controller, SEPIC Controller |
Rating |
Automotive |
TI functional safety category |
Functional Safety-Capable |
Operating temperature range (°C) |
-40 to 125 |
Vin (min) (V) |
4.5 |
Vin (max) (V) |
65 |
Vout (min) (V) |
4.5 |
Vout (max) (V) |
65 |
Iout (max) (A) |
5 |
Iq (typ) (mA) |
2.2 |
Switching frequency (max) (kHz) |
1000 |
Features |
Adjustable Switch Frequency, Fault Detection, Fault Diagnostic, LED Open Detection, LED Short to Ground Detection, Spread Spectrum, Synchronization Pin, Thermal shutdown |

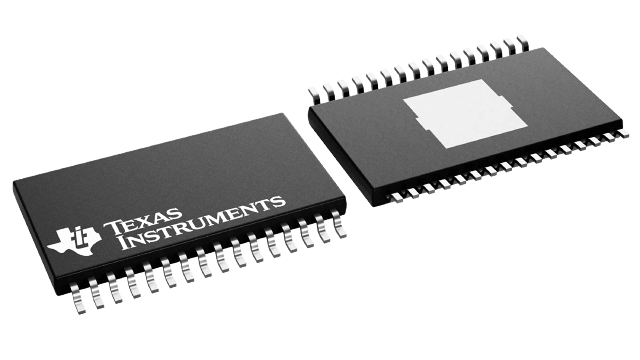

HTSSOP (DAP)-32-89.1 mm² 11 x 8.1
The TPS92682-Q1 is a dual-channel, peak current-mode controller with SPI communication interface. The device is programmable to operate in constant-voltage (CV) or constant-current (CC) modes.

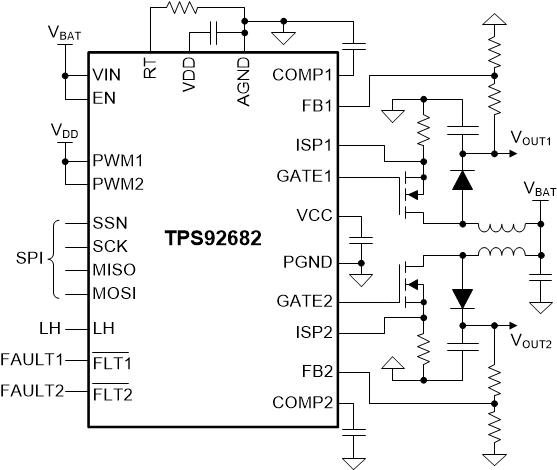

In CV mode, TPS92682-Q1 can be programmed to operate as two independent or dual-phase Boost voltage regulators. The output voltage can be programmed using an external resistor voltage divider, and a SPI-programmable 8-bit DAC.
In CC mode, the device is designed to support dual channel step-up or step-down LED driver topologies. LED current can be independently modulated using analog or PWM dimming techniques. Analog dimming with over 28:1 range is obtained using a programmable 8-bit DAC. PWM dimming of LED current is achieved either by directly modulating the PWM input pins with the desired duty cycle, or using a SPI-programmable 10-bit PWM counter. The optional PDRV gate driver output can be used to drive an external P-Channel series MOSFET.
The TPS92682-Q1 incorporates an advanced SPI-programmable diagnostic and fault protection mechanism including: cycle-by-cycle current limit, output overvoltage and undervoltage protection, ILED overcurrent protection, and thermal warning. The device also includes an open-drain fault indicator output per channel.
The TPS92682-Q1 includes an LH pin, when pulled high, initiates the limp home (LH) condition. In LH mode, the device uses a separate set of SPI-programmed registers.
