ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.4 |
BW at Acl (MHz) |
620 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
1500 |
Architecture |
Bipolar, Fully Differential ADC Driver |
Vn at flatband (typ) (nV√Hz) |
2.2 |
Iq per channel (typ) (mA) |
10.1 |
Rail-to-rail |
In to V-, Out |
Vos (offset voltage at 25°C) (max) (mV) |
0.45 |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (mA) |
100 |
2nd harmonic (dBc) |
95 |
3rd harmonic (dBc) |
90 |
Frequency of harmonic distortion measurement (MHz) |
10 |
GBW (typ) (MHz) |
850 |
Input bias current (max) (pA) |
13000000 |
Features |
Decompensated, Shutdown |
CMRR (typ) (dB) |
100 |
Rating |
Automotive |
VQFN (RGT)-16-9 mm² 3 x 3

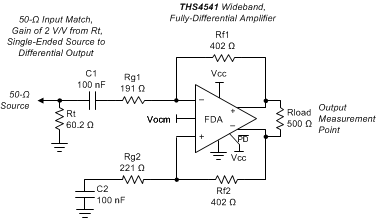

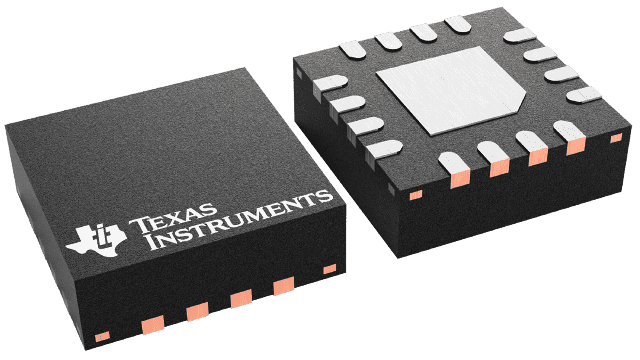

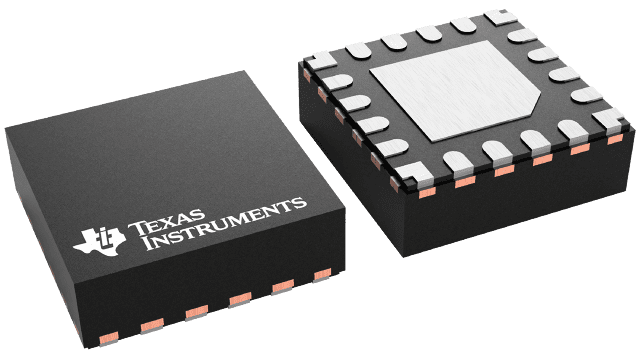

The THS4541-Q1 is a low-power, voltage-feedback, fully differential amplifier (FDA) with an input common-mode range less than the negative rail, and rail-to-rail output. Designed for low-power data acquisition systems where high density is critical in a high-performance analog-to-digital converter (ADC) or digital-to-analog converter (DAC) interface design.
The THS4541-Q1 features the negative-rail input required when interfacing a dc-coupled, ground-centered, source signal. This negative-rail input, with rail-to-rail output, allows for an easy interface between single-ended, ground-referenced, bipolar signal sources and a wide variety of successive approximation register (SAR), delta-sigma (ΔΣ), or pipeline ADCs using only a single 2.7V to 5.4V power supply.
The THS4541-Q1 is characterized for operation over the wide temperature range of –40°C to +125°C and is available in a 16-pin VQFN package, both with and without wettable flanks. The package with wettable flanks eases post-assembly visual inspection and is available as the THS4541W-Q1.
