0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
3.6 |
BW at Acl (MHz) |
104 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
377.5 |
Architecture |
Bipolar, Fully Differential ADC Driver |
Vn at flatband (typ) (nV√Hz) |
4.6 |
Iq per channel (typ) (mA) |
1.1 |
Rail-to-rail |
In to V-, Out |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Operating temperature range (°C) |
-55 to 210 |
Iout (typ) (mA) |
35 |
2nd harmonic (dBc) |
96 |
3rd harmonic (dBc) |
91.5 |
Frequency of harmonic distortion measurement (MHz) |
0.001 |
GBW (typ) (MHz) |
81 |
Input bias current (max) (pA) |
3300000 |
Features |
Shutdown |
CMRR (typ) (dB) |
105 |
Rating |
High Temp |

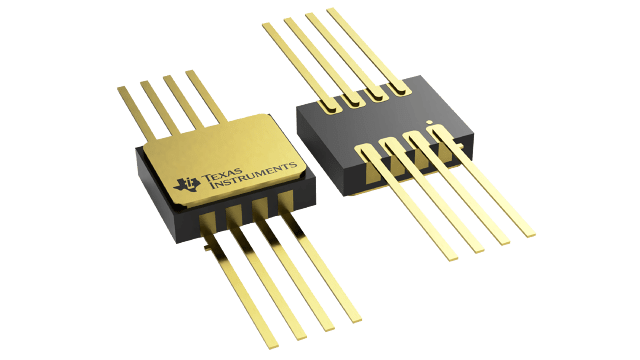

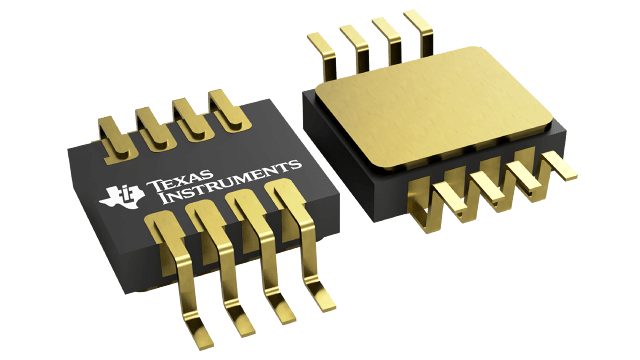

CFP (HKJ)-8-38.985 mm² 6.9 x 5.65
The THS4521 is a very low-power, fully differential op amp with rail-to-rail output and an input common-mode range that includes the negative rail. This amplifier is designed for low-power data acquisition systems and high-density applications where power dissipation is a critical parameter, and provides exceptional performance in audio applications.
The THS4521 features accurate output common-mode control that allows for dc-coupling when driving analog-to-digital converters (ADCs). This control, coupled with an input common-mode range below the negative rail as well as rail-to-rail output, allows for easy interfacing between single-ended, ground-referenced signal sources. Additionally, this device is ideally suited for driving both successive-approximation register (SAR) and delta-sigma (ΔΣ) ADCs using only a single 2.5-V to 3.3-V and ground power supply.
The THS4521 is characterized for operation from –55°C to 210°C.
