0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
10 |
Slew rate (typ) (V/µs) |
6 |
Vos (offset voltage at 25°C) (max) (mV) |
2.5 |
Iq per channel (typ) (mA) |
0.4 |
Vn at 1 kHz (typ) (nV√Hz) |
11 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
2 |
Features |
EMI Hardened |
Input bias current (max) (pA) |
15 |
CMRR (typ) (dB) |
86 |
Iout (typ) (A) |
0.05 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.2 |
Output swing headroom (to negative supply) (typ) (V) |
0.005 |
Output swing headroom (to positive supply) (typ) (V) |
-0.005 |
TSSOP (PW)-14-32 mm² 5 x 6.4

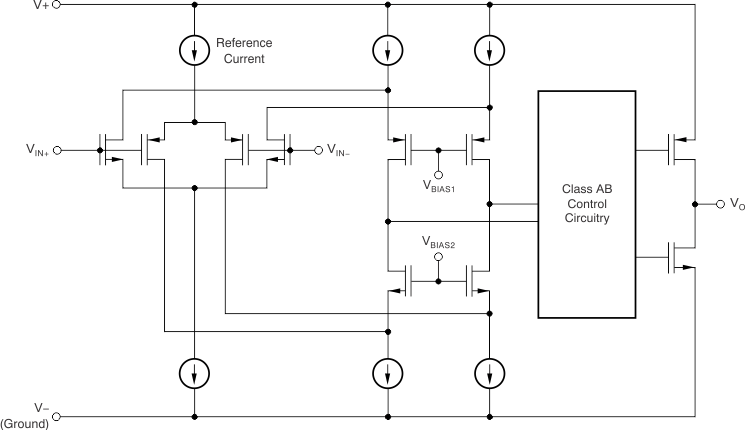

The OPAx316-Q1 family of single and dual operational amplifiers represents a new generation of general-purpose, low-power operational amplifiers. Featuring rail-to-rail input and output swings, low quiescent current (400 µA/ch typical) combined with a wide bandwidth of 10 MHz and very-low noise (11 nV/√Hz at 1 kHz) makes this family suitable for circuits requiring a good speed and power ratio. The low input bias current supports those operational amplifiers for applications with megaohm source impedances. The low input bias current of the OPAx316-Q1 yields a very-low current noise to make the device attractive for high impedance sensor interfaces.
The robust design of the OPAx316-Q1 provides ease-of-use to the circuit designer: a unity-gain stable, integrated RFI and EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4-kV HBM).
These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V). This latest addition of low-voltage CMOS automotive grade operational amplifiers provide a family of wide bandwidth, low noise, and low power that meet the needs of a wide variety of applications.
