ACTIVE
Input voltage type |
DC/DC |
Topology |
Buck |
Vin (min) (V) |
3.5 |
Vin (max) (V) |
60 |
Vout (max) (V) |
58 |
Vout (min) (V) |
0.2 |
Iout (max) (A) |
1.5 |
Iq (typ) (mA) |
0.3 |
Features |
Adjustable Switch Frequency, Enable/Shutdown, Integrated Switch, Synchronization Pin, Thermal shutdown |
Operating temperature range (°C) |
-40 to 125 |
Dimming method |
Analog, PWM |
Number of channels |
1 |
Rating |
Catalog |

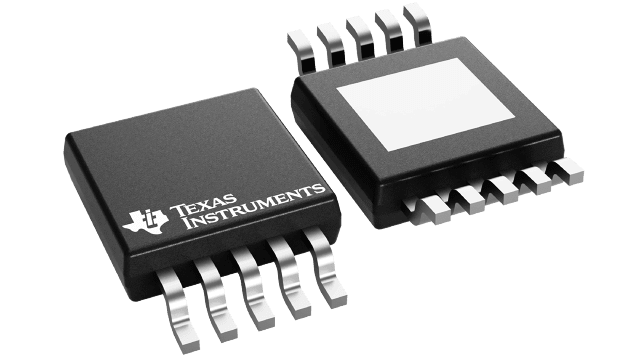

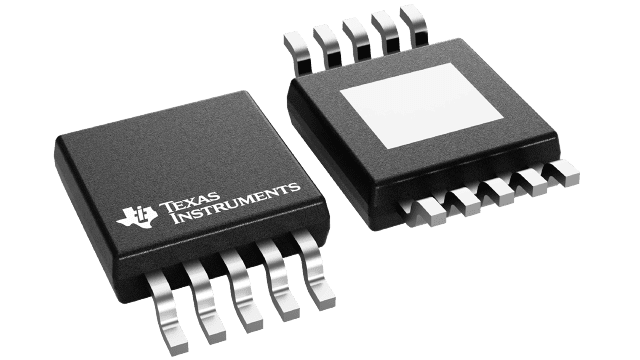

HVSSOP (DGQ)-10-14.7 mm² 3 x 4.9

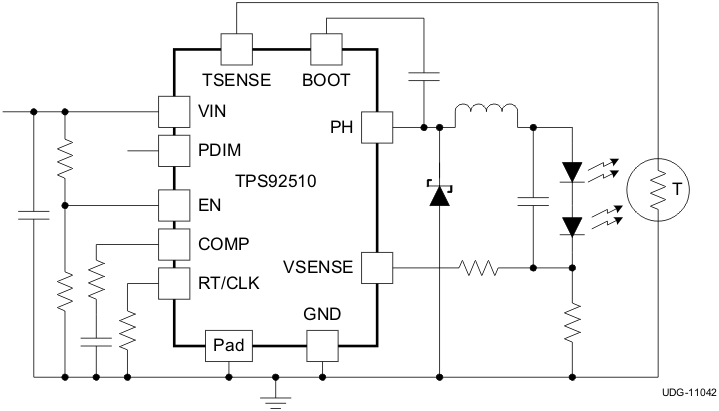

The TPS92510 is a 60-V, 1.5-A peak current-mode step-down converter with an integrated high-side MOSFET. It is specifically designed for driving high-brightness LEDs with a constant current. The tight-tolerance, 200-mV internal reference voltage reduces power dissipation in the current-sense resistor. A dedicated pulse width modulation input pin allows linear control of the light output.
The TPS92510 integrates a thermal foldback feature that reduces the average output current to ensure that the sensed LED temperature never exceeds a specific value, improving the reliability of the overall system. An integrated frequency synchronization feature allows a reduction of unwanted beat- frequencies in multi-string applications and simplifies EMI filtering. The adjustable input voltage UVLO feature accommodates the various deep discharge levels of multiple battery types.
The TPS92510 includes cycle-by-cycle overcurrent protection, and thermal shutdown protection. It is available in a 10-pin MSOP PowerPAD™ package.
