INA253-Q1
  • INA253-Q1
  • INA253-Q1

INA253-Q1

ACTIVE

AEC-Q100, 80V, bi-directional, precision current sense amp w/pwm rejection & int. shunt resistor

Texas Instruments INA253-Q1 Product Info

1 April 2026 3

Parameters

Common-mode voltage (max) (V)

80

Common-mode voltage (min) (V)

-4

Gain error (%)

0.4

Gain error drift (±) (max) (ppm/°C)

45

CMRR (min) (dB)

120

Bandwidth (kHz)

350

Supply voltage (max) (V)

5.5

Supply voltage (min) (V)

2.7

Iq (max) (mA)

2.6

Features

Bidirectional, Enhanced PWM Rejection, Integrated Shunt, Low-side Capable

Rating

Automotive

TI functional safety category

Functional Safety-Capable

Operating temperature range (°C)

-40 to 125

Package

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

Features

  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40 °C to +125 °C, TA
  • Functional Safety-Capable
  • Precision integrated shunt resistor
    • Shunt resistor: 2 mΩ
    • Shunt inductance: 3 nH
    • Shunt resistor tolerance: 0.1% (maximum)
    • ±15 A continuous from –40 °C to +85 °C
    • 0 °C to 125 °C temperature coefficient: 10 ppm/°C
  • High bandwidth: 350 kHz
  • Enhanced PWM rejection
  • Excellent CMRR
    • > 120-dB DC CMRR
    • 90-dB AC CMRR at 50 kHz
  • Accuracy:
    • Gain:
      • Gain error: 0.4% (maximum)
      • Gain drift: 45 ppm/°C (maximum)
    • Offset:
      • Offset current: ±15 mA (maximum)
      • Offset drift: 125 µA/°C (maximum)
  • Wide common-mode range: –4 V to +80 V
  • Available gains: 100 mV/A, 200 mV/A, and 400 mV/A
  • Quiescent current: 2.4 mA (maximum)
  • AEC-Q100 qualified for automotive applications:
    • Temperature grade 1: –40 °C to +125 °C, TA
  • Functional Safety-Capable
  • Precision integrated shunt resistor
    • Shunt resistor: 2 mΩ
    • Shunt inductance: 3 nH
    • Shunt resistor tolerance: 0.1% (maximum)
    • ±15 A continuous from –40 °C to +85 °C
    • 0 °C to 125 °C temperature coefficient: 10 ppm/°C
  • High bandwidth: 350 kHz
  • Enhanced PWM rejection
  • Excellent CMRR
    • > 120-dB DC CMRR
    • 90-dB AC CMRR at 50 kHz
  • Accuracy:
    • Gain:
      • Gain error: 0.4% (maximum)
      • Gain drift: 45 ppm/°C (maximum)
    • Offset:
      • Offset current: ±15 mA (maximum)
      • Offset drift: 125 µA/°C (maximum)
  • Wide common-mode range: –4 V to +80 V
  • Available gains: 100 mV/A, 200 mV/A, and 400 mV/A
  • Quiescent current: 2.4 mA (maximum)

Description

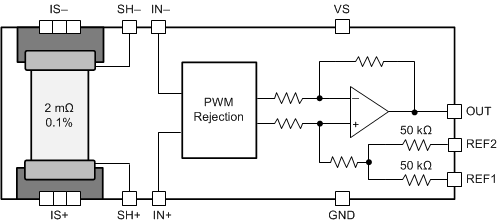

The INA253-Q1 is an automotive, voltage-output, current sense amplifier with an integrated shunt resistor of 2 mΩ. The INA253-Q1 monitors bidirectional currents over a wide common-mode range from –4 V to +80 V, independent of the supply voltage. Three fixed gains are available: 100 mV/A, 200 mV/A, and 400 mV/A. The integration of the precision resistor with a zero-drift chopped amplifier provides calibration-equivalent measurement accuracy, ultra-low temperature-drift performance of 15 ppm/ °C, and an optimized Kelvin layout for the sensing resistor.

The INA253-Q1 is designed with enhanced PWM rejection circuitry to suppress large (dv/dt) signals that enable real-time continuous current measurements. The measurements are critical for in-line current measurements in a motor-drive application, and for solenoid valve-control applications.

This device operates from a single 2.7-V to 5.5-V power supply, drawing a maximum of 3 mA of supply current. All gain versions are specified over the operating temperature range of –40 °C to +125 °C, and are available in a 20-pin TSSOP package.
