ACTIVE
Rating |
Catalog |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
0.8 |
Iout (max) (A) |
3 |
Output options |
Adjustable Output |
Vout (max) (V) |
3.6 |
Vout (min) (V) |
0.8 |
Noise (µVrms) |
20 |
PSRR at 100 KHz (dB) |
50 |
Iq (typ) (mA) |
3 |
Features |
Enable, Power good, Soft start |
Thermal resistance θJA (°C/W) |
27 |
Load capacitance (min) (µF) |
2.2 |
Regulated outputs (#) |
1 |
Accuracy (%) |
1 |
Dropout voltage (Vdo) (typ) (mV) |
120 |
Operating temperature range (°C) |
-40 to 125 |

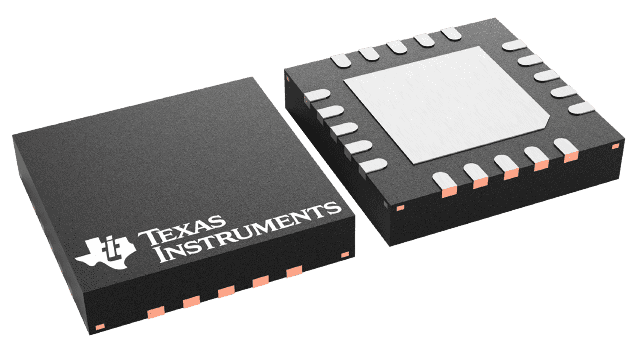

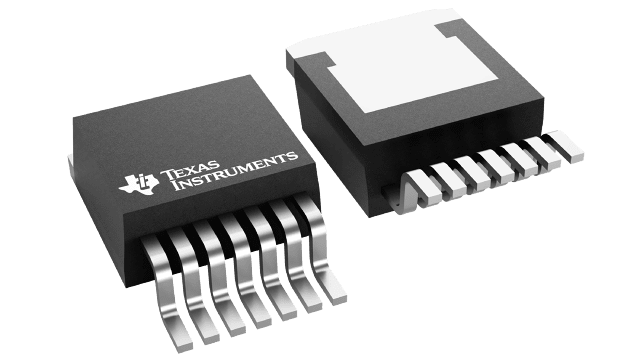

TO-263 (KTW)-7-153.924 mm² 10.1 x 15.24
VBIAS permits low VIN operation with good transient response
Stable with any output capacitor ≥2.2µF (new chip)

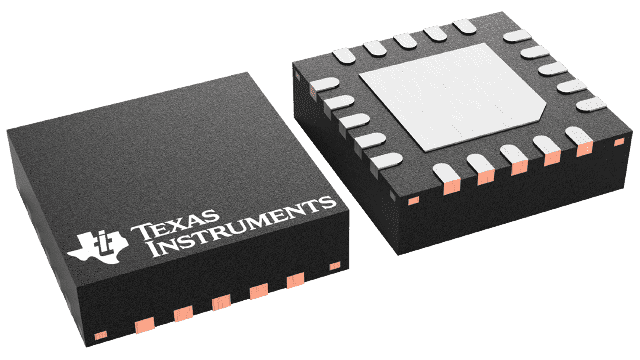

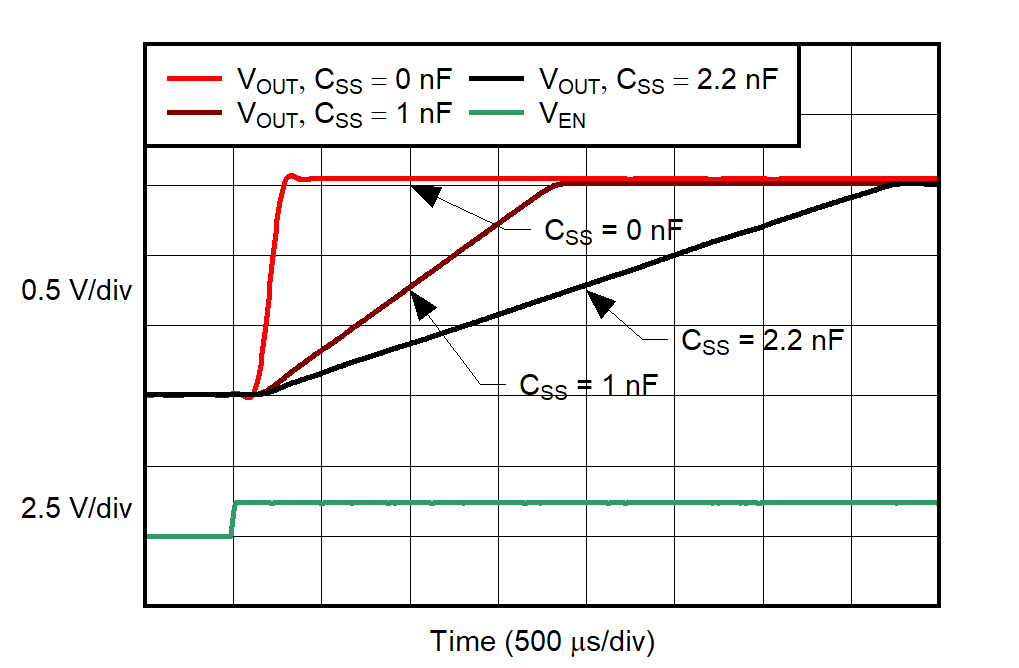

The TPS74401 low-dropout (LDO) linear regulators provide an easy-to-use robust power-management option for a wide variety of applications. The user-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulators. Complete flexibility lets the user configure a plan that meets the sequencing requirements of field-programmable gate arrays (FPGAs), digital signal processors (DSPs), and other applications with specific start-up requirements.
A precision reference and error amplifier deliver 1% accuracy over load, line, temperature, and process. The device is stable without an output capacitor (legacy chip) or with any type of capacitor ≥ 2.2µF (new chip). The device is fully specified from TJ = –40°C to +125°C.
