TPS548C26
  • TPS548C26
  • TPS548C26

TPS548C26

ACTIVE

4-V to 16-V, 35-A synchronous D-CAP+™ buck converter

Texas Instruments TPS548C26 Product Info

1 April 2026 1

Parameters

Rating

Catalog

Topology

Buck

Iout (max) (A)

35

Vin (max) (V)

16

Vin (min) (V)

4

Vout (max) (V)

5.5

Vout (min) (V)

0.8

Features

UVLO Fixed

Control mode

D-CAP+

Operating temperature range (°C)

-40 to 125

Iq (typ) (A)

0.0079

Duty cycle (max) (%)

80

Package

WQFN-FCRLF (RXX)-37-30 mm² 6 x 5

Features

  • Integrated 4.0-mΩ and 1.0-mΩ MOSFETs for 35-A continuous current operation
  • Supports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltage
  • 0.8-V to 5.5-V output voltage range
  • Precision voltage reference and differential remote sense for high output accuracy
    • ±0.5% VOUT tolerance from 0°C to 85°C TJ
    • ±1% VOUT tolerance from –40°C to 125°C TJ
  • D-CAP+™ control topology with fast transient response, supporting all ceramic output capacitors
  • Selectable internal loop compensation through SS pin
  • Selectable cycle-by-cycle valley current limit
  • Selectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operation
  • Safe start-up into pre-biased outputs
  • Programmable soft-start time from 1 ms to 8 ms
  • Open-drain power-good output (PG)
  • Overcurrent, overvoltage, undervoltage, overtemperature protections with selectable hiccup or latch-off response

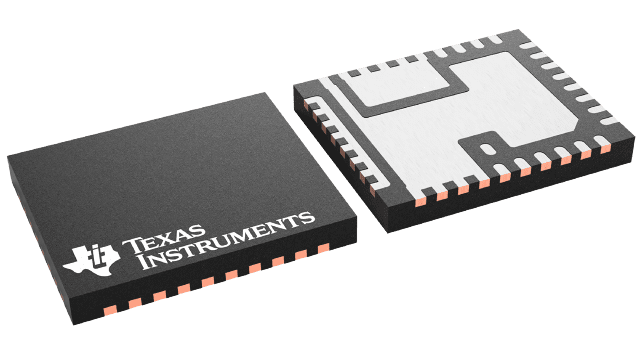

  • 5-mm × 6-mm, 37-pin WQFN-FCRLF package
  • TPS544C26 SVID/I2C converter in the same package available
  • Integrated 4.0-mΩ and 1.0-mΩ MOSFETs for 35-A continuous current operation
  • Supports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltage
  • 0.8-V to 5.5-V output voltage range
  • Precision voltage reference and differential remote sense for high output accuracy
    • ±0.5% VOUT tolerance from 0°C to 85°C TJ
    • ±1% VOUT tolerance from –40°C to 125°C TJ
  • D-CAP+™ control topology with fast transient response, supporting all ceramic output capacitors
  • Selectable internal loop compensation through SS pin
  • Selectable cycle-by-cycle valley current limit
  • Selectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operation
  • Safe start-up into pre-biased outputs
  • Programmable soft-start time from 1 ms to 8 ms
  • Open-drain power-good output (PG)
  • Overcurrent, overvoltage, undervoltage, overtemperature protections with selectable hiccup or latch-off response
  • 5-mm × 6-mm, 37-pin WQFN-FCRLF package
  • TPS544C26 SVID/I2C converter in the same package available

Description

The TPS548C26 device is a highly integrated buck converter with D-CAP+ control topology for the fast transient response. Because external compensation is not required, the device is easy to use and requires few external components. The device is well-suited for space-constrained data center applications.

The TPS548C26 device has true differential remote sense, high-performance integrated MOSFETs, and an accurate ±1%, 0.8-V reference over the full operating junction temperature range. The device features fast load-transient response, accurate load regulation and line regulation, skip-mode or FCCM operation, and programmable soft-start time. Overcurrent, overvoltage, undervoltage, overtemperature protections are provided with selectable hiccup or latch-off response.

The TPS548C26 device is a lead-free device and is RoHS compliant without exemption.

The TPS548C26 device is a highly integrated buck converter with D-CAP+ control topology for the fast transient response. Because external compensation is not required, the device is easy to use and requires few external components. The device is well-suited for space-constrained data center applications.

The TPS548C26 device has true differential remote sense, high-performance integrated MOSFETs, and an accurate ±1%, 0.8-V reference over the full operating junction temperature range. The device features fast load-transient response, accurate load regulation and line regulation, skip-mode or FCCM operation, and programmable soft-start time. Overcurrent, overvoltage, undervoltage, overtemperature protections are provided with selectable hiccup or latch-off response.

The TPS548C26 device is a lead-free device and is RoHS compliant without exemption.
