- Core
- Arm 32-bit Cortex M0+ CPU with memory protection unit, frequency up to 80MHz
- PSA-L1 Certification targeted
- Operating characteristics
- Extended temperature: –40°C up to 125°C
- Wide supply voltage range: 1.62V to 3.6V
- Memories
- Up to 512KB of flash memory with error correction code (ECC)
- 16KB data flash bank with ECC protection
- 128KB total SRAM
- SRAM (Bank 0): 64kB SRAM with ECC protection or hardware parity, and retention down to STANDBY mode
- SRAM (Bank 1): 64kB SRAM with retention down to STOP mode
- High-performance analog peripherals
- Two simultaneous sampling 12-bit 4Msps analog-to-digital converters (ADC) with up to 27 external channels
- 14-bit effective resolution at 250ksps with hardware averaging
- Three high-speed comparators (COMP) with integrated 8-bit reference DACs
- 32ns propagation delay in high-speed mode
- Support low-power mode operation down to <1µA
- One 12-bit 1Msps digital-to-analog converter (DAC) with integrated output buffer
- Programmable analog connections between ADC, COMP and DAC
- Configurable 1.4V or 2.5V internal shared voltage reference (VREF)
- Integrated temperature sensor
- Optimized low-power modes
- RUN: 123µA/MHz (CoreMark)
- SLEEP: 38µA/MHz
- STOP: 223µA at 4MHz
- STANDBY: 1.7µA at 32kHz with RTC and SRAM Bank 0 and state retention
- SHUTDOWN: 92nA with IO wake-up capability
- Intelligent digital peripherals
- 12-channel DMA controller
- Math accelerator supports DIV, SQRT, MAC and TRIG computations
- Nine timers support up to 28 PWM channels
- Two 16-bit general-purpose timers support QEI
- Four 16-bit general-purpose timers support low-power operation in STANDBY mode
- One 32-bit general-purpose timer
- Two 16-bit advanced timers with deadband support and complimentary outputs up to 12 PWM channels
- Two windowed watchdog timers (WWDT), one independent watchdog timer (IWDT)
- RTC with alarm and calendar mode
- Enhanced communication interfaces
- Seven UART interfaces
- Two supporting LIN, IrDA, DALI, Smart Card, Manchester
- Three supporting low-power operation in STANDBY mode
- Three I2C interfaces supporting up to FM+ (1Mbit/s), SMBus/PMBus, and wakeup from STOP mode
- Three SPI interfaces, with one supporting up to 32Mbits/s
- Two Controller Area Network (CAN) interfaces support CAN 2.0 A or B and CAN-FD
- Clock system
- Internal 4 to 32MHz oscillator (SYSOSC) with up to ±1.2% accuracy
- Phase-locked loop (PLL) up to 80MHz
- Internal 32kHz low-frequency oscillator (LFOSC) with ±3% accuracy
- External 4 to 48MHz crystal oscillator (HFXT)
- External 32kHz crystal oscillator (LFXT)
- External clock input
- Data integrity and encryption
- AES-128/256 accelerator with support for GCM/GMAC, CCM/CBC-MAC, CBC, CTR
- Secure key storage for up to four AES keys
- Flexible firewalls for protecting code and data
- True random number generator (TRNG)
- Cyclic redundancy checker (CRC-16, CRC-32)
- Flexible I/O features
- Up to 94 GPIOs
- Two 5V-tolerant open-drain IOs
- Three high-drive IOs with 20mA drive strength
- Four high-speed IOs
- Development support
- 2-pin serial wire debug (SWD)
- Package options
- 100-pin nFBGA (ZAW) (0.8mm pitch)
- 100-pin LQFP (PZ) (0.5mm pitch)

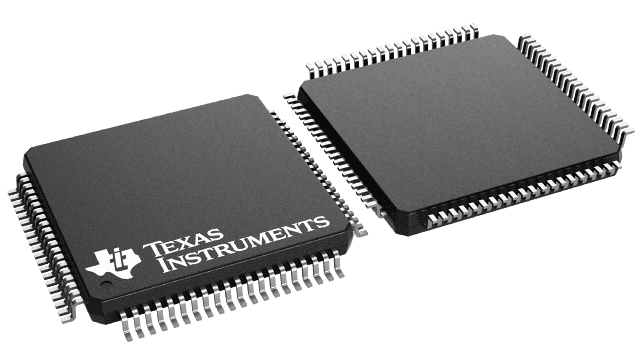

- 80-pin LQFP (PN) (0.5mm pitch)
- 64-pin LQFP (PM) (0.5mm pitch)

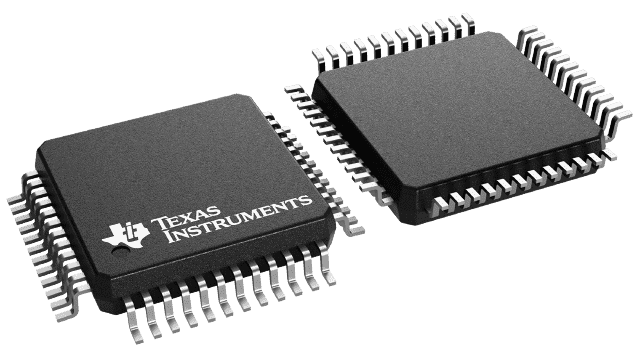

- 48-pin LQFP (PT) (0.5mm pitch)

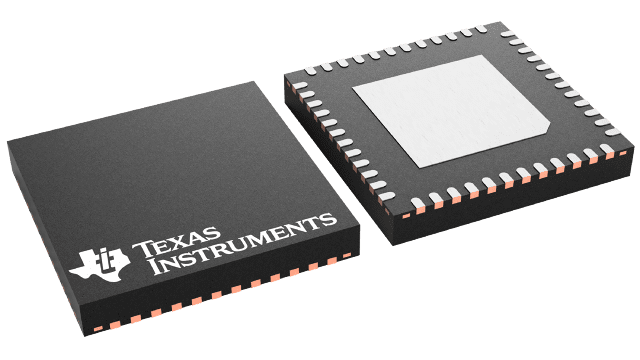

- 48-pin VQFN (RGZ) (0.5mm pitch)
- 42-pin DSBGA (YCJ) (0.35mm pitch) - Preview
- 32-pin VQFN (RHB) (0.5mm pitch)
- Family members (also see Device Comparison)
- MSPM0G1518: 256KB flash, 128KB RAM
- MSPM0G1519: 512KB flash, 128KB RAM
- MSPM0G3518: 256KB flash, 128KB RAM
- MSPM0G3519: 512KB flash, 128KB RAM
- Development kits and software (also see Tools and Software)
- Core
- Arm 32-bit Cortex M0+ CPU with memory protection unit, frequency up to 80MHz
- PSA-L1 Certification targeted
- Operating characteristics
- Extended temperature: –40°C up to 125°C
- Wide supply voltage range: 1.62V to 3.6V
- Memories
- Up to 512KB of flash memory with error correction code (ECC)
- 16KB data flash bank with ECC protection
- 128KB total SRAM
- SRAM (Bank 0): 64kB SRAM with ECC protection or hardware parity, and retention down to STANDBY mode
- SRAM (Bank 1): 64kB SRAM with retention down to STOP mode
- High-performance analog peripherals
- Two simultaneous sampling 12-bit 4Msps analog-to-digital converters (ADC) with up to 27 external channels
- 14-bit effective resolution at 250ksps with hardware averaging
- Three high-speed comparators (COMP) with integrated 8-bit reference DACs
- 32ns propagation delay in high-speed mode
- Support low-power mode operation down to <1µA
- One 12-bit 1Msps digital-to-analog converter (DAC) with integrated output buffer
- Programmable analog connections between ADC, COMP and DAC
- Configurable 1.4V or 2.5V internal shared voltage reference (VREF)
- Integrated temperature sensor
- Optimized low-power modes
- RUN: 123µA/MHz (CoreMark)
- SLEEP: 38µA/MHz
- STOP: 223µA at 4MHz
- STANDBY: 1.7µA at 32kHz with RTC and SRAM Bank 0 and state retention
- SHUTDOWN: 92nA with IO wake-up capability
- Intelligent digital peripherals
- 12-channel DMA controller
- Math accelerator supports DIV, SQRT, MAC and TRIG computations
- Nine timers support up to 28 PWM channels
- Two 16-bit general-purpose timers support QEI
- Four 16-bit general-purpose timers support low-power operation in STANDBY mode
- One 32-bit general-purpose timer
- Two 16-bit advanced timers with deadband support and complimentary outputs up to 12 PWM channels
- Two windowed watchdog timers (WWDT), one independent watchdog timer (IWDT)
- RTC with alarm and calendar mode
- Enhanced communication interfaces
- Seven UART interfaces
- Two supporting LIN, IrDA, DALI, Smart Card, Manchester
- Three supporting low-power operation in STANDBY mode
- Three I2C interfaces supporting up to FM+ (1Mbit/s), SMBus/PMBus, and wakeup from STOP mode
- Three SPI interfaces, with one supporting up to 32Mbits/s
- Two Controller Area Network (CAN) interfaces support CAN 2.0 A or B and CAN-FD
- Clock system
- Internal 4 to 32MHz oscillator (SYSOSC) with up to ±1.2% accuracy
- Phase-locked loop (PLL) up to 80MHz
- Internal 32kHz low-frequency oscillator (LFOSC) with ±3% accuracy
- External 4 to 48MHz crystal oscillator (HFXT)
- External 32kHz crystal oscillator (LFXT)
- External clock input
- Data integrity and encryption
- AES-128/256 accelerator with support for GCM/GMAC, CCM/CBC-MAC, CBC, CTR
- Secure key storage for up to four AES keys
- Flexible firewalls for protecting code and data
- True random number generator (TRNG)
- Cyclic redundancy checker (CRC-16, CRC-32)
- Flexible I/O features
- Up to 94 GPIOs
- Two 5V-tolerant open-drain IOs
- Three high-drive IOs with 20mA drive strength
- Four high-speed IOs
- Development support
- 2-pin serial wire debug (SWD)
- Package options
- 100-pin nFBGA (ZAW) (0.8mm pitch)
- 100-pin LQFP (PZ) (0.5mm pitch)
- 80-pin LQFP (PN) (0.5mm pitch)
- 64-pin LQFP (PM) (0.5mm pitch)
- 48-pin LQFP (PT) (0.5mm pitch)
- 48-pin VQFN (RGZ) (0.5mm pitch)
- 42-pin DSBGA (YCJ) (0.35mm pitch) - Preview
- 32-pin VQFN (RHB) (0.5mm pitch)
- Family members (also see Device Comparison)
- MSPM0G1518: 256KB flash, 128KB RAM
- MSPM0G1519: 512KB flash, 128KB RAM
- MSPM0G3518: 256KB flash, 128KB RAM
- MSPM0G3519: 512KB flash, 128KB RAM
- Development kits and software (also see Tools and Software)
