TPD8S009
  • TPD8S009
  • TPD8S009

TPD8S009

ACTIVE

8 channel 0.8-pF, 5.5-V, ±8-kV ESD protection diode for HDMI & Displayport

Texas Instruments TPD8S009 Product Info

1 April 2026 2

Parameters

Number of channels

8

Vrwm (V)

5.5

Bi-/uni-directional

Uni-Directional

Package name

WSON

Peak pulse power (8/20 μs) (max) (W)

25

IO capacitance (typ) (pF)

0.8

IEC 61000-4-2 contact (±V)

8000

IEC 61000-4-5 (A)

2.5

Features

ESD Protection

Clamping voltage (V)

20

Dynamic resistance (typ)

1.1

Interface type

DVI, HDMI 1.4

Breakdown voltage (min) (V)

9

IO leakage current (max) (nA)

100

Rating

Catalog

Operating temperature range (°C)

-40 to 85

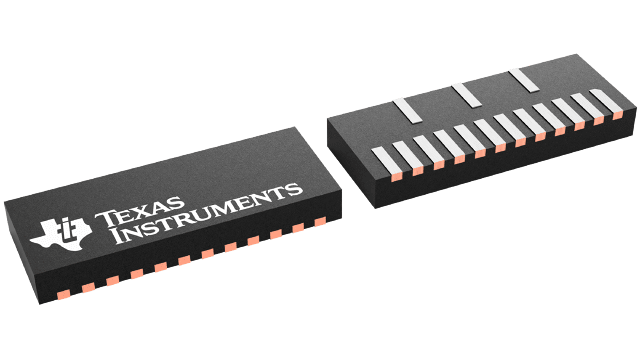

Package

WSON (DSM)-15-16.25 mm² 6.5 x 2.5

Features

  • IEC 61000-4-2 Level 4 ESD Protection
    • ±8kV Contact Discharge
  • IEC 61000-4-5 Surge Protection
    • 2.5A (8/20µs)
  • I/O Capacitance: 0.8pF (Typical)
  • Low Leakage Current: 10nA (Typical)
  • Supports High-Speed Differential Data Rates (3dB Bandwidth > 4GHz)
  • Ioff Feature
  • Industrial Temperature Range: –40°C to +85°C
  • Easy Straight-Through Routing Package for HDMI and DisplayPort Connectors
  • IEC 61000-4-2 Level 4 ESD Protection
    • ±8kV Contact Discharge
  • IEC 61000-4-5 Surge Protection
    • 2.5A (8/20µs)
  • I/O Capacitance: 0.8pF (Typical)
  • Low Leakage Current: 10nA (Typical)
  • Supports High-Speed Differential Data Rates (3dB Bandwidth > 4GHz)
  • Ioff Feature
  • Industrial Temperature Range: –40°C to +85°C
  • Easy Straight-Through Routing Package for HDMI and DisplayPort Connectors

Description

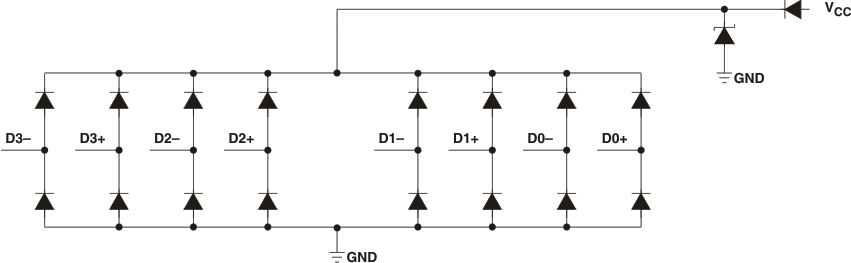

The TPD8S009 device is an eight-channel TVS diode array for ESD protection. The TPD8S009 is rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4), with ±8kV contact discharge ESD protection. The low capacitance (0.8pF) of this device, coupled with the excellent matching between differential signal pairs enables this device to provide transient voltage suppression circuit protection for high-speed idfferential data rates (3dB bandwidth > 4GHz).

The TPD8S009 is offered in a 8-pin SON package. This package offers easy design and layout, as the package matches exactly with the HDMI and DisplayPort high-speed pinout.
