TPS4H160-Q1

ACTIVE

Texas Instruments TPS4H160-Q1 Product Info

1 April 2026 1

Number of channels	4
Rating	Automotive
Operating voltage (max) (V)	40
Operating voltage (min) (V)	4
Ron (typ) (mΩ)	160
Imax (A)	2.5
Current limit (max) (A)	7
Current limit (min) (A)	0.25
Current limit type	Adjustable
FET	Internal
Features	Current sense/monitor, Digital output, Thermal shutdown, Under voltage lock out
TI functional safety category	Functional Safety-Capable
Current limit accuracy	+/- 15% @ 0.5A
Current sense accuracy	+/- 3.25mA@ 5mA
Operating temperature range (°C)	-40 to 125
Function	Adjustable current limit, Automotive load dump compatibility, Current monitoring, Inductive load compatibility, Inrush current control, Short circuit protection, Thermal shutdown

HTSSOP (PWP)-28-62.08 mm² 9.7 x 6.4

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
- Device HBM ESD classification level H3A
- Device CDM ESD classification level C4B
Functional Safety-Capable
- Documentation available to aid functional safety system design
Quad-channel 160mΩ smart high-side switch with full diagnostics
- Version A: open-drain digital output
- Version B: current-sense analog output
Wide operating voltage 3.4V to 40V
Ultra-low standby current: <500nA
High-accuracy current sense: ±15% under >25mA load
Adjustable current limit with external resistor, ±15% under >500mA load
Protection
- Short-to-GND protection by current limit (internal or external)
- Thermal shutdown with latch off option and thermal swing
- Inductive load negative voltage clamp with optimized slew rate
- Loss-of-GND and loss-of-battery protection
Diagnostics
- Overcurrent and short-to-ground detection
- Open-load and short-to-battery detection
- Global fault report for fast interrupt

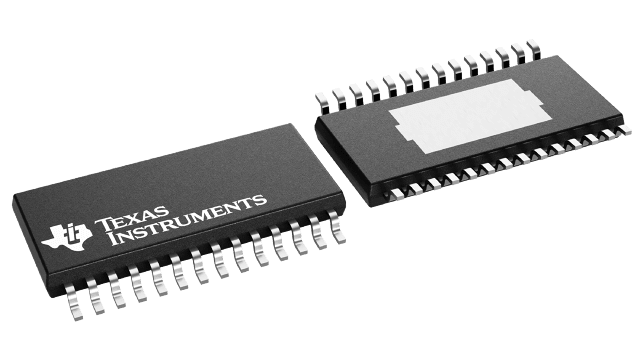

28-pin thermally-enhanced PWP package

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
- Device HBM ESD classification level H3A
- Device CDM ESD classification level C4B
Functional Safety-Capable
- Documentation available to aid functional safety system design
Quad-channel 160mΩ smart high-side switch with full diagnostics
- Version A: open-drain digital output
- Version B: current-sense analog output
Wide operating voltage 3.4V to 40V
Ultra-low standby current: <500nA
High-accuracy current sense: ±15% under >25mA load
Adjustable current limit with external resistor, ±15% under >500mA load
Protection
- Short-to-GND protection by current limit (internal or external)
- Thermal shutdown with latch off option and thermal swing
- Inductive load negative voltage clamp with optimized slew rate
- Loss-of-GND and loss-of-battery protection
Diagnostics
- Overcurrent and short-to-ground detection
- Open-load and short-to-battery detection
- Global fault report for fast interrupt
28-pin thermally-enhanced PWP package

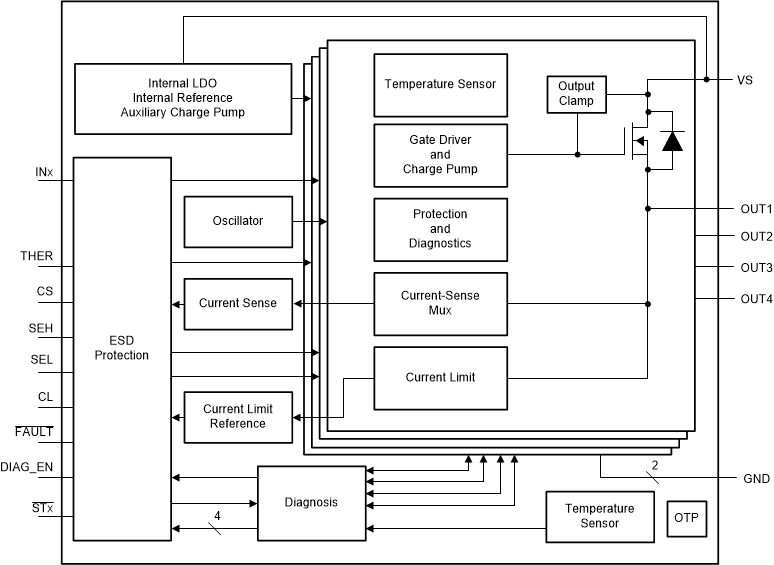

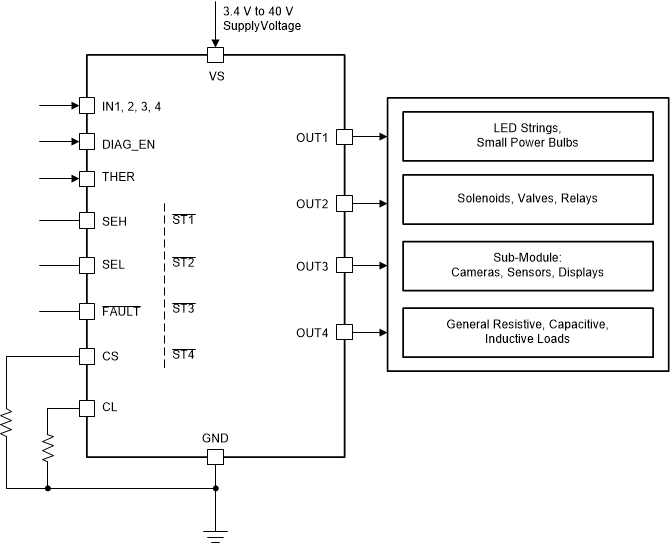

The TPS4H160-Q1 device is fully protected quad-channel smart high-side switch with four integrated 160mΩ NMOS power FETs.

Full diagnostics and high-accuracy current sense enable intelligent control of the load.

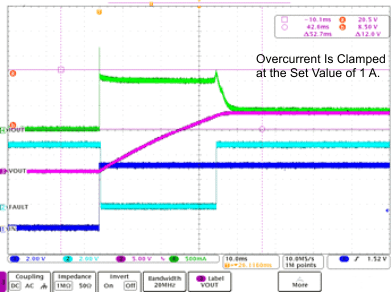

An external adjustable current limit improves the reliability of whole system by limiting the inrush or overload current.

The TPS4H160-Q1 device is fully protected quad-channel smart high-side switch with four integrated 160mΩ NMOS power FETs.

Full diagnostics and high-accuracy current sense enable intelligent control of the load.

An external adjustable current limit improves the reliability of whole system by limiting the inrush or overload current.
