Texas Instruments LM137JAN-SP Product Info

Parameters

Rating	Space
Vin (max) (V)	-4.2
Vin (min) (V)	-40
Iout (max) (A)	1.5
Output options	Adjustable Output, Negative Output
Vout (max) (V)	-1.2
Vout (min) (V)	-37
Fixed output options (V)	0
Noise (µVrms)	1110
PSRR at 100 KHz (dB)	30
Iq (typ) (mA)	0.065
Thermal resistance θJA (°C/W)	137
Load capacitance (min) (µF)	1
Regulated outputs (#)	1
Accuracy (%)	4
Dropout voltage (Vdo) (typ) (mV)	3000
Operating temperature range (°C)	-55 to 150
Radiation, SEL (MeV·cm2/mg)	Bipolar

Package

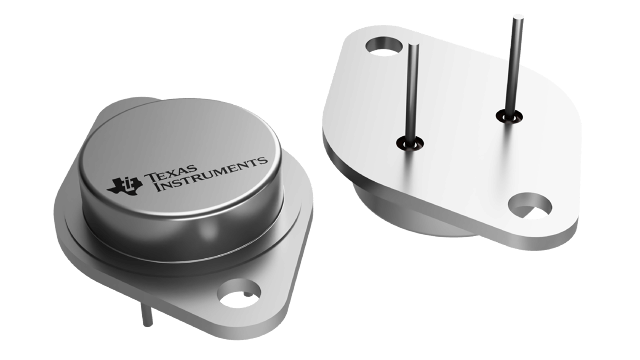

TO-CAN (K)-2-989.0252 mm² 38.938 x 25.4

Features

Output Voltage Adjustable from −37V to −1.2V
1.5A Output Current Specified, −55°C to +150°C
Line Regulation Typically 0.01%/V
Load Regulation Typically 0.3%
Excellent Thermal Regulation, 0.002%/W
77 dB Ripple Rejection
Excellent Rejection of Thermal Transients
50 ppm/°C Temperature Coefficient
Temperature-independent Current Limit
Internal Thermal Overload Protection

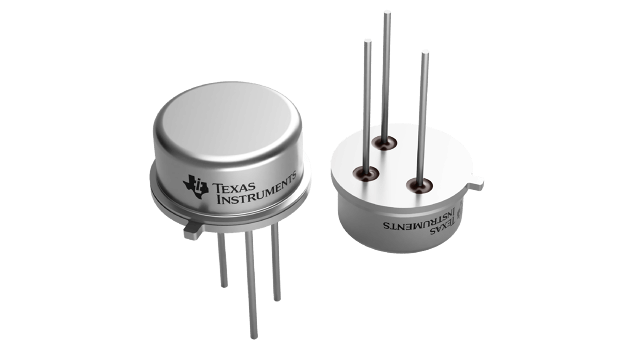

Standard 3-lead Transistor Package
Output is Short Circuit Protected

All trademarks are the property of their respective owners.

Output Voltage Adjustable from −37V to −1.2V
1.5A Output Current Specified, −55°C to +150°C
Line Regulation Typically 0.01%/V
Load Regulation Typically 0.3%
Excellent Thermal Regulation, 0.002%/W
77 dB Ripple Rejection
Excellent Rejection of Thermal Transients
50 ppm/°C Temperature Coefficient
Temperature-independent Current Limit
Internal Thermal Overload Protection
Standard 3-lead Transistor Package
Output is Short Circuit Protected

All trademarks are the property of their respective owners.

Description

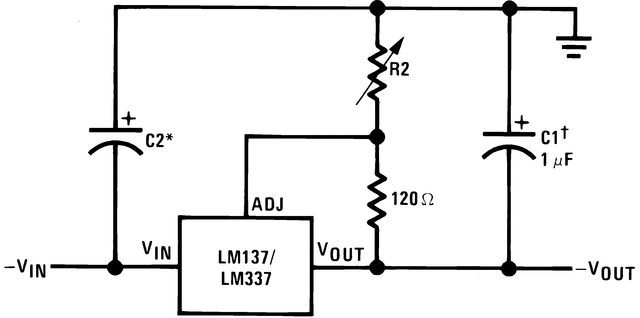

The LM137 are adjustable 3-terminal negative voltage regulators capable of supplying in excess of −1.5A over an output voltage range of −37V to −1.2V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads.

The LM137 serves a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM137 are ideal complements to the LM117 adjustable positive regulators.

The LM137 are adjustable 3-terminal negative voltage regulators capable of supplying in excess of −1.5A over an output voltage range of −37V to −1.2V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 series features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads.

The LM137 serves a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM137 are ideal complements to the LM117 adjustable positive regulators.
