LM117HVQML-SP

ACTIVE

Radiation-hardened QMLV, 4.2-V to 60-V input, 500-mA adjustable output linear regulator

Texas Instruments LM117HVQML-SP Product Info

1 April 2026 2

Parameters

Rating

Space

Vin (max) (V)

60

Vin (min) (V)

4.2

Iout (max) (A)

0.5

Output options

Adjustable Output

Vout (max) (V)

57

Vout (min) (V)

1.25

Noise (µVrms)

1710

PSRR at 100 KHz (dB)

40

Iq (typ) (mA)

5

Thermal resistance θJA (°C/W)

35

Load capacitance (min) (µF)

0

Regulated outputs (#)

1

Accuracy (%)

2

Dropout voltage (Vdo) (typ) (mV)

1500

Operating temperature range (°C)

-55 to 125

Radiation, SEL (MeV·cm2/mg)

Bipolar

Radiation, TID (typ) (krad)

100

Package

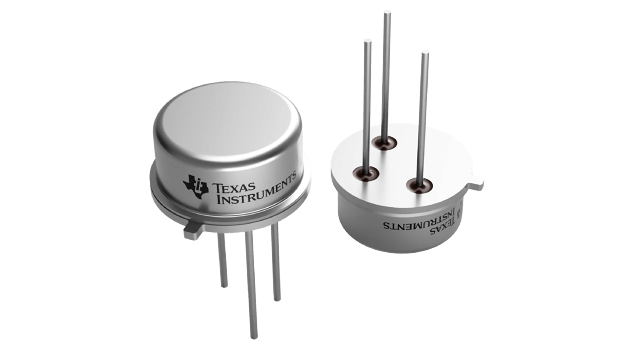

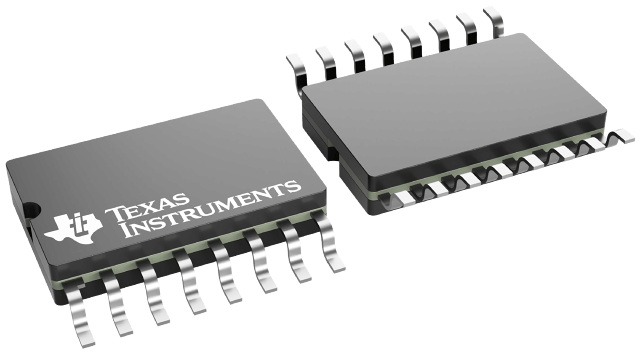

CFP (NAC)-16-62.9285 mm² 9.91 x 6.35

Features

  • Radiation hardness assured (RHA) up to a total ionizing dose (TID) of 100 krad(Si)
    • High dose rate (HDR) option at 50–300 rad(Si)/s
    • Low dose rate (LDR) option at 10 mrad(Si)/s
  • Specified 0.5-A output current
  • Adjustable output down to 1.2 V
  • Current limit constant with temperature
  • Output is short-circuit protected
  • Radiation hardness assured (RHA) up to a total ionizing dose (TID) of 100 krad(Si)
    • High dose rate (HDR) option at 50–300 rad(Si)/s
    • Low dose rate (LDR) option at 10 mrad(Si)/s
  • Specified 0.5-A output current
  • Adjustable output down to 1.2 V
  • Current limit constant with temperature
  • Output is short-circuit protected

Description

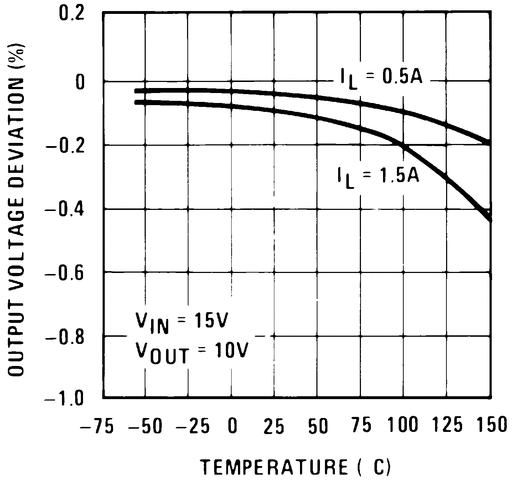

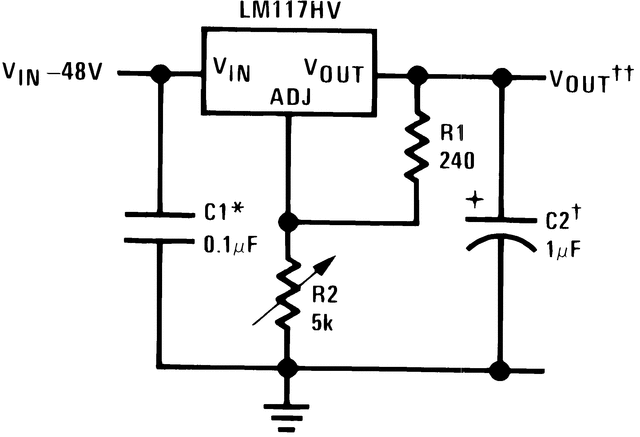

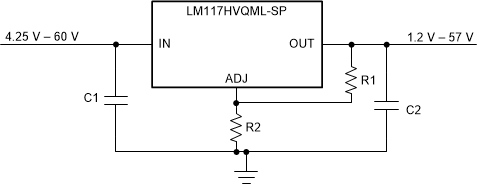

The LM117HVQML-SP adjustable 3-terminal positive voltage linear regulator is capable of supplying 0.5A over a 1.2-V to 57-V output range. It is simple to use and requires only two external resistors to set the output voltage.

The regulator is "floating" and sees only the input-to-output differential voltage, thus enabling supplies of several hundred volts to be regulated as long as the maximum input-to-output differential is not exceeded.

The flight-proven LM117HVQML-SP offers full overload protection such as current limit, thermal overload protection, and safe area protection. It is exceptionally versatile and can also be used as an adjustable switching regulator, a programmable output regulator, a precision current regulator, and more.

For lower voltage applications, the LM117QML-SP is a pin-to-pin drop-in replacement suitable for up to 41.25 V. For the negative complement, see the LM137QML-SP datasheet.
