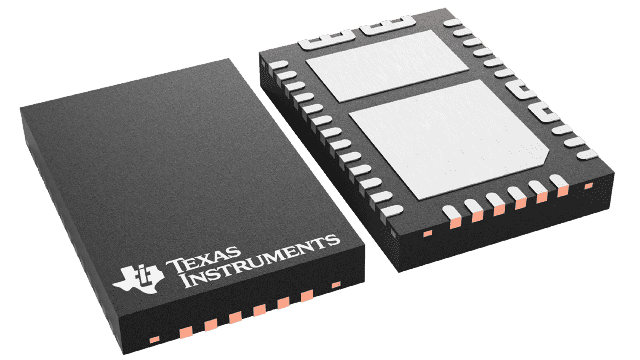

TPS25751
  • TPS25751
  • TPS25751
  • TPS25751
  • TPS25751

TPS25751

ACTIVE

USB-C® Power Delivery 3.2 controller with moisture detection and programmable power-supply

Texas Instruments TPS25751 Product Info

1 April 2026 0

Parameters

Function

Type-C

Type

PD controller

Power role

DRP, Sink

Rating

Catalog

Internal power path

20 V 5 A, 5 V 3 A

Data role

DFP, DRD, DRP

Alternate mode

No

External power-path control

NFET

Dead battery support

Yes

Operating temperature range (°C)

-40 to 125

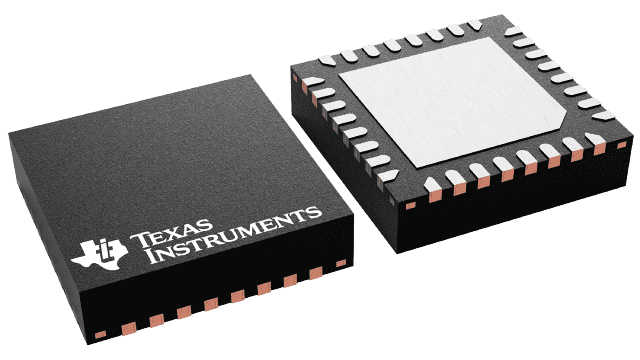

Package

VQFN (RSM)-32-16 mm² 4 x 4

Features

  • PD Controller is certified by the USB-IF for PD3.1
    • PD3.1 silicon is required for certification of new USB PD designs
    • TPS25751 TID#: 10306
    • Article on PD2.0 vs. PD3.0
  • Optimized for USB Type-C PD power applications
  • Programmable Power Supply (PPS)
    • Supports PPS source & sink
    • Standalone PPS source control TI battery chargers
    • Programmable interface for PPS sink
  • Liquid Detection
    • Measures directly at the Type-C connector
    • Integrated error handling and protection
  • Integrated fully managed power paths
    • Integrated 5V, 3A, 36mΩ sourcing switch (TPS25751S and TPS25751D)
    • Integrated 20V, 5A, 16mΩ bi-directional load switch (TPS25751D only)
  • Integrated robust power path protection
    • Integrated reverse current protection, undervoltage protection, overvoltage protection, and slew rate control the high-voltage bi-directional power path
    • Integrated undervoltage and overvoltage protection and current limiting for inrush current protection for the 5V/3A source power path
    • 26V tolerant CC pins for robust protection when connected to non-compliant devices
  • USB Type-C Power Delivery (PD) controller
    • 10 configurable GPIOs
    • BC1.2 advertisement/detection support
    • 3.3V LDO output for dead battery support
    • Power supply from 3.3V or VBUS source
    • 1 I2C controller port
    • 1 I2C target port
  • PD Controller is certified by the USB-IF for PD3.1
    • PD3.1 silicon is required for certification of new USB PD designs
    • TPS25751 TID#: 10306
    • Article on PD2.0 vs. PD3.0
  • Optimized for USB Type-C PD power applications
  • Programmable Power Supply (PPS)
    • Supports PPS source & sink
    • Standalone PPS source control TI battery chargers
    • Programmable interface for PPS sink
  • Liquid Detection
    • Measures directly at the Type-C connector
    • Integrated error handling and protection
  • Integrated fully managed power paths
    • Integrated 5V, 3A, 36mΩ sourcing switch (TPS25751S and TPS25751D)
    • Integrated 20V, 5A, 16mΩ bi-directional load switch (TPS25751D only)
  • Integrated robust power path protection
    • Integrated reverse current protection, undervoltage protection, overvoltage protection, and slew rate control the high-voltage bi-directional power path
    • Integrated undervoltage and overvoltage protection and current limiting for inrush current protection for the 5V/3A source power path
    • 26V tolerant CC pins for robust protection when connected to non-compliant devices
  • USB Type-C Power Delivery (PD) controller
    • 10 configurable GPIOs
    • BC1.2 advertisement/detection support
    • 3.3V LDO output for dead battery support
    • Power supply from 3.3V or VBUS source
    • 1 I2C controller port
    • 1 I2C target port

Description

The TPS25751 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for applications supporting USB-C PD Power. The TPS25751 integrates fully managed power paths with robust protection for a complete USB-C PD solution. The TPS25751 also integrates control for external battery charger ICs for added ease of use and reduced time to market. The intuitive web based GUI asks the user a few simple questions on the applications needs using clear block diagrams and simple multiple-choice questions. As a result, the GUI creates the configuration image for the user’s application, reducing much of the complexity associated with competitive USB PD solutions.

The TPS25751 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for applications supporting USB-C PD Power. The TPS25751 integrates fully managed power paths with robust protection for a complete USB-C PD solution. The TPS25751 also integrates control for external battery charger ICs for added ease of use and reduced time to market. The intuitive web based GUI asks the user a few simple questions on the applications needs using clear block diagrams and simple multiple-choice questions. As a result, the GUI creates the configuration image for the user’s application, reducing much of the complexity associated with competitive USB PD solutions.
