0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15 |
BW at Acl (MHz) |
370 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
2800 |
Architecture |
Bipolar, Fully Differential ADC Driver |
Vn at flatband (typ) (nV√Hz) |
6.8 |
Iq per channel (typ) (mA) |
23 |
Rail-to-rail |
No |
Vos (offset voltage at 25°C) (max) (mV) |
4 |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (mA) |
120 |
2nd harmonic (dBc) |
83 |
3rd harmonic (dBc) |
97 |
Frequency of harmonic distortion measurement (MHz) |
8 |
GBW (typ) (MHz) |
300 |
Input bias current (max) (pA) |
4600000 |
CMRR (typ) (dB) |
80 |
Rating |
Catalog |

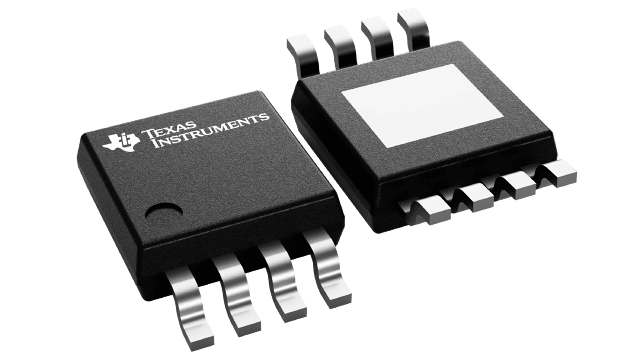

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

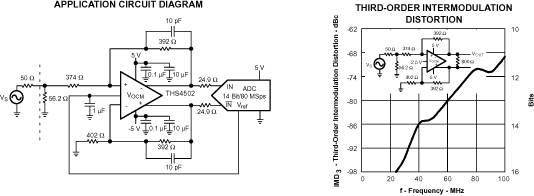

The THS4502 and THS4503 are high-performance fully differential amplifiers from Texas Instruments. The THS4502, featuring power-down capability, and the THS4503, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz. Package options include the 8-pin SOIC and the 8-pin MSOP with PowerPAD for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability.
