0
ACTIVE
Configuration |
1:1 SPST |
Number of channels |
4 |
Power supply voltage - single (V) |
5, 12, 16, 20, 36 |
Power supply voltage - dual (V) |
+/-10, +/-15, +/-18, +/-5 |
Protocols |
Analog |
Ron (typ) (Ω) |
2 |
CON (typ) (pF) |
145 |
ON-state leakage current (max) (µA) |
0.06 |
Supply current (typ) (µA) |
35 |
Bandwidth (MHz) |
90 |
Operating temperature range (°C) |
-40 to 125 |
Features |
1.8-V compatible control inputs, Break-before-make, Fail-safe logic |
Input/output continuous current (max) (A) |
0.37 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
36 |
Supply voltage (max) (V) |
36 |
Negative rail supply voltage (max) (V) |
-18 |

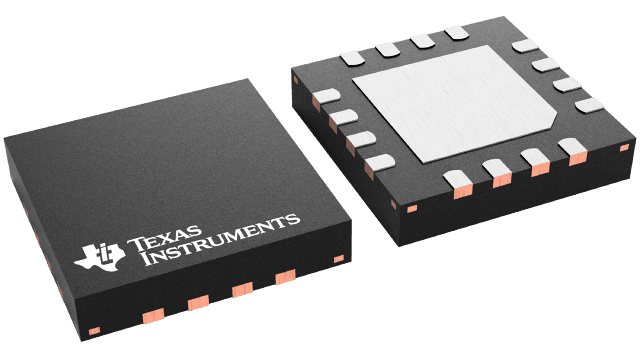

TSSOP (PW)-16-32 mm² 5 x 6.4

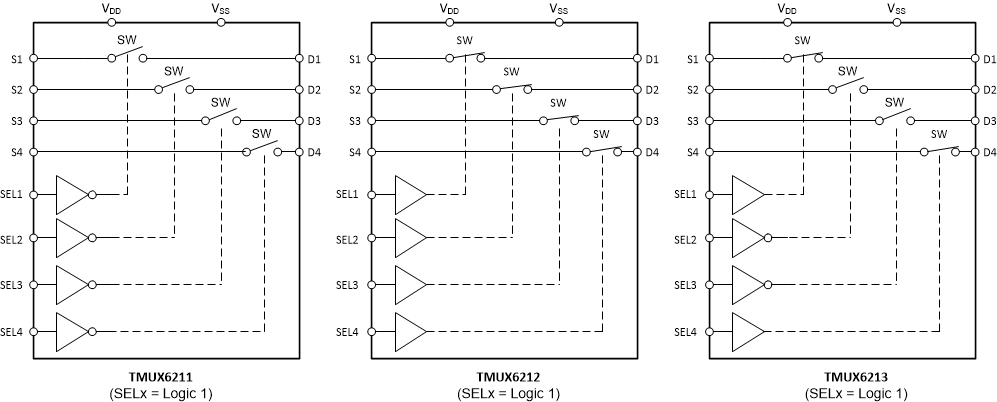

The TMUX6211, TMUX6212, and TMUX6213 are complementary metal-oxide semiconductor (CMOS) switches with four independently selectable 1:1, single-pole, single-throw (SPST) switch channels. The devices work with a single supply (4.5V to 36V), dual supplies (±4.5V to ±18V), or asymmetric supplies (such as VDD = 12V, VSS = –5V). The TMUX621x supports bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from VSS to VDD.
The switches of the TMUX621x are controlled with appropriate logic control inputs on the SELx pins. The TMUX621x are part of the precision switches and multiplexers family of devices and have very low on and off leakage currents allowing them to be used in high precision measurement applications.
