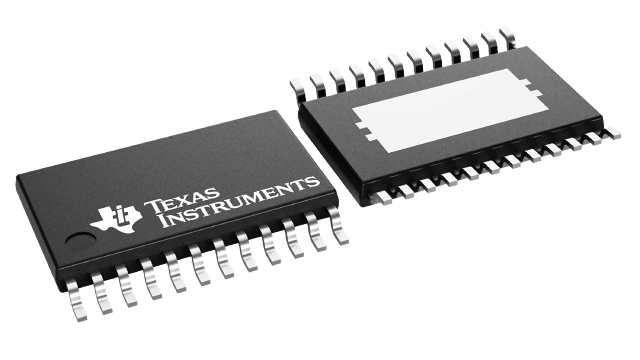

TPA3123D2
  • TPA3123D2

TPA3123D2

ACTIVE

25-W stereo, 10- to 30-V supply, analog input Class-D audio amplifier w/ SE outputs

Texas Instruments TPA3123D2 Product Info

1 April 2026 4

Parameters

Audio input type

Analog Input

Architecture

Class-D

Speaker channels (max)

Stereo

Control interface

Hardware

Output power (W)

25

Power stage supply (max) (V)

30

Power stage supply (min) (V)

10

THD + N at 1 kHz (%)

0.08

Load (min) (Ω)

4

Analog supply voltage (min) (V)

10

Analog supply voltage (max) (V)

30

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

HTSSOP (PWP)-24-49.92 mm² 7.8 x 6.4

Features

  • 25-W/ch into a 4- Load from a 27-V Supply
  • 20-W/ch into a 4- Load from a 24-V Supply
  • Operates from 10 V to 30 V
  • Efficient Class-D Operation Eliminates Need for Heat Sinks
  • Four Selectable, Fixed-Gain Settings
  • Internal Oscillator (No External Components Required)
  • Single-Ended Analog Inputs
  • Thermal and Short-Circuit Protection With Auto Recovery
  • Space-Saving Surface-Mount 24-Pin TSSOP Package
  • Pin-to-Pin compatible with TPA3120D2
  • Advanced Power-Off Pop Reduction
  • APPLICATIONS
    • Televisions

System Two, Audio Precision are trademarks of Audio Precision, Inc.

  • 25-W/ch into a 4- Load from a 27-V Supply
  • 20-W/ch into a 4- Load from a 24-V Supply
  • Operates from 10 V to 30 V
  • Efficient Class-D Operation Eliminates Need for Heat Sinks
  • Four Selectable, Fixed-Gain Settings
  • Internal Oscillator (No External Components Required)
  • Single-Ended Analog Inputs
  • Thermal and Short-Circuit Protection With Auto Recovery
  • Space-Saving Surface-Mount 24-Pin TSSOP Package
  • Pin-to-Pin compatible with TPA3120D2
  • Advanced Power-Off Pop Reduction
  • APPLICATIONS
    • Televisions

System Two, Audio Precision are trademarks of Audio Precision, Inc.

Description

The TPA3123D2 is a 25-W (per channel) efficient, Class-D audio power amplifier for driving stereo speakers in a single-ended configuration or a mono speaker in a bridge-tied-load configuration. The TPA3123D2 can drive stereo speakers as low as 4 . The efficiency of the TPA3123D2 eliminates the need for an external heat sink when playing music.

The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB.

The patented start-up and shut-down sequences minimize pop noise in the speakers without additional circuitry.
