ACTIVE

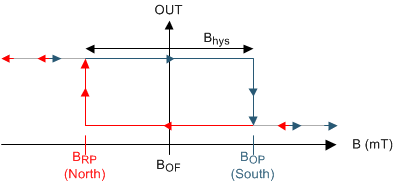

Type |
Latch |
Operate point (typ) (mT) |
1, 3 |
Operate point (max) (mT) |
1.7, 4 |
Release point (min) (mT) |
-4, -1.7 |
Supply current (µA) |
6000 |
Bandwidth (kHz) |
60 |
Supply voltage (min) (V) |
2.5 |
Supply voltage (max) (V) |
26 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Output |
Open drain |
SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37
The TMAG5115 device is a high-performance Hall-effect latch sensor with fast propagation delay and low jitter. The device also has high sensitivity stability over temperature and offers integrated protection features designed for applications that require high RPM. The combination of low jitter and low propagation delay can help increase power efficiency and reduce parasitic system-level noise.
The device has an open-drain output stage with 15mA current sink capability. The TMAG5115 wide operating voltage range of 2.5V to 26V is designed for a wide range of industrial and commercial applications. Internal protection functions are provided for output short-circuit, overcurrent, and overtemperature conditions.
The TMAG5115 is available in the industry standard SOT-23 package.
