TLV320AIC3104
  • TLV320AIC3104
  • TLV320AIC3104

TLV320AIC3104

ACTIVE

Low-Power Stereo CODEC with 6 Inputs, 6 Outputs, HP Amp and Enhanced Digital Effects

Texas Instruments TLV320AIC3104 Product Info

1 April 2026 1

Parameters

Number of ADC channels

2

Number of DAC channels

2

Digital audio interface

DSP, I2S, L, R, TDM

Control interface

I2C

Analog inputs

6

Analog outputs

6

Features

Matrix mixing, Notch filter, Phase-locked loop (PLL), Stereo headphone amplifier

Sampling rate (max) (kHz)

96

Rating

Catalog

ADC SNR (typ) (dB)

92

DAC SNR (typ) (dB)

102

Operating temperature range (°C)

-40 to 85

Package

VQFN (RHB)-32-25 mm² 5 x 5

Features

  • Stereo audio DAC:
    • 102-dBA signal-to-noise ratio
    • 16-, 20-, 24-, or 32-bit data
    • Supports sample rates from 8 kHz to 96 kHz
    • 3D, bass, treble, EQ, or de-emphasis effects
    • Flexible power saving modes and performance are available
  • Stereo audio ADC:
    • 92-dBA signal-to-noise ratio
    • Supports sample rates from 8 kHz to 96 kHz
    • Digital signal processing and noise filtering available during record
  • Six audio input pins:
    • One stereo pair of single-ended inputs
    • One stereo pair of fully differential inputs
  • Six audio output drivers:
    • Stereo fully differential or single-ended headphone drivers
    • Fully differential stereo line outputs
  • Low power: 14-mW stereo 48-kHz playback with 3.3-V analog supply
  • Ultra-low-power mode with passive analog bypass
  • Programmable I/O analog gains
  • Automatic gain control (AGC) for record
  • Programmable microphone bias level
  • Programmable PLL for flexible clock generation
  • I2C control bus
  • Audio serial data bus supports I2S, left- and right-justified, DSP, and TDM modes
  • Extensive modular power control
  • Power supplies:
    • Analog: 2.7 V to 3.6 V
    • Digital Core: 1.525 V to 1.95 V
    • Digital I/O: 1.1 V to 3.6 V
  • Package: 5-mm × 5-mm, 32-pin VQFN
  • Stereo audio DAC:
    • 102-dBA signal-to-noise ratio
    • 16-, 20-, 24-, or 32-bit data
    • Supports sample rates from 8 kHz to 96 kHz
    • 3D, bass, treble, EQ, or de-emphasis effects
    • Flexible power saving modes and performance are available
  • Stereo audio ADC:
    • 92-dBA signal-to-noise ratio
    • Supports sample rates from 8 kHz to 96 kHz
    • Digital signal processing and noise filtering available during record
  • Six audio input pins:
    • One stereo pair of single-ended inputs
    • One stereo pair of fully differential inputs
  • Six audio output drivers:
    • Stereo fully differential or single-ended headphone drivers
    • Fully differential stereo line outputs
  • Low power: 14-mW stereo 48-kHz playback with 3.3-V analog supply
  • Ultra-low-power mode with passive analog bypass
  • Programmable I/O analog gains
  • Automatic gain control (AGC) for record
  • Programmable microphone bias level
  • Programmable PLL for flexible clock generation
  • I2C control bus
  • Audio serial data bus supports I2S, left- and right-justified, DSP, and TDM modes
  • Extensive modular power control
  • Power supplies:
    • Analog: 2.7 V to 3.6 V
    • Digital Core: 1.525 V to 1.95 V
    • Digital I/O: 1.1 V to 3.6 V
  • Package: 5-mm × 5-mm, 32-pin VQFN

Description

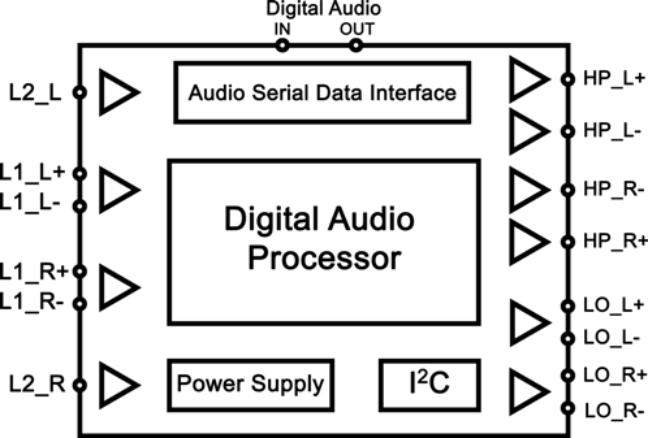

The TLV320AIC3104 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. The device includes extensive register-based power control is included, thus enabling stereo 48-kHz DAC playback as low as 14 mW from a 3.3-V analog supply, making the device ideal for portable battery-powered audio and telephony applications.

The record path of the TLV320AIC3104 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. During record, programmable filters can remove audible noise that can occur during optical zooming in digital cameras. The playback path includes mix/mux capability from the stereo DAC and selected inputs, through programmable volume controls, to the various outputs.

The TLV320AIC3104 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. The device includes extensive register-based power control is included, thus enabling stereo 48-kHz DAC playback as low as 14 mW from a 3.3-V analog supply, making the device ideal for portable battery-powered audio and telephony applications.

The record path of the TLV320AIC3104 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. During record, programmable filters can remove audible noise that can occur during optical zooming in digital cameras. The playback path includes mix/mux capability from the stereo DAC and selected inputs, through programmable volume controls, to the various outputs.
