ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
16 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
4.5 |
Slew rate (typ) (V/µs) |
21 |
Vos (offset voltage at 25°C) (max) (mV) |
0.75 |
Iq per channel (typ) (mA) |
0.56 |
Vn at 1 kHz (typ) (nV√Hz) |
10.8 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.3 |
Features |
Cost Optimized, EMI Hardened, High Cload Drive, MUX Friendly, Shutdown, Small Size |
CMRR (typ) (dB) |
125 |
Iout (typ) (A) |
0.075 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.025 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |

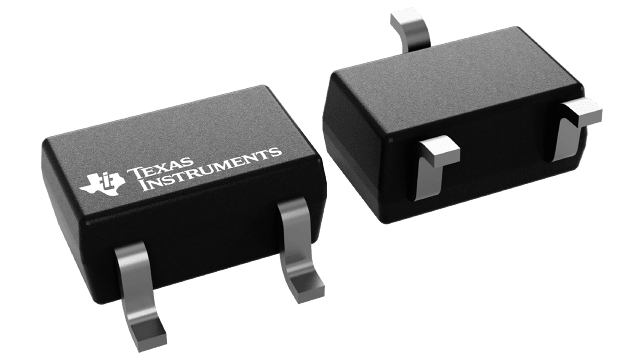

SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

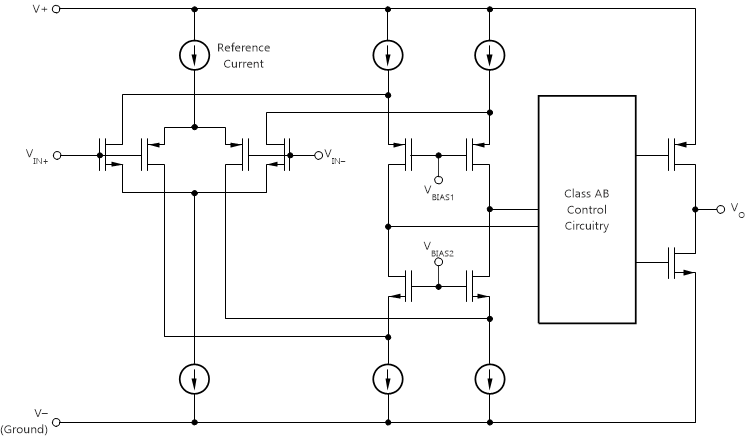

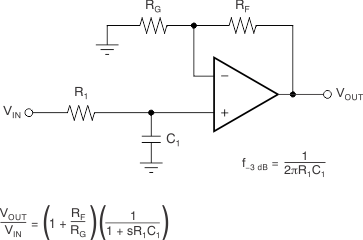

The TLV915x family (TLV9151, TLV9152, and TLV9154) is a family of 16-V, general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including rail-to-rail output, low offset (±125 µV, typical), low offset drift (±0.3 µV/°C, typical), and 4.5-MHz bandwidth.
Convenient features such as wide differential input-voltage range, high output current (±75 mA), high slew rate (20 V/µs), and low noise (10.5 nV/√Hz) make the TLV915x a robust, low-noise operational amplifier for industrial applications.
The TLV915x family of op amps is available in standard packages and is specified from –40°C to 125°C.
