OPA607

ACTIVE

Low power, precision, 50 MHz decompensated CMOS operational amplifier for cost sensitive systems

Texas Instruments OPA607 Product Info

1 April 2026 4

Parameters

Architecture

FET / CMOS Input, Voltage FB

Number of channels

1

Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)

2.2

Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)

5.5

GBW (typ) (MHz)

50

BW at Acl (MHz)

10

Acl, min spec gain (V/V)

6

Slew rate (typ) (V/µs)

24

Vn at flatband (typ) (nV√Hz)

3.8

Vn at 1 kHz (typ) (nV√Hz)

3.8

Iq per channel (typ) (mA)

0.9

Vos (offset voltage at 25°C) (max) (mV)

0.6

Rail-to-rail

In to V-, Out

Features

Decompensated, Shutdown

Rating

Catalog

Operating temperature range (°C)

-40 to 125

CMRR (typ) (dB)

100

Input bias current (max) (pA)

10

Offset drift (typ) (µV/°C)

0.3

Iout (typ) (mA)

20

2nd harmonic (dBc)

-105

3rd harmonic (dBc)

-95

Frequency of harmonic distortion measurement (MHz)

0.02

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Gain Bandwidth Product (GBW): 50 MHz
  • Quiescent Current: 900 µA (Typical)
  • Broadband Noise: 3.8 nV/√Hz
  • Input Offset Drift: 1.5 µV/°C (Maximum)
  • Offset Voltage: 120 µV (Typical)
  • Input Bias Current: 10 pA (Maximum)
  • Rail-to-Rail Output (RRO)
  • Decompensated, Gain ≥ 6 V/V (Stable)
  • Power Down Current: 1 µA (Maximum)
  • Supply Range: 2.2 V to 5.5 V
  • Gain Bandwidth Product (GBW): 50 MHz
  • Quiescent Current: 900 µA (Typical)
  • Broadband Noise: 3.8 nV/√Hz
  • Input Offset Drift: 1.5 µV/°C (Maximum)
  • Offset Voltage: 120 µV (Typical)
  • Input Bias Current: 10 pA (Maximum)
  • Rail-to-Rail Output (RRO)
  • Decompensated, Gain ≥ 6 V/V (Stable)
  • Power Down Current: 1 µA (Maximum)
  • Supply Range: 2.2 V to 5.5 V

Description

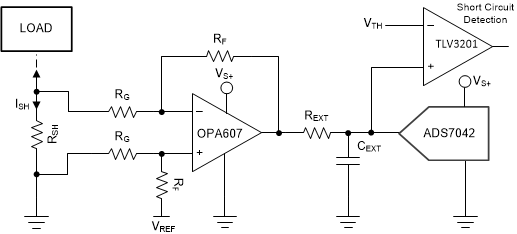

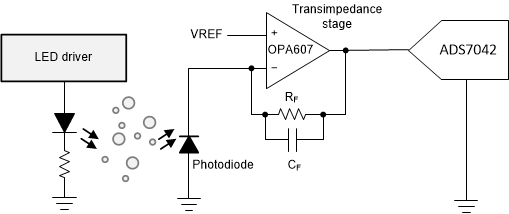

The OPA607 and OPA2607 devices are decompensated, minimum gain of 6 V/V stable, general-purpose CMOS operational amplifier with low noise of 3.8 nV/√ Hz and a GBW of 50 MHz. The low noise and wide bandwidth of the OPAx607 devices make them attractive for general-purpose applications which require a good balance between cost and performance. The high-impedance CMOS inputs make the OPAx607 devices an ideal amplifier to interface with sensors with high output impedance (for example, piezoelectric transducers).

The OPAx607 devices feature a Power Down mode with a maximum quiescent current of less than 1 µA, making the device suitable for use in portable battery-powered applications. The rail-to-rail output (RRO) of the OPAx607 devices can swing up to 8 mV from the supply rails, maximizing dynamic range.

The OPAx607 is optimized for low supply voltage operation as low as 2.2 V (±1.1 V) and up to 5.5 V (±2.75 V), and is specified over the temperature range of –40°C to +125°C.
