Texas Instruments TLV7031-Q1 Product Info

Parameters

Number of channels	1
Output type	Push-Pull
Propagation delay time (µs)	3
Vs (max) (V)	6.5
Vs (min) (V)	1.6
Rating	Automotive
Features	Fail-safe, Hysteresis, POR
Iq per channel (typ) (mA)	0.00039
Vos (offset voltage at 25°C) (max) (mV)	8
Rail-to-rail	In
Operating temperature range (°C)	-40 to 125
Input bias current (±) (max) (nA)	0.002
VICR (max) (V)	6.6
VICR (min) (V)	0
TI functional safety category	Functional Safety-Capable

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
- Device HBM ESD classification level 2
- Device CDM ESD classification level C5
Wide supply voltage range of 1.6 V to 6.5 V
Quiescent supply current of 315 nA
Low propagation delay of 3 µs
Internal hysteresis of 6.5 mV
Rail-to-rail common-mode input voltage
Internal Power-On-Reset provides a known startup condition
No phase reversal for overdriven inputs
Push-pull output (TLV703x-Q1)
Open-drain output (TLV704x-Q1)
–40°C to 125°C Operating temperature
Functional Safety Capable
- Documentation available to aid functional safety system design (TLV70x1-Q1)
- Documentation available to aid functional safety system design (TLV70x2-Q1)

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
- Device HBM ESD classification level 2
- Device CDM ESD classification level C5
Wide supply voltage range of 1.6 V to 6.5 V
Quiescent supply current of 315 nA
Low propagation delay of 3 µs
Internal hysteresis of 6.5 mV
Rail-to-rail common-mode input voltage
Internal Power-On-Reset provides a known startup condition
No phase reversal for overdriven inputs
Push-pull output (TLV703x-Q1)
Open-drain output (TLV704x-Q1)
–40°C to 125°C Operating temperature
Functional Safety Capable
- Documentation available to aid functional safety system design (TLV70x1-Q1)
- Documentation available to aid functional safety system design (TLV70x2-Q1)

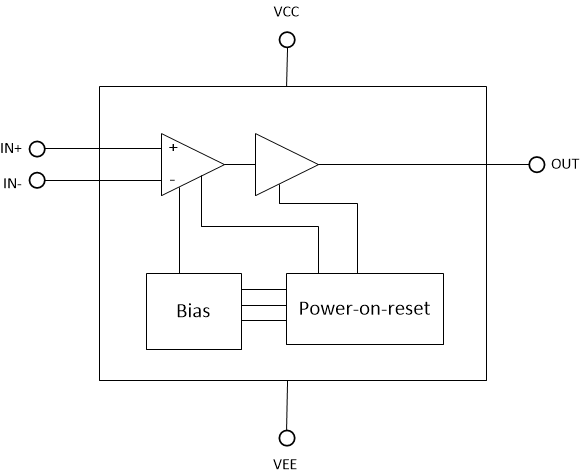

Description

The TLV703x-Q1/TLV704x-Q1 are low-voltage, nanopower comparators with rail-to-rail inputs. These comparators are applicable for space-critical and power conscious designs like infotainment, telematics, and head unit applications.

The TLV703x-Q1 and TLV704x-Q1 offer an excellent combination of power and speed. The benefit of fast response time at nanopower enables power-conscious systems to monitor and respond quickly to fault conditions. With an operating voltage range of 1.6 V to 6.5 V, these comparators are compatible with 1.8 V, 3 V, and 5 V systems.

The TLV703x-Q1 and TLV704x-Q1 also ensure no output phase inversion with overdriven inputs and internal hysteresis, so engineers can use this family of comparators for precision voltage monitoring in harsh, noisy environments where slow-moving input signals must be converted into clean digital outputs.

The TLV703x-Q1 have a push-pull output stage capable of sinking and sourcing milliamps of current. The TLV704x-Q1 have an open-drain output stage that can be pulled beyond V_CC.
