Texas Instruments BQ25619 Product Info

Parameters

Rating	Catalog
Number of series cells	1
Cell chemistry	Li-Ion/Li-Polymer, Lithium Phosphate/LiFePO4
Charge current (max) (A)	1.5
Features	BAT temp thermistor monitoring (JEITA profile), IC thermal regulation, IINDPM (Input current limit), Input OVP, Power Path, USB OTG integrated, VINDPM (Input voltage threshold to maximize adaptor power)
Vin (min) (V)	3.9
Vin (max) (V)	13.5
Absolute max Vin (max) (V)	22
Control topology	Switch-Mode Buck
Battery charge voltage (min) (V)	3.5
Battery charge voltage (max) (V)	4.52
Control interface	I2C
Operating temperature range (°C)	-40 to 85

Package

WQFN (RTW)-24-16 mm² 4 x 4

Features

Single chip solution to charge wearable accessories from adapter or battery
High-efficiency, 1.5MHz, synchronous switch-mode buck charger
- 95.5% charge efficiency at 0.5A and 94.5% efficiency at 1A
- ±0.5% charge voltage regulation (10mV step)
- I2C programmable JEITA profile of charge voltage, current and temperature thresholds
- Low termination current with high accuracy 20mA±10mA
- Small inductor form factor of 2.5 x 2.0 x 1.0mm3
Boost mode with output from 4.6V to 5.15V
- 94% boost efficiency at 1A output
- Integrated control to switch between Charge and Boost mode
- PMID_GOOD pin control external PMOS FET for protection against fault conditions
Single input supporting USB input, high-voltage adapter, or wireless power
- Support 4V to 13.5V input voltage range with 22V absolute max input rating
- Programmable input current limit (IINDPM) with I2C (100mA to 3.2A, 100mA/step)
- Maximum power tracking by input voltage limit (VINDPM) up to 5.4V
- VINDPM threshold automatically tracks battery voltage
Narrow VDC (NVDC) power path management
- System instant-on with no battery or deeply discharged battery
Flexible I2C configuration and autonomous charging for optimal system performance
High integration includes all MOSFETs, current sensing and loop compensation
Low RDSON 19.5mΩ BATFET to minimize charging loss and extend battery run time
- BATFET control for Ship mode, and full system reset with and without adapter
7µA low battery leakage current in Ship mode
9.5µA low battery leakage current with system standby
High accuracy battery charging profile
- ±5% charge current regulation
- ±7.5% input current regulation
- Remote battery sensing to charge faster
- Programmable top-off timer for full battery charging
Safety Related Certifications:
- IEC 62368-1 CB Certification

Single chip solution to charge wearable accessories from adapter or battery
High-efficiency, 1.5MHz, synchronous switch-mode buck charger
- 95.5% charge efficiency at 0.5A and 94.5% efficiency at 1A
- ±0.5% charge voltage regulation (10mV step)
- I2C programmable JEITA profile of charge voltage, current and temperature thresholds
- Low termination current with high accuracy 20mA±10mA
- Small inductor form factor of 2.5 x 2.0 x 1.0mm3
Boost mode with output from 4.6V to 5.15V
- 94% boost efficiency at 1A output
- Integrated control to switch between Charge and Boost mode
- PMID_GOOD pin control external PMOS FET for protection against fault conditions
Single input supporting USB input, high-voltage adapter, or wireless power
- Support 4V to 13.5V input voltage range with 22V absolute max input rating
- Programmable input current limit (IINDPM) with I2C (100mA to 3.2A, 100mA/step)
- Maximum power tracking by input voltage limit (VINDPM) up to 5.4V
- VINDPM threshold automatically tracks battery voltage
Narrow VDC (NVDC) power path management
- System instant-on with no battery or deeply discharged battery
Flexible I2C configuration and autonomous charging for optimal system performance
High integration includes all MOSFETs, current sensing and loop compensation
Low RDSON 19.5mΩ BATFET to minimize charging loss and extend battery run time
- BATFET control for Ship mode, and full system reset with and without adapter
7µA low battery leakage current in Ship mode
9.5µA low battery leakage current with system standby
High accuracy battery charging profile
- ±5% charge current regulation
- ±7.5% input current regulation
- Remote battery sensing to charge faster
- Programmable top-off timer for full battery charging
Safety Related Certifications:
- IEC 62368-1 CB Certification

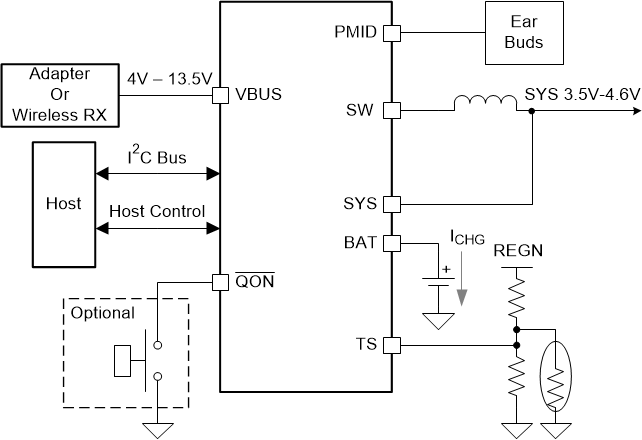

Description

The BQ25618/619 integrates charge, boost converter and voltage protection in a single device. It offers the industrys lowest termination current for switching chargers to charge wearable devices by full battery capacity. The BQ25618/619 best-in-class low quiescent current reduces battery leakage down to 6uA in Ship mode, which conserves battery energy to double the shelf life for the device. The BQ25619 is in a 4mm × 4mm QFN package for easy layout. The BQ25618 is in a 2.0mm × 2.4mm WCSP package for space limited design.

ELECTRONIC COMPONENTS
All In One Distributor

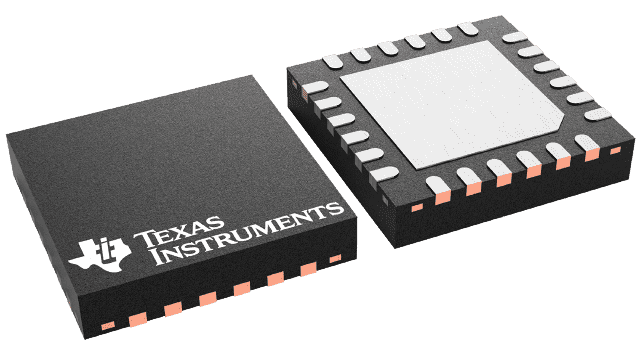

BQ25619
