ACTIVE
Cell chemistry |
Li-Ion/Li-Polymer |
Number of series cells |
1-2 Cells |
Communication interface |
I2C |
Battery capacity (min) (mAh) |
100 |
Battery capacity (max) (mAh) |
32000 |
Implementation |
Pack |
External capacity indication |
None |
Features |
Cell balancing, Impedance Track™ algorithm, Integrated Protector, SHA-1 Authentication |
Operating temperature range (°C) |
-40 to 85 |
Cell balancing |
External, Internal |
Rating |
Catalog |

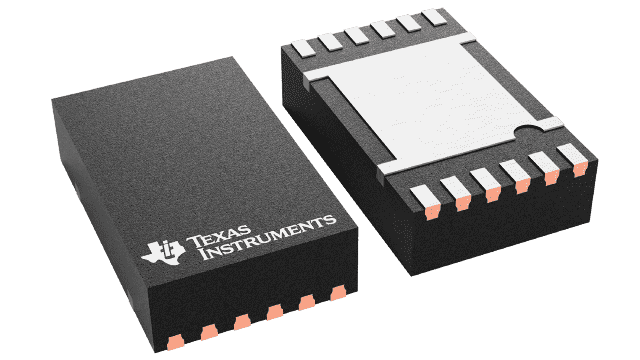

VSON (DRZ)-12-10 mm² 4 x 2.5
The Texas Instruments BQ28Z610-R1 device is a highly integrated, accurate, 1-series to 2-series cell gas gauge and protection solution, providing autonomous charger control and cell balancing.
The BQ28Z610-R1 device enables autonomous charge control through Master Mode I2C broadcasts of charging current and voltage information, eliminating software overhead that is typically incurred by the systems host controller.
The BQ28Z610-R1 device provides a fully integrated pack-based solution with a flash programmable custom reduced instruction-set CPU (RISC), safety protection, and authentication for 1- to 2-series cell Li-ion and Li-polymer battery packs.

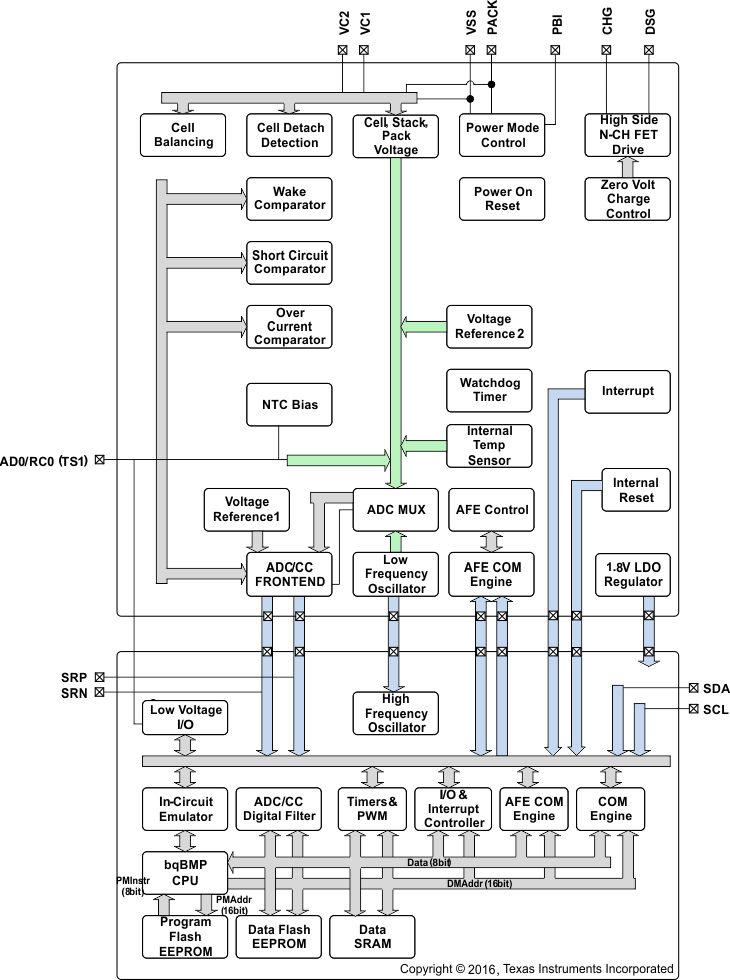

The BQ28Z610-R1 gas gauge communicates via an I2C compatible interface and combines an ultra-low-power, high-speed TI BQBMP processor, high-accuracy analog measurement capabilities, integrated flash memory, an array of peripheral and communication ports, an N-CH FET drive, and a SHA-1 Authentication transform responder into a complete, high-performance battery management solution.
