TCAN4420
  • TCAN4420
  • TCAN4420

TCAN4420

ACTIVE

CAN Transceiver With Polarity Control

Texas Instruments TCAN4420 Product Info

1 April 2026 1

Parameters

Protocols

CAN, CAN FD

Number of channels

1

Supply voltage (V)

4.5 to 5.5

Bus fault voltage (V)

-46 to 46

Signaling rate (max) (Mbps)

5

Rating

Catalog

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

  • Meets the Requirements of the ISO 11898-2 (2016) Physical Layer Standard
  • External Polarity Control Through SW (switch) Pin
    • Can be Used to Switch Polarity to Normal (Default) or Reverse Configuration of CAN Bus
  • Dual Power Supplies
    • 5-V VCC Pin for CAN Driver and Receiver
    • 2.8-V to 5-V VIO Pin for Powering RXD, TXD and SW pins
  • Wide Operating Ranges
    • ±46-V Bus Fault Protection
    • ±12-V Common Mode
    • –40°C to 125°C Ambient Temperature
  • Protection Feature
    • HBM ESD Protection up to ±12 kV
    • Under Voltage Protection on VCC and VIO Supplies
    • TXD Dominant Time Out (TXD DTO) – Supports Data Rates Down to 9.2 kbps
    • Thermal Shutdown Protection (TSD)
  • Optimized Behavior when Unpowered
    • Bus and Logic Terminals are High Impedance
      (No Load to Operating Bus or Application)
    • Power Up and Down Glitch Free Operation
  • Fast Loop Times: 150 ns
  • Meets the Requirements of the ISO 11898-2 (2016) Physical Layer Standard
  • External Polarity Control Through SW (switch) Pin
    • Can be Used to Switch Polarity to Normal (Default) or Reverse Configuration of CAN Bus
  • Dual Power Supplies
    • 5-V VCC Pin for CAN Driver and Receiver
    • 2.8-V to 5-V VIO Pin for Powering RXD, TXD and SW pins
  • Wide Operating Ranges
    • ±46-V Bus Fault Protection
    • ±12-V Common Mode
    • –40°C to 125°C Ambient Temperature
  • Protection Feature
    • HBM ESD Protection up to ±12 kV
    • Under Voltage Protection on VCC and VIO Supplies
    • TXD Dominant Time Out (TXD DTO) – Supports Data Rates Down to 9.2 kbps
    • Thermal Shutdown Protection (TSD)
  • Optimized Behavior when Unpowered
    • Bus and Logic Terminals are High Impedance
      (No Load to Operating Bus or Application)
    • Power Up and Down Glitch Free Operation
  • Fast Loop Times: 150 ns

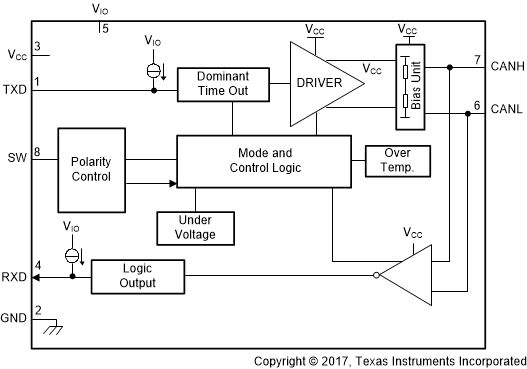

Description

The TCAN4420 is a high-speed Controller Area Network (CAN) transceiver that meets the specifications of the ISO 11898-2 (2016) physical layer standard requirements. The device also allows the CAN bus polarity to be controlled externally by a microcontroller through the SW pin. The TCAN4420 includes many protection features providing device and CAN network robustness. Support for 2.8 V to 5 V MCUs and I/Os is included through the VIO pin.

The TCAN4420 is a high-speed Controller Area Network (CAN) transceiver that meets the specifications of the ISO 11898-2 (2016) physical layer standard requirements. The device also allows the CAN bus polarity to be controlled externally by a microcontroller through the SW pin. The TCAN4420 includes many protection features providing device and CAN network robustness. Support for 2.8 V to 5 V MCUs and I/Os is included through the VIO pin.
