Texas Instruments TAS5722L Product Info

Parameters

Audio input type	Digital Input
Architecture	Class-D
Speaker channels (max)	Mono
Control interface	Software
Output power (W)	15
Power stage supply (max) (V)	16.5
Power stage supply (min) (V)	4.5
THD + N at 1 kHz (%)	0.04
Load (min) (Ω)	3.2
Analog supply voltage (min) (V)	4.5
Analog supply voltage (max) (V)	17
Rating	Catalog
Operating temperature range (°C)	-25 to 85

Package

VQFN (RSM)-32-16 mm² 4 x 4

Features

Mono Class-D Amplifier
- 15 W @ 0.02% THD Continuous into 4 Ω, 17 V
>90% Efficient Class-D Operation Eliminates Need for Heat Sinks
Audio performance(PVDD = 16.5 V, RSPK = 4Ω)
- Idle Channel Noise = 45 µVRMS (A-Wtd)
- THD+N = 0.04% (at 1 W, 1 kHz)
- SNR=106 dB A-Wtd (Ref.to THD+N = 1%)
I²S input : 32 kHz to 96 kHz
TDM Audio Input
- Up to 8 Channels (32-bit, 96 kHz)
I²C Control with 8 Selectable I²C Address
Power Supplies
- Power Amplifier: 4.5 V to 17 V
- Digital I/O: 1.8 V
Robustness features
- Clock Error Detector, DC Offset and Short-Circuit Protection
- Over Voltage, Under Voltage and Over Temperature Protection

Mono Class-D Amplifier
- 15 W @ 0.02% THD Continuous into 4 Ω, 17 V
>90% Efficient Class-D Operation Eliminates Need for Heat Sinks
Audio performance(PVDD = 16.5 V, RSPK = 4Ω)
- Idle Channel Noise = 45 µVRMS (A-Wtd)
- THD+N = 0.04% (at 1 W, 1 kHz)
- SNR=106 dB A-Wtd (Ref.to THD+N = 1%)
I²S input : 32 kHz to 96 kHz
TDM Audio Input
- Up to 8 Channels (32-bit, 96 kHz)
I²C Control with 8 Selectable I²C Address
Power Supplies
- Power Amplifier: 4.5 V to 17 V
- Digital I/O: 1.8 V
Robustness features
- Clock Error Detector, DC Offset and Short-Circuit Protection
- Over Voltage, Under Voltage and Over Temperature Protection

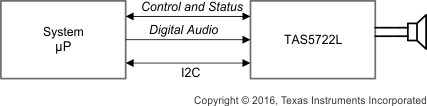

Description

The TAS5722L device is a high-efficiency mono Class-D audio power amplifier which includes integrated digital output clipper, several gain options, and a wide power supply operating range. It operates with a nominal supply voltage from 4.5 V to 17 VDC.

TAS5722L is optimized for high transient power capability to utilize the dynamic power headroom of small loudspeakers. It is capable of delivering more than 15 W of continuous power into a 4-Ω speaker.

The digital time division multiplexed (TDM) interface enables up to 8 devices to share the same bus.

The TAS5722L device is available in a 4 mm × 4 mm, 32-pin QFN package.

The TAS5722L device is a high-efficiency mono Class-D audio power amplifier which includes integrated digital output clipper, several gain options, and a wide power supply operating range. It operates with a nominal supply voltage from 4.5 V to 17 VDC.

TAS5722L is optimized for high transient power capability to utilize the dynamic power headroom of small loudspeakers. It is capable of delivering more than 15 W of continuous power into a 4-Ω speaker.

The digital time division multiplexed (TDM) interface enables up to 8 devices to share the same bus.

The TAS5722L device is available in a 4 mm × 4 mm, 32-pin QFN package.
