0
ACTIVE
Number of channels |
1 |
Vrwm (V) |
5.5 |
Bi-/uni-directional |
Uni-Directional |
Package name |
DFN1006 |
Peak pulse power (8/20 μs) (max) (W) |
30 |
IO capacitance (typ) (pF) |
0.4 |
IEC 61000-4-2 contact (±V) |
12000 |
IEC 61000-4-5 (A) |
2.5 |
Clamping voltage (V) |
10, 23 |
Dynamic resistance (typ) |
0.8 |
Interface type |
Ethernet, HDMI 2.0, LVDS, USB 3.0 |
Breakdown voltage (min) (V) |
6.5 |
IO leakage current (max) (nA) |
10 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |

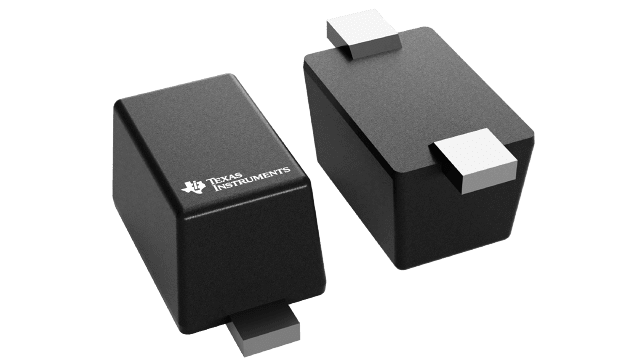

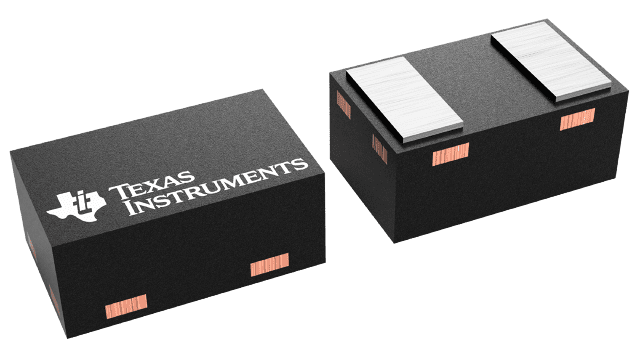

X1SON (DPY)-2-0.6 mm² 1 x 0.6
TPD1E05U06-Q1
TPD1E05U06-Q1:Automotive 0.4pF 5.5V, ±12-kV ESD protection diode in 0402 package with for USB 3.0.Package:X1SON (DPY)-2-0.6 mm² 1 x 0.6
