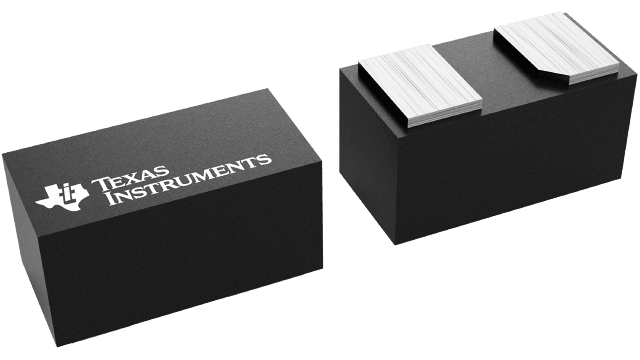

TPD1E0B04
  • TPD1E0B04
  • TPD1E0B04
  • TPD1E0B04

TPD1E0B04

ACTIVE

0.13-pF, ±3.6-V, ±8-kV ESD protection diode in 0402 & 0201 packages for USB-C & Antenna

Texas Instruments TPD1E0B04 Product Info

1 April 2026 4

Parameters

Number of channels

1

Vrwm (V)

3.6

Bi-/uni-directional

Bi-directional

Package name

DFN0603, DFN1006

Peak pulse power (8/20 μs) (max) (W)

15

IO capacitance (typ) (pF)

0.13

IEC 61000-4-2 contact (±V)

8000

IEC 61000-4-5 (A)

1.7

Clamping voltage (V)

7.2

Dynamic resistance (typ)

1

Interface type

DisplayPort, NFC / Antenna, USB Type-C

Breakdown voltage (min) (V)

6.7

IO leakage current (max) (nA)

10

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

X1SON (DPY)-2-0.6 mm² 1 x 0.6

Features

  • IEC 61000-4-2 Level 4 (contact) ESD protection
    • ±8kV contact discharge
    • ±9kV air gap discharge
  • IEC 61000-4-4 EFT protection
    • 80A (5/50ns)
  • IEC 61000-4-5 surge protection
    • 1.7A (8/20µs)
  • IO capacitance: 0.13 to 0.15pF (typical), 0.15 to 0.18pF (maximum)
  • DC breakdown voltage: 6.7V (typical)
  • Ultra low leakage current: 10nA (maximum)
  • Low ESD clamping voltage
  • Supports high speed interfaces up to 60Gbps
  • Low insertion loss: >30GHz (-3dB bandwidth)
  • Industrial temperature range: -40°C to +125°C
  • Ultra-small 0201 and 0402 footprints
  • IEC 61000-4-2 Level 4 (contact) ESD protection
    • ±8kV contact discharge
    • ±9kV air gap discharge
  • IEC 61000-4-4 EFT protection
    • 80A (5/50ns)
  • IEC 61000-4-5 surge protection
    • 1.7A (8/20µs)
  • IO capacitance: 0.13 to 0.15pF (typical), 0.15 to 0.18pF (maximum)
  • DC breakdown voltage: 6.7V (typical)
  • Ultra low leakage current: 10nA (maximum)
  • Low ESD clamping voltage
  • Supports high speed interfaces up to 60Gbps
  • Low insertion loss: >30GHz (-3dB bandwidth)
  • Industrial temperature range: -40°C to +125°C
  • Ultra-small 0201 and 0402 footprints

Description

The TPD1E0B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 4 circuit protection. The TPD1E0B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).

This device features a 0.13pF IO capacitance per channel (DPL package) making it ideal for protecting high-speed interfaces up to 60Gbps such as USB 4.0 and below, Thunderbolt 4, and Antenna. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.

The TPD1E0B04 is offered in the industry standard 0201 (DPL) and 0402 (DPY) packages.
