ACTIVE
Number of receivers |
0 |
Number of transmitters |
2 |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
10 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-10 to 15 |
Common-mode range (V) |
-7 to 7 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
50000 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

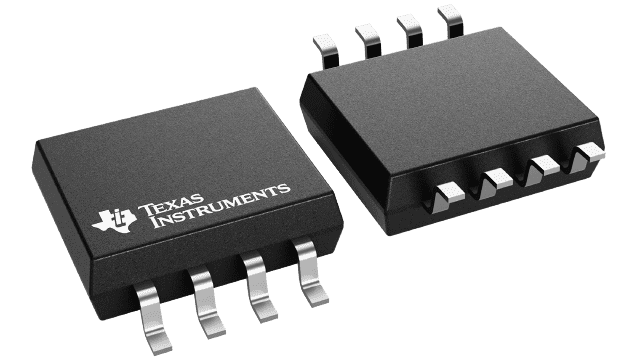

The SN75158 is a dual differential line driver designed to satisfy the requirements set by the ANSI EIA/TIA-422-B and ITU V.11 interface specifications. The outputs provide signals with high-current capability for driving balanced lines, such as twisted pair, at normal line impedance without high power dissipation. The output stages are TTL totem-pole outputs, providing a high-impedance state in the power-off condition.
The SN75158 is characterized for operation from 0°C to 70°C.
