0
ACTIVE
Common-mode voltage (max) (V) |
36 |
Common-mode voltage (min) (V) |
0 |
Digital interface |
I2C, SMBus |
Resolution (Bits) |
16 |
Input offset (±) (max) (µV) |
10 |
Input offset drift (±) (max) (µV/°C) |
0.1 |
Input offset drift (±) (typ) (µV/°C) |
0.02 |
Voltage gain (V/V) |
1 |
CMRR (min) (dB) |
126 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
2.7 |
Iq (max) (mA) |
0.42 |
Gain error (%) |
0.1 |
Gain error drift (±) (max) (ppm/°C) |
50 |
Features |
Alert Function, Bidirectional, Intergrated Power Monitor, Low-side Capable, Ultra precise |
Number of channels |
1 |
Power measurement accuracy (%) |
0.2 |
TI functional safety category |
Functional Safety-Capable |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
VSSOP (DGS)-10-14.7 mm² 3 x 4.9

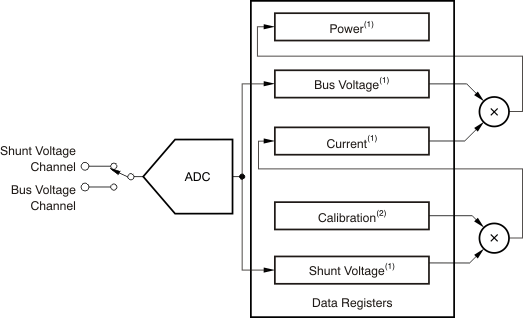

The INA226-Q1 is a current shunt and power monitor with an I2C™- or SMBUS-compatible interface. The device monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts.
The INA226-Q1 senses current on common-mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. The device operates from a single 2.7V to 5.5V supply, drawing a typical of 330µA of supply current. The device is specified over the operating temperature range between –40°C and 125°C and features up to 16 programmable addresses on the I2C-compatible interface.
