ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
22 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.5 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
21 |
Slew rate (typ) (V/µs) |
12 |
Vos (offset voltage at 25°C) (max) (mV) |
7 |
Iq per channel (typ) (mA) |
1.05 |
Vn at 1 kHz (typ) (nV√Hz) |
15 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
2 |
Features |
High Cload Drive |
Input bias current (max) (pA) |
2000000 |
CMRR (typ) (dB) |
110 |
Iout (typ) (A) |
0.06 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
-0.3 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.02 |
Output swing headroom (to positive supply) (typ) (V) |
-0.23 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9
(VS = 5V, TA = 25°C, Typical Values
Unless Specified).

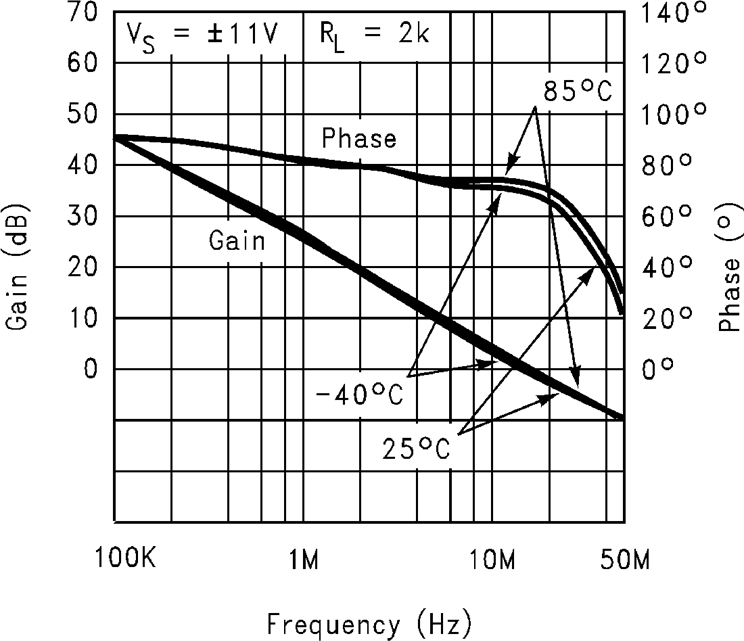

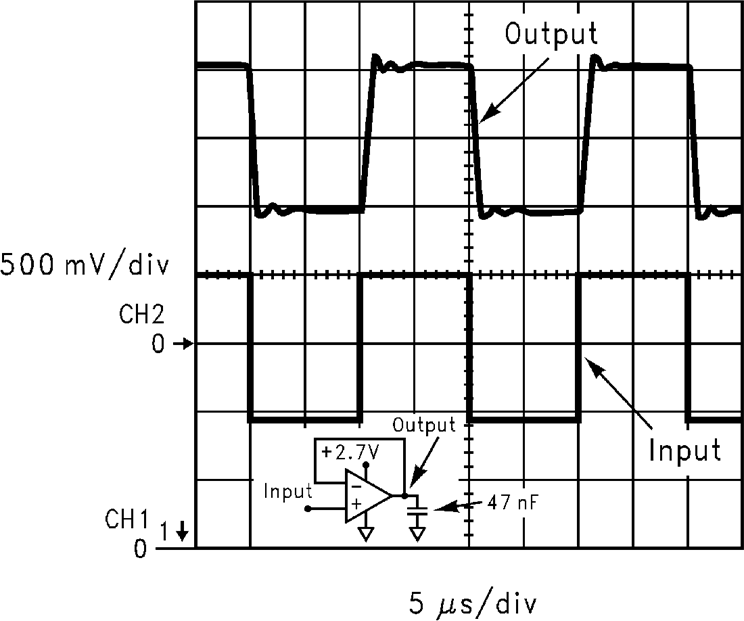

The LM8262 is a Rail-to-Rail input and output Op Amp which can operate with a wide supply voltage range. This device has high output current drive, greater than Rail-to-Rail input common mode voltage range, unlimited capacitive load drive capability, and provides tested and ensured high speed and slew rate. It is specifically designed to handle the requirements of flat panel TFT panel VCOM driver applications as well as being suitable for other low power and medium speed applications which require ease of use and enhanced performance over existing devices.
Greater than Rail-to-Rail input common mode voltage range with 50 dB of Common Mode Rejection allows high side and low side sensing for many applications without concern for exceeding the range and with no compromise in accuracy. In addition, most device parameters are insensitive to power supply variations. This design enhancement is yet another step in simplifying its usage. The output stage has low distortion (0.05% THD+N) and can supply a respectable amount of current (15 mA) with minimal headroom from either rail (300 mV).
The LM8262 is offered in the space saving VSSOP package.
