PGA/VGA |
PGA |
Number of channels |
1 |
Vs (min) (V) |
4.75 |
Vs (max) (V) |
5.25 |
Input type |
Single-ended |
Output type |
Differential |
Interface type |
Digital Gain Set |
BW at Acl (MHz) |
900 |
Acl, min spec gain (V/V) |
0.875 |
Voltage gain (min) (V/V) |
0.875 |
Voltage gain (max) (V/V) |
87 |
Gain (max) (dB) |
38.8 |
Architecture |
Fully Differential ADC Driver |
Features |
Integrated Clamps, Single-ended to Differential conversion |
Input voltage noise (typ) (µV√Hz) |
0.000098 |
Slew rate (typ) (V/µs) |
760 |
Iq per channel (typ) (mA) |
210 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

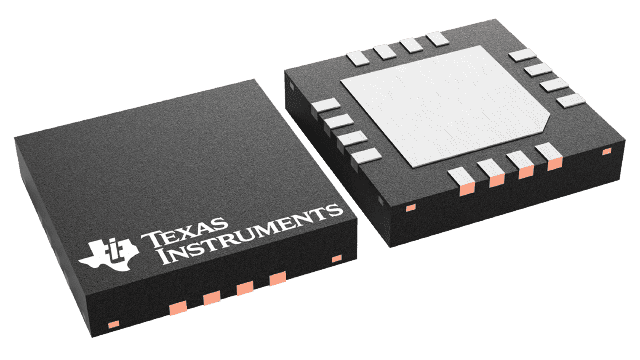

WQFN (RGH)-16-16 mm² 4 x 4
The LMH6518 is a digitally controlled variable gain amplifier with a total gain that varies from –1.16dB to 38.8dB for a 40dB range in 2dB steps. The −3dB bandwidth is 900MHz at all gains. Gain accuracy at each setting is typically 0.1dB. When used in conjunction with TIs gigasamples per second (GSPS) ADC with adjustable full-scale range, the LMH6518 gain adjustment accommodates full scale input signals from 6.8mVPP to 920mVPP to get 700mVPP nominal at the ADC input. The auxiliary output (+OUT AUX and −OUT AUX) follows the main output and is intended for use in oscilloscope trigger function circuitry, but can have other uses in other applications.

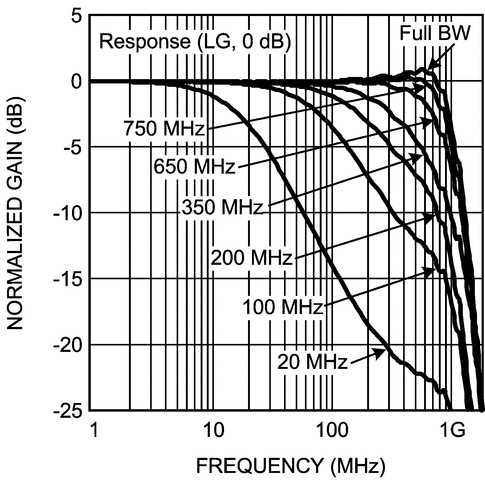

The LMH6518 gain is programmed through a SPI-compatible serial bus. A signal path combined gain resolution of 8.5mdB is achieved when the device gain and the GSPS ADC FS input are both manipulated. Inputs and outputs are dc-coupled. The outputs are differential with individual common-mode voltage control (for main and auxiliary outputs), and have selectable bandwidth limiting circuitry (common to both main and auxiliary) of 20MHz, 100MHz, 200MHz, 350MHz, 650MHz, 750MHz, or full BW.
