ACTIVE
Rating |
Catalog |
Vin (max) (V) |
30 |
Vin (min) (V) |
5.3 |
Iout (max) (A) |
0.5 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
12 |
Vout (min) (V) |
3.3 |
Fixed output options (V) |
3.3, 5, 6, 8, 9, 10, 12 |
Noise (µVrms) |
40 |
PSRR at 100 KHz (dB) |
40 |
Iq (typ) (mA) |
4.5 |
Thermal resistance θJA (°C/W) |
23 |
Load capacitance (min) (µF) |
0.1 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
2000 |
Operating temperature range (°C) |
-40 to 125 |

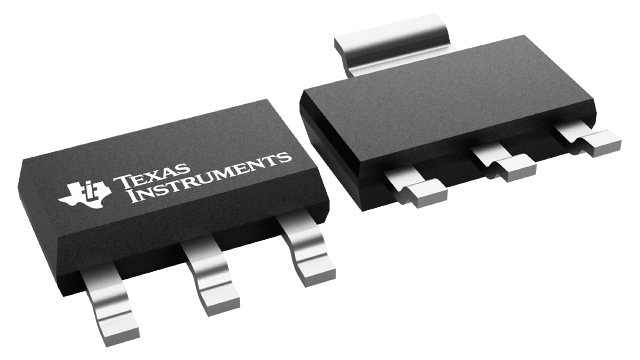

SOT-223 (DCY)-4-45.5 mm² 6.5 x 7

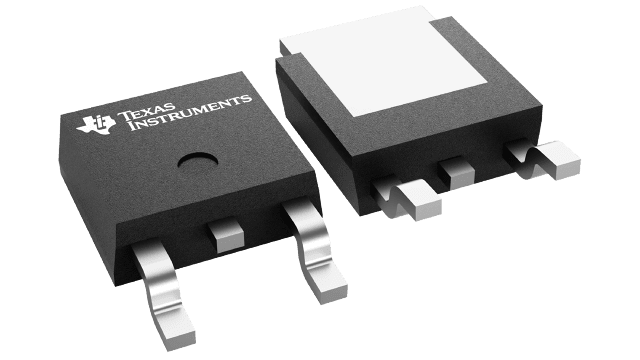

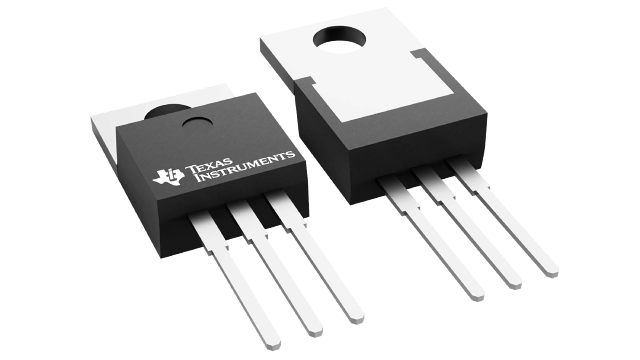

The UA78M fixed-voltage integrated-circuit voltage regulator is designed for a wide range of applications. Use the UA78M for on-card regulation to attenuate post regulation noise and distribution problems associated with single-point regulation. The UA78M delivers up to 500mA of output current. Additionally, the UA78M does not need external components for stable operation across the load current range. The internal current-limiting and thermal-shutdown features of this regulator help protect the device from overload.
The UA78M is characterized for the junction temperature range of –40°C to +125°C. Device performance for new and legacy chips is denoted throughout the document. See the Device Nomenclature table for more details.
