Texas Instruments TMS320F28066-Q1 Product Info

Parameters

CPU	1 C28
Frequency (MHz)	90
Flash memory (kByte)	256
RAM (kByte)	68
ADC type	1 12-bit SAR
Total processing (MIPS)	90
Features	FPU32
UART	2
CAN (#)	1
Sigma-delta filter	0
PWM (Ch)	14, 16
TI functional safety category	Functional Safety Quality-Managed
Number of ADC channels	12, 16
Direct memory access (Ch)	6
SPI	2
QEP	1, 2
USB	Yes
Operating temperature range (°C)	-40 to 125
Rating	Automotive
Communication interface	CAN, I2C, SPI, UART
Operating system	FreeRTOS
Hardware accelerators	Floating point unit
Nonvolatile memory (kByte)	256
Number of GPIOs	54
Number of I2Cs	1
Security	Secure storage
Edge AI enabled	No

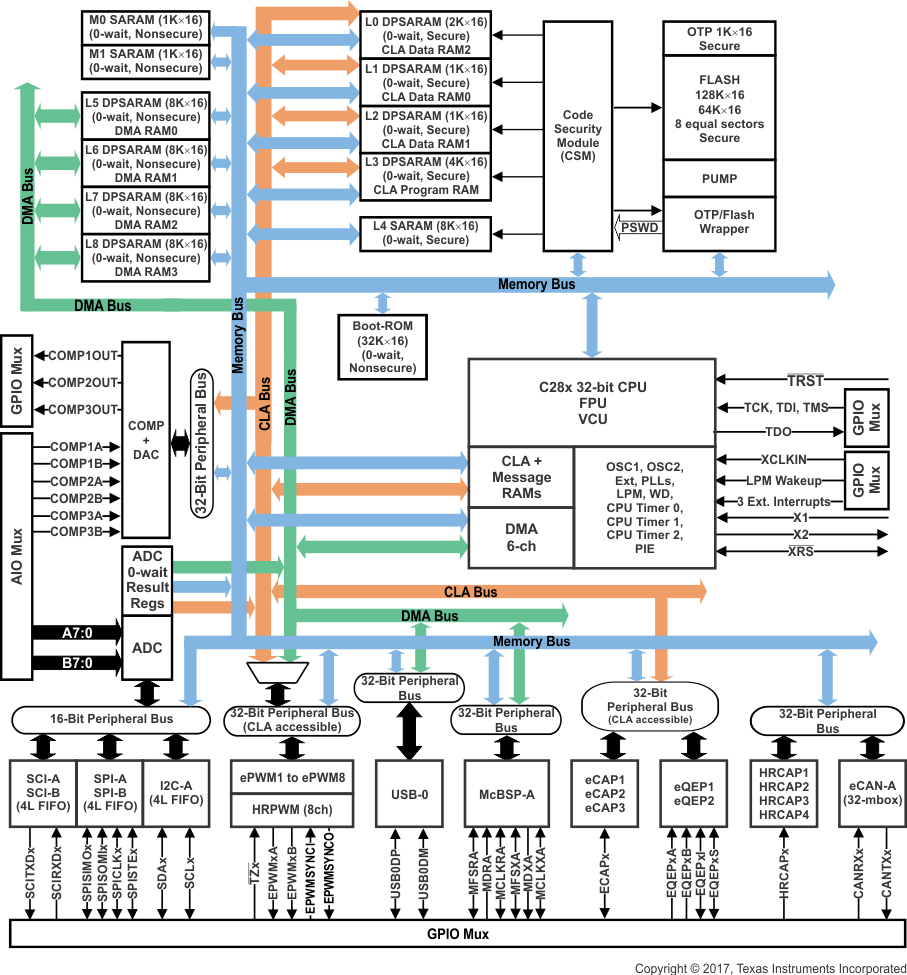

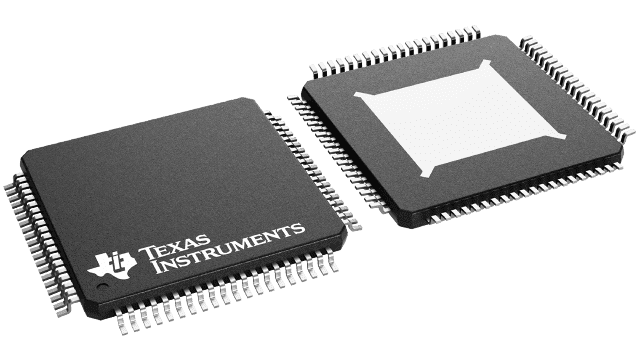

Package

HTQFP (PFP)-80-196 mm² 14 x 14

Features

High-efficiency 32-bit CPU (TMS320C28x)
- 90 MHz (11.11-ns cycle time)
- 16 × 16 and 32 × 32 Multiply and Accumulate (MAC) operations
- 16 × 16 dual MAC
- Harvard bus architecture
- Atomic operations
- Fast interrupt response and processing
- Unified memory programming model
- Code-efficient (in C/C++ and Assembly)
Floating-Point Unit (FPU)
- Native single-precision floating-point operations
Programmable Control Law Accelerator (CLA)
- 32-bit floating-point math accelerator
- Executes code independently of the main CPU
Viterbi, Complex Math, CRC Unit (VCU)
- Extends C28x instruction set to support complex multiply, Viterbi operations, and Cyclic Redundency Check (CRC)
Embedded memory
- Up to 256KB of flash
- Up to 100KB of RAM
- 2KB of One-Time Programmable (OTP) ROM
6-channel Direct Memory Access (DMA)
Low device and system cost
- Single 3.3-V supply
- No power sequencing requirement
- Integrated power-on reset and brownout reset
- Low-power operating modes
- No analog support pin
Endianness: Little endian
JTAG boundary scan support
- IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
Clocking
- Two internal zero-pin oscillators
- On-chip crystal oscillator/external clock input
- Watchdog timer module
- Missing clock detection circuitry
Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
Three 32-bit CPU timers
Advanced control peripherals
Up to 8 Enhanced Pulse-Width Modulator (ePWM) modules
- 16 PWM channels total (8 HRPWM-capable)
- Independent 16-bit timer in each module
Three input Enhanced Capture (eCAP) modules
Up to 4 High-Resolution Capture (HRCAP) modules
Up to 2 Enhanced Quadrature Encoder Pulse (eQEP) modules
12-bit Analog-to-Digital Converter (ADC), dual Sample-and-Hold (S/H)
- Up to 3.46 MSPS
- Up to 16 channels
On-chip temperature sensor
128-bit security key and lock
- Protects secure memory blocks
- Prevents reverse-engineering of firmware
Serial port peripherals
- Two Serial Communications Interface (SCI) [UART] modules
- Two Serial Peripheral Interface (SPI) modules
- One Inter-Integrated-Circuit (I2C) bus
- One Multichannel Buffered Serial Port (McBSP) bus
- One Enhanced Controller Area Network (eCAN)
- Universal Serial Bus (USB) 2.0 (see Device Comparison for availability)
  - Full-speed device mode
  - Full-speed or low-speed host mode
Up to 54 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins with input filtering
Advanced debug features
- Analysis and breakpoint functions
- Real-time debug through hardware
Package options
- 80-pin PFP and 100-pin PZP PowerPAD™ Thermally Enhanced Thin Quad Flatpacks (HTQFPs)
- 80-pin PN and 100-pin PZ Low-Profile Quad Flatpacks (LQFPs)
Temperature options
- T: –40°C to 105°C
- S: –40°C to 125°C
- Q: –40°C to 125°C (AEC Q100 qualification for automotive applications)

High-efficiency 32-bit CPU (TMS320C28x)
- 90 MHz (11.11-ns cycle time)
- 16 × 16 and 32 × 32 Multiply and Accumulate (MAC) operations
- 16 × 16 dual MAC
- Harvard bus architecture
- Atomic operations
- Fast interrupt response and processing
- Unified memory programming model
- Code-efficient (in C/C++ and Assembly)
Floating-Point Unit (FPU)
- Native single-precision floating-point operations
Programmable Control Law Accelerator (CLA)
- 32-bit floating-point math accelerator
- Executes code independently of the main CPU
Viterbi, Complex Math, CRC Unit (VCU)
- Extends C28x instruction set to support complex multiply, Viterbi operations, and Cyclic Redundency Check (CRC)
Embedded memory
- Up to 256KB of flash
- Up to 100KB of RAM
- 2KB of One-Time Programmable (OTP) ROM
6-channel Direct Memory Access (DMA)
Low device and system cost
- Single 3.3-V supply
- No power sequencing requirement
- Integrated power-on reset and brownout reset
- Low-power operating modes
- No analog support pin
Endianness: Little endian
JTAG boundary scan support
- IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
Clocking
- Two internal zero-pin oscillators
- On-chip crystal oscillator/external clock input
- Watchdog timer module
- Missing clock detection circuitry
Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts
Three 32-bit CPU timers
Advanced control peripherals
Up to 8 Enhanced Pulse-Width Modulator (ePWM) modules
- 16 PWM channels total (8 HRPWM-capable)
- Independent 16-bit timer in each module
Three input Enhanced Capture (eCAP) modules
Up to 4 High-Resolution Capture (HRCAP) modules
Up to 2 Enhanced Quadrature Encoder Pulse (eQEP) modules
12-bit Analog-to-Digital Converter (ADC), dual Sample-and-Hold (S/H)
- Up to 3.46 MSPS
- Up to 16 channels
On-chip temperature sensor
128-bit security key and lock
- Protects secure memory blocks
- Prevents reverse-engineering of firmware
Serial port peripherals
- Two Serial Communications Interface (SCI) [UART] modules
- Two Serial Peripheral Interface (SPI) modules
- One Inter-Integrated-Circuit (I2C) bus
- One Multichannel Buffered Serial Port (McBSP) bus
- One Enhanced Controller Area Network (eCAN)
- Universal Serial Bus (USB) 2.0 (see Device Comparison for availability)
  - Full-speed device mode
  - Full-speed or low-speed host mode
Up to 54 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins with input filtering
Advanced debug features
- Analysis and breakpoint functions
- Real-time debug through hardware
Package options
- 80-pin PFP and 100-pin PZP PowerPAD™ Thermally Enhanced Thin Quad Flatpacks (HTQFPs)
- 80-pin PN and 100-pin PZ Low-Profile Quad Flatpacks (LQFPs)
Temperature options
- T: –40°C to 105°C
- S: –40°C to 125°C
- Q: –40°C to 125°C (AEC Q100 qualification for automotive applications)

Description

C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.

The F2806x family of microcontrollers (MCUs) provides the power of the C28x core and CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration.

An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the ePWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric V_REFHI/V_REFLO references. The ADC interface has been optimized for low overhead and latency.

To learn more about the C2000 MCUs, visit the C2000 Overview at www.ti.com/c2000.
