- Up to 2× Dual-core Arm Cortex-R5F MCU subsystems operating at up to 800MHz, highly-integrated for real-time processing
- Dual-core Arm Cortex-R5F clusters support dual-core and single-core operation
- 32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories
- Single-core: 128KB TCM per cluster (128KB TCM per R5F core)
- Dual-core: 128KB TCM per cluster (64KB TCM per R5F core)
- 1× Single-core Arm Cortex-M4F MCU at up to 400MHz
- 256KB SRAM with SECDED ECC
- Up to 2MB of On-chip RAM (OCSRAM) with SECDED ECC:
- Can be divided into smaller banks in increments of 256KB for as many as 8 separate memory banks
- Each memory bank can be allocated to a single core to facilitate software task partitioning
- DDR Subsystem (DDRSS)
- Supports LPDDR4, DDR4 memory types
- 16-bit data bus with inline ECC
- Supports speeds up to 1600 MT/s
- Device Management Security Controller (DMSC-L)
- Centralized SoC system controller
- Manages system services including initial boot, security, and clock/reset/power management
- Communication with various processing units over message manager
- Simplified interface for optimizing unused peripherals
- On-Chip Debug functionality through JTAG and Trace interfaces)
- Data Movement Subsystem (DMSS)
- Block Copy DMA (BCDMA)
- Packet DMA (PKTDMA)
- Secure Proxy (SEC_PROXY)
- Ring Accelerator (RINGACC)
- Time Sync Subsystem
- Central Platform Time Sync (CPTS) module
- Timer Manager (TIMERMANAGER) with 1024 timers
- Time Sync and Compare event interrupt routers
- 2× Gigabit Industrial Communication Subsystems (PRU_ICSSG)
- Optional support for Profinet IRT, Profinet RT, EtherNet/IP, EtherCAT, Time-Sensitive Networking (TSN), and other Networking Protocols
- Backwards compatibility with 10/100Mb PRU-ICSS
- Each PRU_ICSSG contains:
- 3× PRU RISC Cores per Slice (2× Slice per PRU_ICSSG)
- PRU General Use core (PRU)
- PRU Real-Time Unit core (PRU-RTU)
- PRU Transmit core (PRU-TX)
- Each PRU core supports the following features:
- Instruction RAM with ECC
- Broadside RAM
- Multiplier with optional accumulator (MAC)
- CRC16/32 hardware accelerator
- Byte swap for Big/Little Endian conversion
- SUM32 hardware accelerator for UDP checksum
- Task Manager for preemption support
- Up to 2× Ethernet ports
- RGMII (10/100/1000)
- MII (10/100)
- Three Data RAMs with ECC
- 8 banks of 30 × 32-bit register scratchpad memory
- Interrupt controller and task manager
- 2× 64-bit Industrial Ethernet Peripherals (IEPs) for time stamping and other time synchronization functions
- 18× Sigma-Delta Filter Module (SDFM) interfaces
- Short circuit logic
- Over-current logic
- 6× Multi-protocol position encoder interfaces
- 1× Enhanced Capture Module (ECAP)
- 16550-compatible UART
- Dedicated 192MHz clock to support 12Mbps PROFIBUS
- Secure boot supported
- Hardware-enforced Root-of-Trust (RoT)
- Support to switch RoT via backup key
- Support for takeover protection, IP protection, and anti-roll back protection
- Security co-processor (DMSC-L) for key and security management, with dedicated device level interconnect for security
- Secure watchdog/timer/IPC
- Extensive firewall support for isolation
- Cryptographic acceleration supported
- Session-aware cryptographic engine with ability to auto-switch key-material based on incoming data stream
- Supports cryptographic cores
- AES – 128-/192-/256-Bit key sizes
- SHA2 – 224-/256-/384-/512-Bit key sizes
- DRBG with true random number generator
- PKA (Public Key Accelerator) to Assist in RSA/ECC processing for secure boot
- Debugging security
- Secure software controlled debug access
- Security aware debugging
- 6× Inter-Integrated Circuit (I2C) ports
- 9× Universal Asynchronous Receive/Transmit (UART) modules
- 1× 12-bit Analog-to-Digital Converters (ADC)
- Configurable sample rate up to 4MSPS
- 8× multiplexed analog inputs
- 7× Multichannel Serial Peripheral Interfaces (SPI) controllers
- 3× General-Purpose I/O (GPIO) modules
- 9× Enhanced Pulse-Width Modulator (EPWM) modules
- 3× Enhanced Capture (ECAP) modules
- 3× Enhanced Quadrature Encoder Pulse (EQEP) modules
- 2× Modular Controller Area Network (MCAN) modules with full CAN-FD support
- 2× Fast Serial Interface Transmitter (FSITX) cores
- 6× Fast Serial Interface Receiver (FSIRX) cores
High-speed interfaces:
- 1× Integrated Ethernet switch supporting: (CPSW)
- Up to 2 external Ethernet ports
- RGMII (10/100/1000)
- RMII (10/100)
- IEEE 1588 (2008 Annex D, Annex E, Annex F) with 802.1AS PTP
- Clause 45 MDIO PHY management
- Energy efficient Ethernet (802.3az)
- 1× PCI-Express Gen2 controller (PCIE)
- Supports Gen2 Single Lane operation
- 1× USB 3.1 Dual-Role Device (DRD) Subsystem (USBSS)
- Port configurable as USB Host, USB Device, or USB Dual-Role device
- USB Device: High-speed (480Mbps) and Full-speed (12Mbps)
- USB Host: SuperSpeed Gen1 (5Gbps), High-speed (480Mbps), Full-speed (12Mbps), and Low-speed (1.5Mbps)
- Integrated USB VBUS detection
- 1× Serializer/Deserializer (SERDES)
- One SERDES PHY lane to support eitherPCI-Express Gen2 or USB SuperSpeed Gen1
- 2× Multimedia Card/Secure Digital (MMCSD) interfaces
- One 8-bit for eMMC (MMCSD0)
- One 4-bit for MMCSD/SDIO (MMCSD1)
- Integrated analog switch for voltage switching from 3.3V to 1.8V for high-speed cards
- 1× General-Purpose Memory Controller (GPMC)
- 16-bit parallel bus with 133MHz clock or
- 32-bit parallel bus with 100MHz clock
- Error Location Module (ELM) support
- 1× Flash Subsystem (FSS) for external memory configurable as either:
- 1× Octal SPI (OSPI) flash interface
- or 1× Quad SPI (QSPI) flash interface
- Simplified power sequencing requirements
- Dual-voltage I/O Support (3.3V / 1.8V)
- Integrated SDIO LDO for handling automatic voltage transition for SD interface
- Integrated voltage supervisor for monitoring over-voltage and under-voltage conditions
- Integrated power supply glitch detector for detecting fast supply transients
Functional safety:
- Functional Safety-Compliant
- Developed for functional safety applications
- Documentation available to aid IEC 61508 functional safety system design
- Systematic capability up to SIL 3
- Hardware integrity up to SIL 2
- Safety-related certification
- ECC or parity on calculation-critical memories
- Built-In Self-Test (BIST) for CPU and on-chip RAM
- Error Signaling Module (ESM) with dedicated error pin
- ECC and parity on select internal bus interconnects
- Run-time safety diagnostics, including:
- Voltage, Temperature, and Clock Monitoring
- Windowed Watchdog Timers
- CRC Engine for memory integrity checks
- MCU domain with dedicated memory, interfaces, and M4FSS capable of isolation from the larger SoC with Freedom From Interference (FFI) features:
- Separate interconnect
- Firewalls and timeout gaskets
- Controlled reset isolation
- Dedicated MCU PLL and MMR control
- Separate I/O voltage supply rail
- Supports boot from OSPI/QSPI Flash, SPI Flash, parallel NOR Flash, parallel NAND Flash, UART, I2C, MMCSD, eMMC, USB, PCIe, and Ethernet interfaces.
- 16-nm FinFET technology
- ALV: 17.2mm × 17.2mm, 0.8mm pitch(441-pin) [Lidded] Flip-Chip Ball Grid Array(FCBGA)
- ALX: 11.0mm × 11.0mm, 0.5mm pitch(293-pin) [Overmolded] Flip-Chip Chip Scale Package(FCCSP)

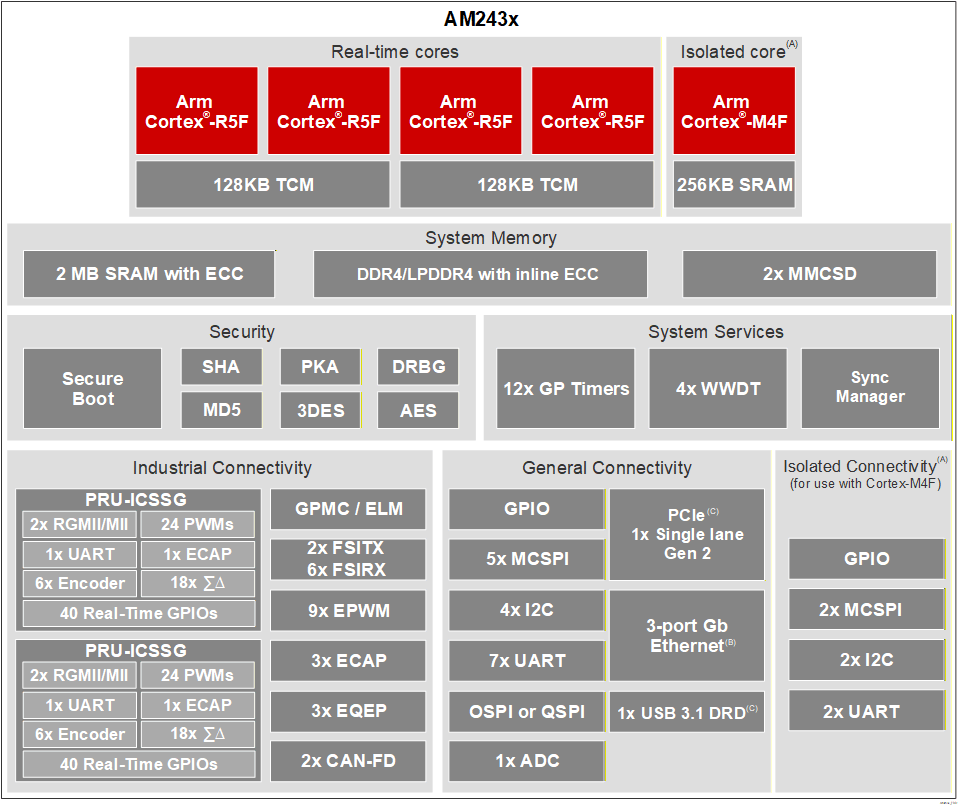

- Up to 2× Dual-core Arm Cortex-R5F MCU subsystems operating at up to 800MHz, highly-integrated for real-time processing
- Dual-core Arm Cortex-R5F clusters support dual-core and single-core operation
- 32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories
- Single-core: 128KB TCM per cluster (128KB TCM per R5F core)
- Dual-core: 128KB TCM per cluster (64KB TCM per R5F core)
- 1× Single-core Arm Cortex-M4F MCU at up to 400MHz
- 256KB SRAM with SECDED ECC
- Up to 2MB of On-chip RAM (OCSRAM) with SECDED ECC:
- Can be divided into smaller banks in increments of 256KB for as many as 8 separate memory banks
- Each memory bank can be allocated to a single core to facilitate software task partitioning
- DDR Subsystem (DDRSS)
- Supports LPDDR4, DDR4 memory types
- 16-bit data bus with inline ECC
- Supports speeds up to 1600 MT/s
- Device Management Security Controller (DMSC-L)
- Centralized SoC system controller
- Manages system services including initial boot, security, and clock/reset/power management
- Communication with various processing units over message manager
- Simplified interface for optimizing unused peripherals
- On-Chip Debug functionality through JTAG and Trace interfaces)
- Data Movement Subsystem (DMSS)
- Block Copy DMA (BCDMA)
- Packet DMA (PKTDMA)
- Secure Proxy (SEC_PROXY)
- Ring Accelerator (RINGACC)
- Time Sync Subsystem
- Central Platform Time Sync (CPTS) module
- Timer Manager (TIMERMANAGER) with 1024 timers
- Time Sync and Compare event interrupt routers
- 2× Gigabit Industrial Communication Subsystems (PRU_ICSSG)
- Optional support for Profinet IRT, Profinet RT, EtherNet/IP, EtherCAT, Time-Sensitive Networking (TSN), and other Networking Protocols
- Backwards compatibility with 10/100Mb PRU-ICSS
- Each PRU_ICSSG contains:
- 3× PRU RISC Cores per Slice (2× Slice per PRU_ICSSG)
- PRU General Use core (PRU)
- PRU Real-Time Unit core (PRU-RTU)
- PRU Transmit core (PRU-TX)
- Each PRU core supports the following features:
- Instruction RAM with ECC
- Broadside RAM
- Multiplier with optional accumulator (MAC)
- CRC16/32 hardware accelerator
- Byte swap for Big/Little Endian conversion
- SUM32 hardware accelerator for UDP checksum
- Task Manager for preemption support
- Up to 2× Ethernet ports
- RGMII (10/100/1000)
- MII (10/100)
- Three Data RAMs with ECC
- 8 banks of 30 × 32-bit register scratchpad memory
- Interrupt controller and task manager
- 2× 64-bit Industrial Ethernet Peripherals (IEPs) for time stamping and other time synchronization functions
- 18× Sigma-Delta Filter Module (SDFM) interfaces
- Short circuit logic
- Over-current logic
- 6× Multi-protocol position encoder interfaces
- 1× Enhanced Capture Module (ECAP)
- 16550-compatible UART
- Dedicated 192MHz clock to support 12Mbps PROFIBUS
- Secure boot supported
- Hardware-enforced Root-of-Trust (RoT)
- Support to switch RoT via backup key
- Support for takeover protection, IP protection, and anti-roll back protection
- Security co-processor (DMSC-L) for key and security management, with dedicated device level interconnect for security
- Secure watchdog/timer/IPC
- Extensive firewall support for isolation
- Cryptographic acceleration supported
- Session-aware cryptographic engine with ability to auto-switch key-material based on incoming data stream
- Supports cryptographic cores
- AES – 128-/192-/256-Bit key sizes
- SHA2 – 224-/256-/384-/512-Bit key sizes
- DRBG with true random number generator
- PKA (Public Key Accelerator) to Assist in RSA/ECC processing for secure boot
- Debugging security
- Secure software controlled debug access
- Security aware debugging
- 6× Inter-Integrated Circuit (I2C) ports
- 9× Universal Asynchronous Receive/Transmit (UART) modules
- 1× 12-bit Analog-to-Digital Converters (ADC)
- Configurable sample rate up to 4MSPS
- 8× multiplexed analog inputs
- 7× Multichannel Serial Peripheral Interfaces (SPI) controllers
- 3× General-Purpose I/O (GPIO) modules
- 9× Enhanced Pulse-Width Modulator (EPWM) modules
- 3× Enhanced Capture (ECAP) modules
- 3× Enhanced Quadrature Encoder Pulse (EQEP) modules
- 2× Modular Controller Area Network (MCAN) modules with full CAN-FD support
- 2× Fast Serial Interface Transmitter (FSITX) cores
- 6× Fast Serial Interface Receiver (FSIRX) cores
High-speed interfaces:
- 1× Integrated Ethernet switch supporting: (CPSW)
- Up to 2 external Ethernet ports
- RGMII (10/100/1000)
- RMII (10/100)
- IEEE 1588 (2008 Annex D, Annex E, Annex F) with 802.1AS PTP
- Clause 45 MDIO PHY management
- Energy efficient Ethernet (802.3az)
- 1× PCI-Express Gen2 controller (PCIE)
- Supports Gen2 Single Lane operation
- 1× USB 3.1 Dual-Role Device (DRD) Subsystem (USBSS)
- Port configurable as USB Host, USB Device, or USB Dual-Role device
- USB Device: High-speed (480Mbps) and Full-speed (12Mbps)
- USB Host: SuperSpeed Gen1 (5Gbps), High-speed (480Mbps), Full-speed (12Mbps), and Low-speed (1.5Mbps)
- Integrated USB VBUS detection
- 1× Serializer/Deserializer (SERDES)
- One SERDES PHY lane to support eitherPCI-Express Gen2 or USB SuperSpeed Gen1
- 2× Multimedia Card/Secure Digital (MMCSD) interfaces
- One 8-bit for eMMC (MMCSD0)
- One 4-bit for MMCSD/SDIO (MMCSD1)
- Integrated analog switch for voltage switching from 3.3V to 1.8V for high-speed cards
- 1× General-Purpose Memory Controller (GPMC)
- 16-bit parallel bus with 133MHz clock or
- 32-bit parallel bus with 100MHz clock
- Error Location Module (ELM) support
- 1× Flash Subsystem (FSS) for external memory configurable as either:
- 1× Octal SPI (OSPI) flash interface
- or 1× Quad SPI (QSPI) flash interface
- Simplified power sequencing requirements
- Dual-voltage I/O Support (3.3V / 1.8V)
- Integrated SDIO LDO for handling automatic voltage transition for SD interface
- Integrated voltage supervisor for monitoring over-voltage and under-voltage conditions
- Integrated power supply glitch detector for detecting fast supply transients
Functional safety:
- Functional Safety-Compliant
- Developed for functional safety applications
- Documentation available to aid IEC 61508 functional safety system design
- Systematic capability up to SIL 3
- Hardware integrity up to SIL 2
- Safety-related certification
- ECC or parity on calculation-critical memories
- Built-In Self-Test (BIST) for CPU and on-chip RAM
- Error Signaling Module (ESM) with dedicated error pin
- ECC and parity on select internal bus interconnects
- Run-time safety diagnostics, including:
- Voltage, Temperature, and Clock Monitoring
- Windowed Watchdog Timers
- CRC Engine for memory integrity checks
- MCU domain with dedicated memory, interfaces, and M4FSS capable of isolation from the larger SoC with Freedom From Interference (FFI) features:
- Separate interconnect
- Firewalls and timeout gaskets
- Controlled reset isolation
- Dedicated MCU PLL and MMR control
- Separate I/O voltage supply rail
- Supports boot from OSPI/QSPI Flash, SPI Flash, parallel NOR Flash, parallel NAND Flash, UART, I2C, MMCSD, eMMC, USB, PCIe, and Ethernet interfaces.
- 16-nm FinFET technology

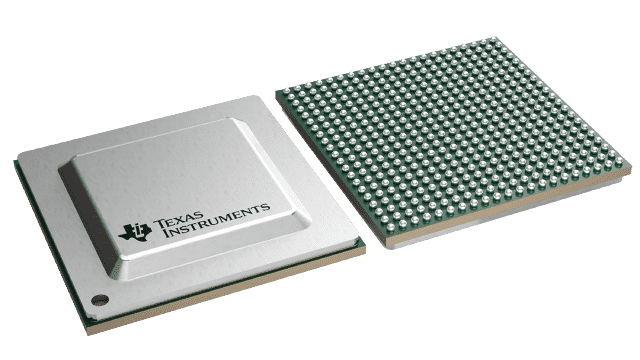

- ALV: 17.2mm × 17.2mm, 0.8mm pitch(441-pin) [Lidded] Flip-Chip Ball Grid Array(FCBGA)

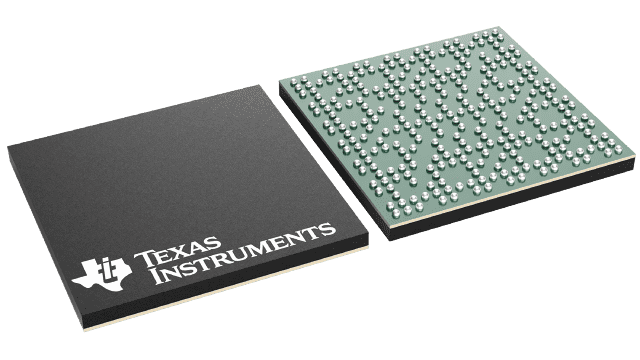

- ALX: 11.0mm × 11.0mm, 0.5mm pitch(293-pin) [Overmolded] Flip-Chip Chip Scale Package(FCCSP)
0
ACTIVE
